INLET AND EXHAUST SYSTEMS
11-4

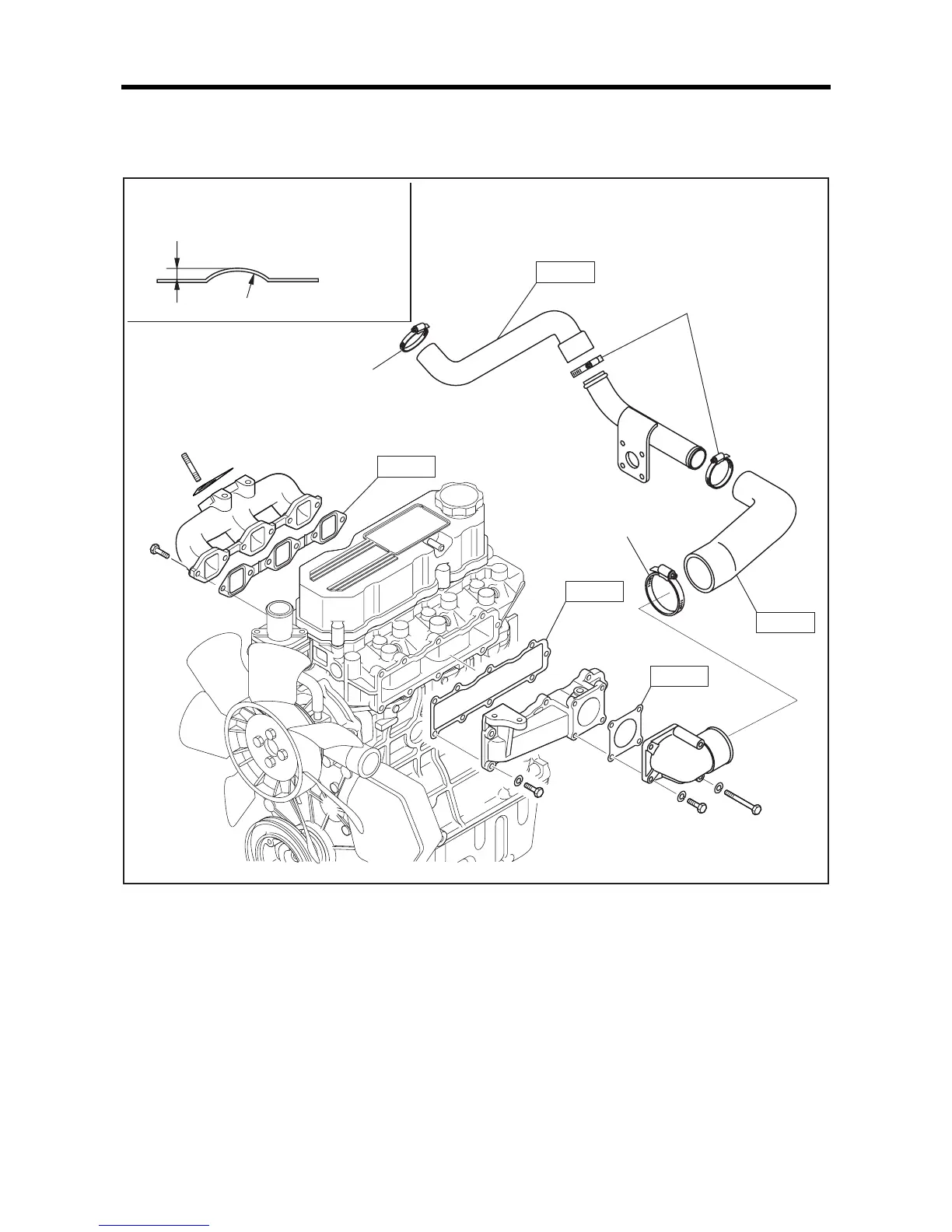

3. Installing inlet and exhaust system
Installing inlet and exhaust system
R5 mm
[0.20 in.]
Replace
Replace
Replace
Replace
Replace
The illustration is an example of S3Q2-T
Exhaust gasket installing direction
Exhaust manifold side
Cylinder head side
1 mm [0.04 in.]
6 ± 1 N·m
{0.6 ± 0.1 kgf·m}
[4 ± 0.7 lbf·ft]
7 ± 1 N·m
{0.7 ± 0.1 kgf·m}
[5 ± 0.7 lbf·ft]
7 ± 1 N·m
{0.7 ± 0.1 kgf·m}
[5 ± 0.7 lbf·ft]
