5
4
7
10
6
9
11
8
1
2
3

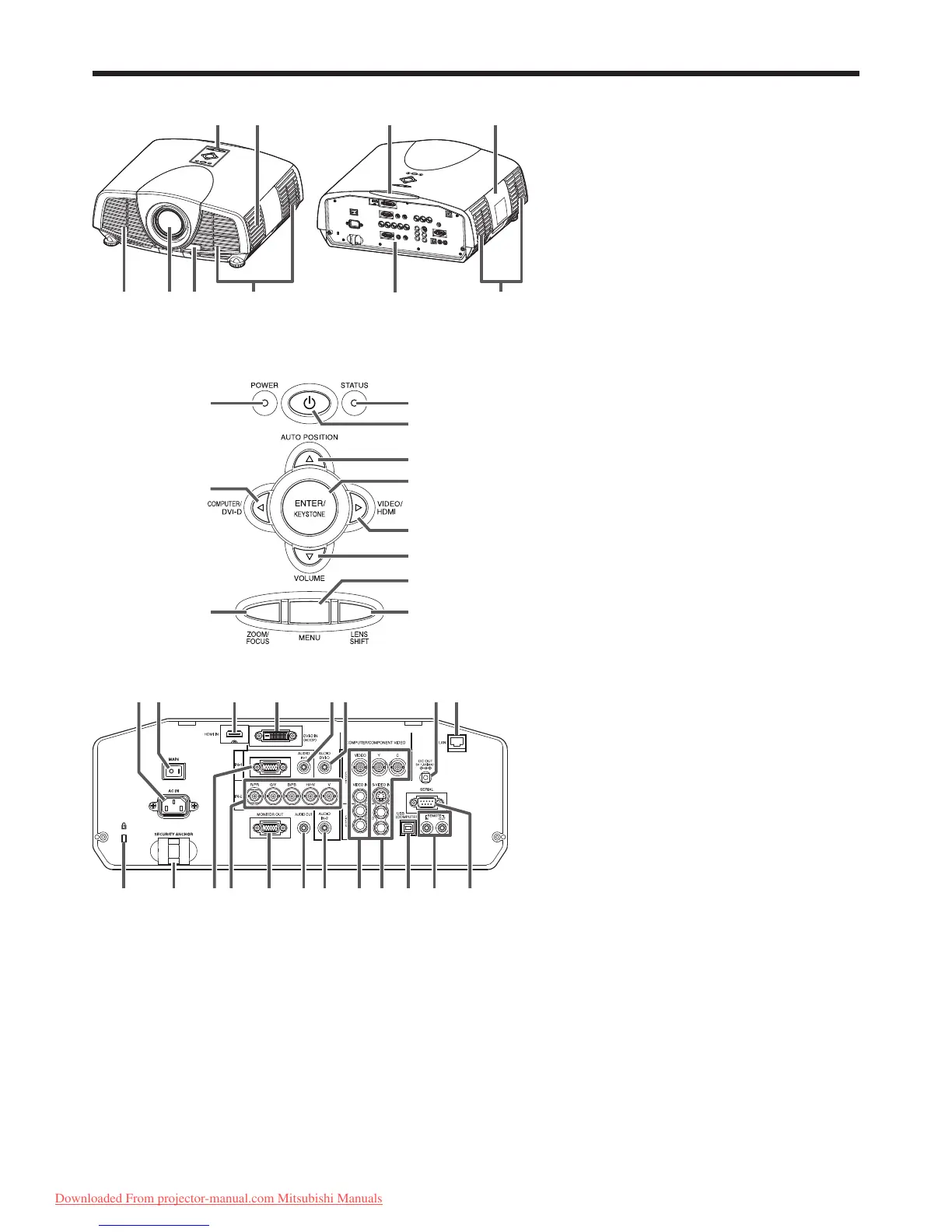

1 Control area
2 Speaker
3 Air outlet grille
4 Lens
5 Remote control sensor (front)
6 Air inlet grille
7 Remote control sensor (rear)
8 Lamp cover
9 Terminal panel
10 Air outlet grille
Caution:
Do not replace the lamp immediately after
using the projector because the lamp would
be extremely hot and it may cause burns.
Control area
1 POWER indicator
2 COMPUTER/DVI-D/W button
3 ZOOM/FOCUS button
4 STATUS indicator
5 POWER button
6 AUTO POSITION/S button
7 ENTER/KEYSTONE button
8 VIDEO/HDMI/X button
9 VOLUME/T button
10 MENU button
11 LENS SHIFT button
1 Power jack
2 Main power switch
O: OFF I: ON
3 HDMI IN terminal (HDMI 19-pin)
4 COMPUTER/COMPONENT VIDEO DVI-D
IN (HDCP) terminal (DVI-D 24-pin)
5 AUDIO IN-1 terminal (mini jack)
6 AUDIO DVI-D terminal (mini jack)
7 DC OUT terminal (5V 1.5A MAX)
8 LAN terminal
Terminal panel
Preparing your projector (continued)
9 Kensington Security Lock Standard connector
10 Lock bar (SECURITY ANCHOR)
• Attach a chain, etc. to this lock bar to anchor the projector.
11 COMPUTER/COMPONENT VIDEO IN-1 terminal (mini D-SUB 15-pin)
12 COMPUTER/COMPONENT VIDEO IN-2 terminals (R/P
R, G/Y, B/PB, H/HV, V) (BNC)
13 MONITOR OUT terminal (mini D-SUB 15-pin)
14 AUDIO OUT terminal (mini jack)
15 AUDIO IN-2 terminal (mini jack)
16 VIDEO IN and audio input terminals
17 S-VIDEO IN and audio input terminals
18 USB (COMPUTER) terminal
19 REMOTE IN and OUT terminals
20 SERIAL terminal (D-SUB 9-pin)
