CD-ROM Drive Parts and Functions
ATAPI CD-ROM

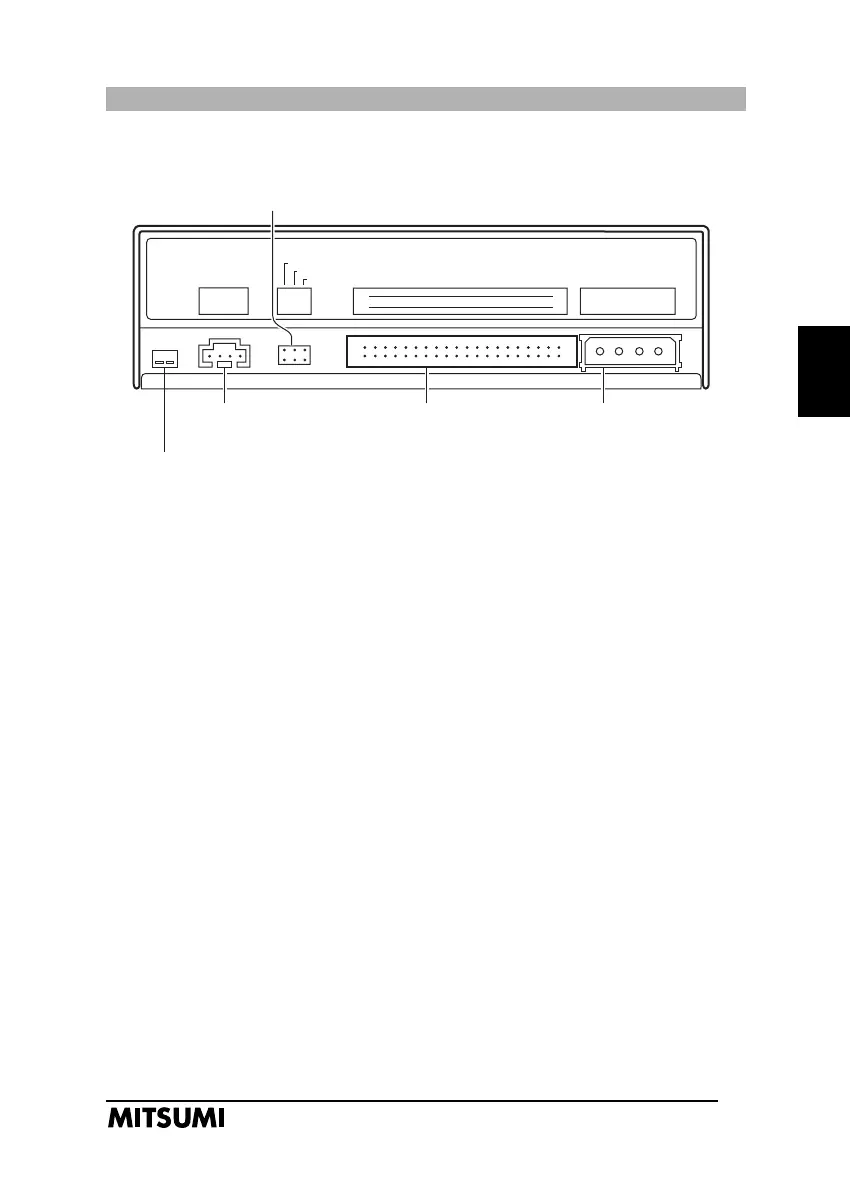

Fig. 2 Schematic rear view (depends on model)
7. Power Supply
Connection for a standard PC power supply.
8. Interface
Port for the 40-pin interface (IDE ribbon cable).
9. Line Out (analog)
Analog stereo output for right/left audio channel.
10. Device Configuration Block
Setting of these jumpers is explained in the ”Installation” chapter.
11. Digital Line Out
Digital stereo output for right/left audio channel.
AUDIO
Cable Select
Slave
Master
R G G L
C.S.M
S.L.A
IDE INTERFACE DC INPUT
39
40
1
2
5V G G 12V
10. Device Configuration Block
9. Analog 8. Interface 7. Power Supply
Line Out
11. Digital Line Out
