2 Preparations before Use
No. 99MAH054A

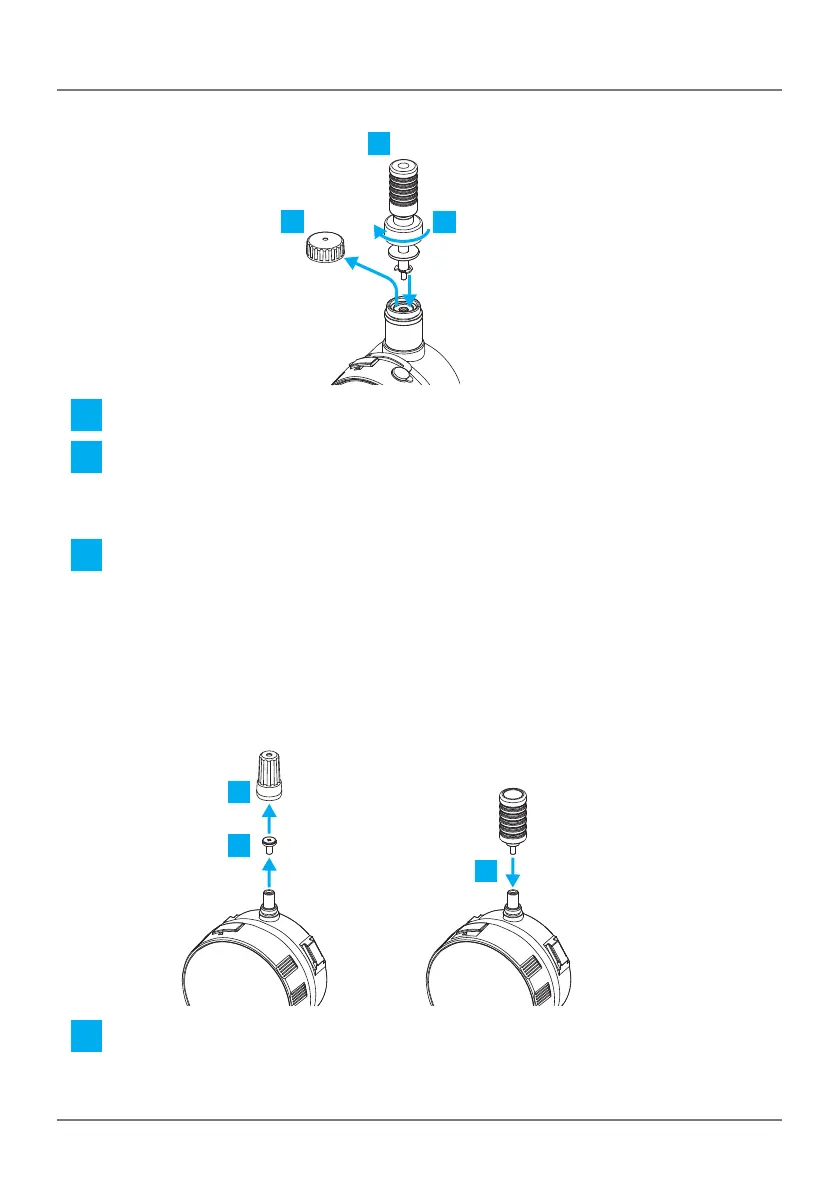

■25.4 mm / 1 in and 50.8 mm / 2 in measuring range models
2
1
3
Lifting knob
Lifting knob cap
Upper edge of bushing
This product's cap
1 Rotatethecapcounterclockwisetoremoveitfromtheproduct.
2 Fixtheplunger,usingplierspaddedwitharag,etc.,sothatitdoesnot
turn,andtheninserttheliftingknobtothescrew(M2.5)ontheupper
edge of the plunger.
3 Turnthecapontheliftingknobtoxittotheupperedgeofthebushing.
Tips
• Store the removed cap to prevent loss.
• Do not remove the ring attached under the cap, and install the cap of the lifting
knob.
■12.7 mm / 0.5 in measuring range model
3
2
1
Cap
Screw
Lifting knob
1 Rotatethecapcounterclockwisetoremoveitfromtheproduct.

Mitutoyo ABSOLUTE ID-F Specifications

General

Type	Digital Indicator
Display	LCD
Operating Temperature	0 to 40°C
Storage Temperature	-10 to 60°C
Battery Life	Approx. 20, 000 hours
Functions	Data output
Protection Level	IP42
Weight	About 150 g
Resolution	0.001 mm (0.00005 in) or 0.01 mm (0.0005 in) or 0.0001 mm (0.00001 in)
Power Supply	SR44 battery (1 pc.)
