8 Input/Output Functions
No. 99MAH054A
8.2
DIGIMATIC d1/d2 (Output)
DIGIMATIC d1/d2 output the displayed value data for the REQ signal to the
external device.

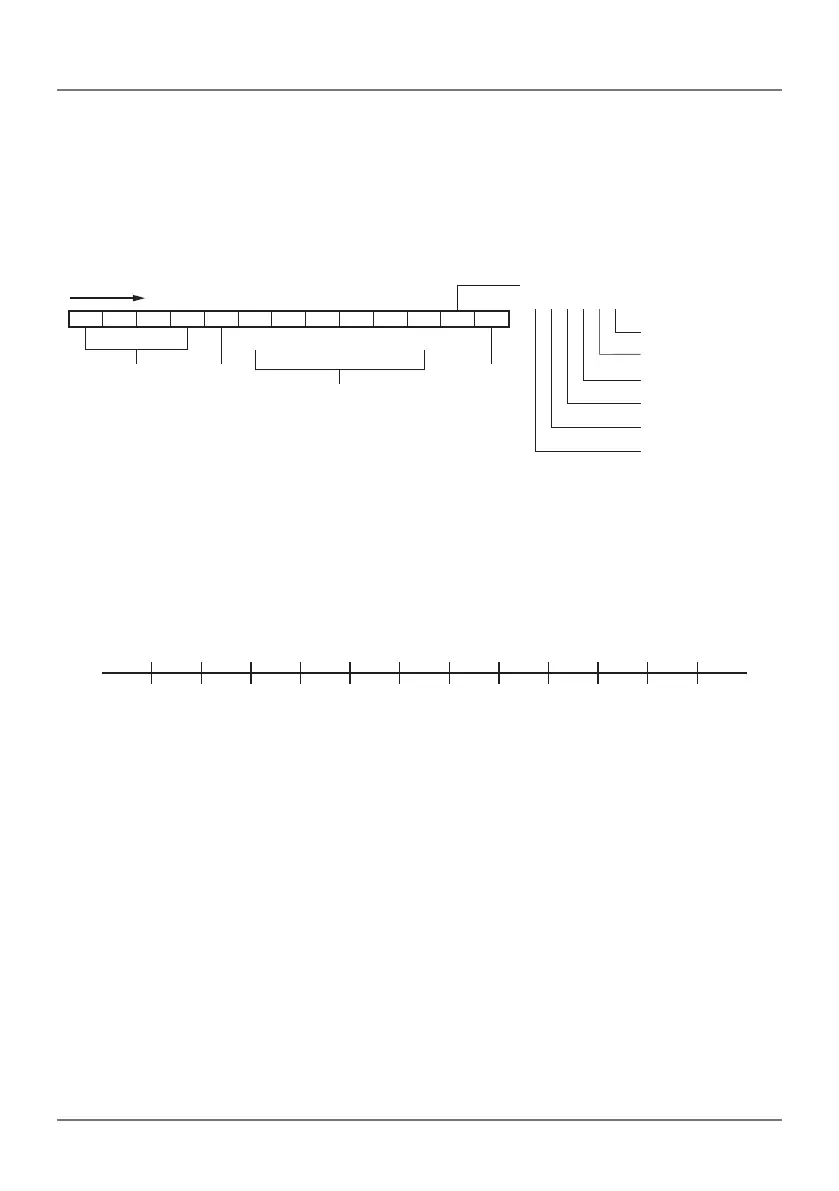

■Data format
●
DIGIMATIC d1
(5)
X.X.X.X.X.X.X.X
2 (0100)
3 (1100)
4 (0010)
5 (1010)
6 (0110)
7 (1110)
d13d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12
MSD LSD
(1)
(2) (3)
(4)
(6)
+: 0 (0000)
-: 8 (0001)
mm: 0 (0000)
inch: 1 (1000)
(1) Output order
Eachdigit:d1→d13
Each bit within one digit:
bit0→bit3
(2) All " F(1111)"
(3) Sign
(4) Measured value (6 digits)
(5) Decimal point
(6) Units
Example: 123.456 mm
1111 1111 1111 1111 0000 1000 0100 1100 0010 1010 0110 110 0 0000
F F F F + 1 2 3 4 5 6 3 mm
