Mitutoyo ABSOLUTE ID-F User Manual

79
No. 99MAH054A

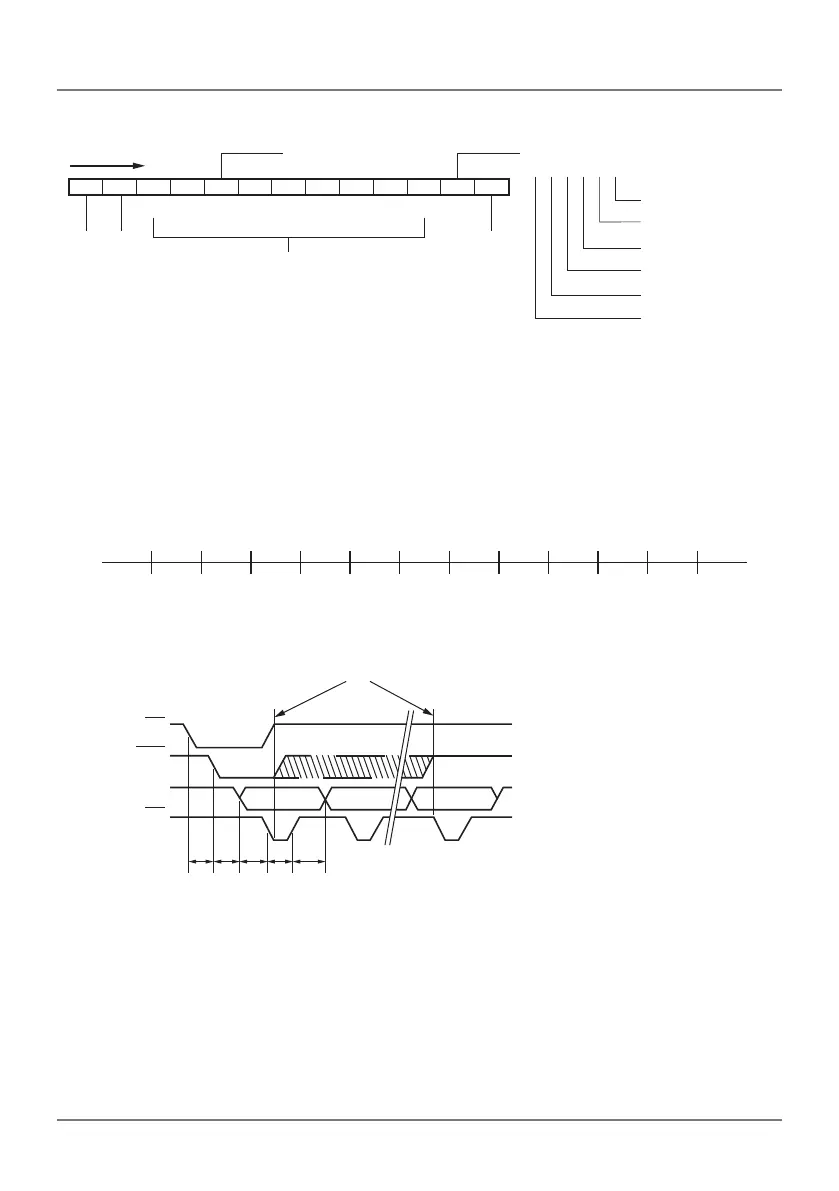

8 Input/Output Functions
●
DIGIMATIC d2
mm: 0 (0000)
inch: 1 (1000)
d13d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12
MSD LSD
(1)
(2) (3)
(5)
(4)
(7)
+: 0 (0000)
-: 8 (0001)
(6)
X.X.X.X.X.X.X.X
2 (0100)
3 (1100)
4 (0010)
5 (1010)
6 (0110)
7 (1110)
(1) Output order
Eachdigit:d1→d13
Each bit within one digit:
bit0→bit3
(2) Data format: 8 (0001)
(3) F (1111)
(4) Sign
(5) Measured value
(8 digits: d3 to d4, d6 to d11)
(6) Decimal point
(7) Units
Example: -1234.5675 mm
0001 1111 1000 0100 0001 1100 0010 1010 0110 1110 1010 0010 0000
8 F 1 2 - 3 4 5 6 7 5 4 mm
■Timing Chart
10ms≤t1<150ms
0.1ms≤t2<0.2ms
0.1ms≤t3<0.2ms
0.05ms≤t4<0.25ms
t5 depends on the device
being used.
t5 t1 t2 t3
1 bit 2 bit 52 bit
t4
CK
DATA
REQ
RD
*
* Keep REQ at Low until CK is output.
ReturnittoHighbeforethenalCKoutputiscompleted(52ndbit).
