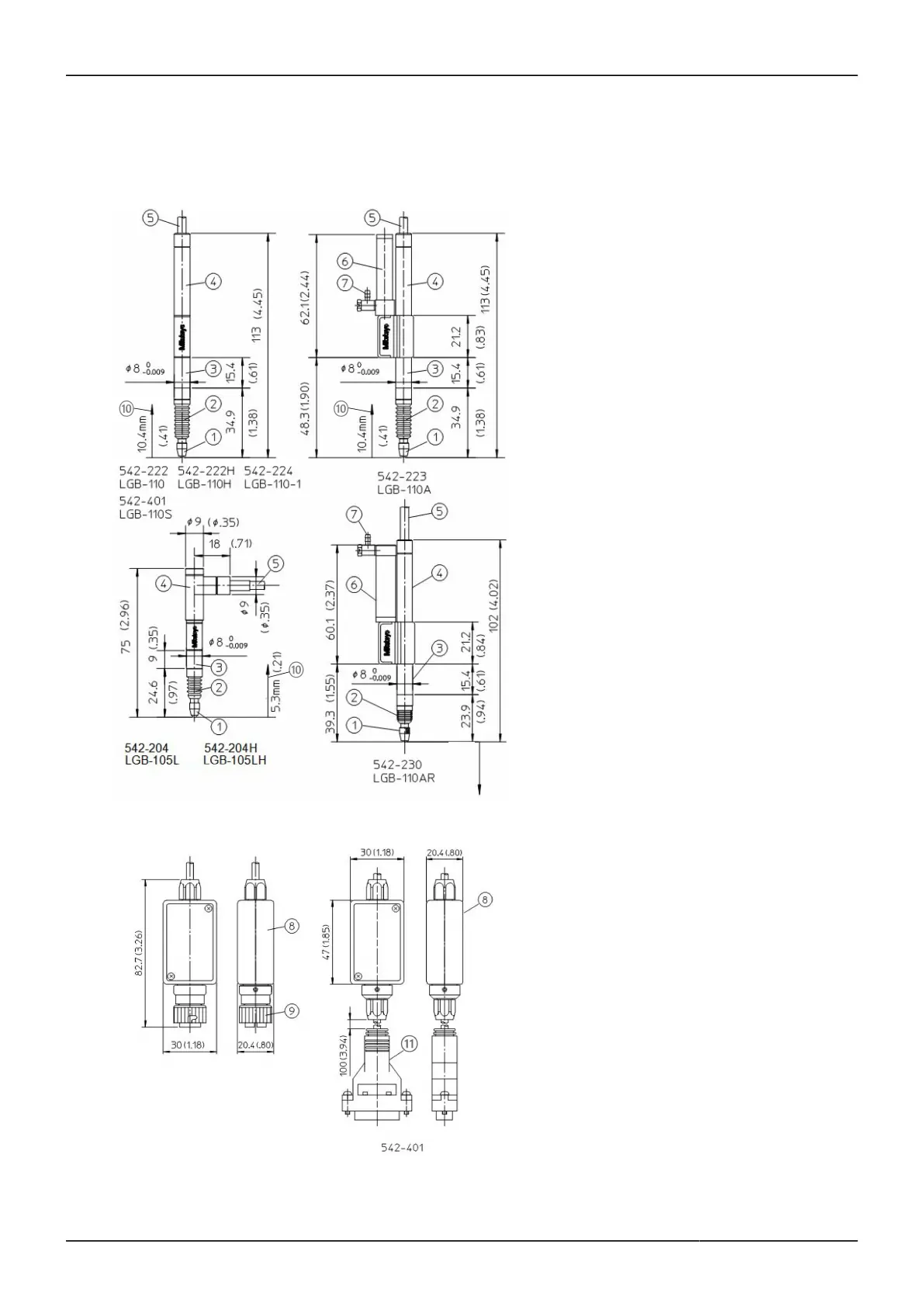

1 PART NAMES AND DIMENSIONS
1
PART NAMES AND DIMENSIONS
unit: mm (inch)
Displacement 10.5 mm or more
①
Contact point
②
Rubber boot
③
Stem
④
Body
⑤
Connecting cable
⑥
Air cylinder
⑦
Air nozzle
(for 2.5mm dia.air hose)
⑧
Preamplifier box
⑨
Output connector
(HIROSE RM12BPE-6PH)
⑩
Displacement
⑪
Output connector(D-sub)
1
No.: 4685
⑦
