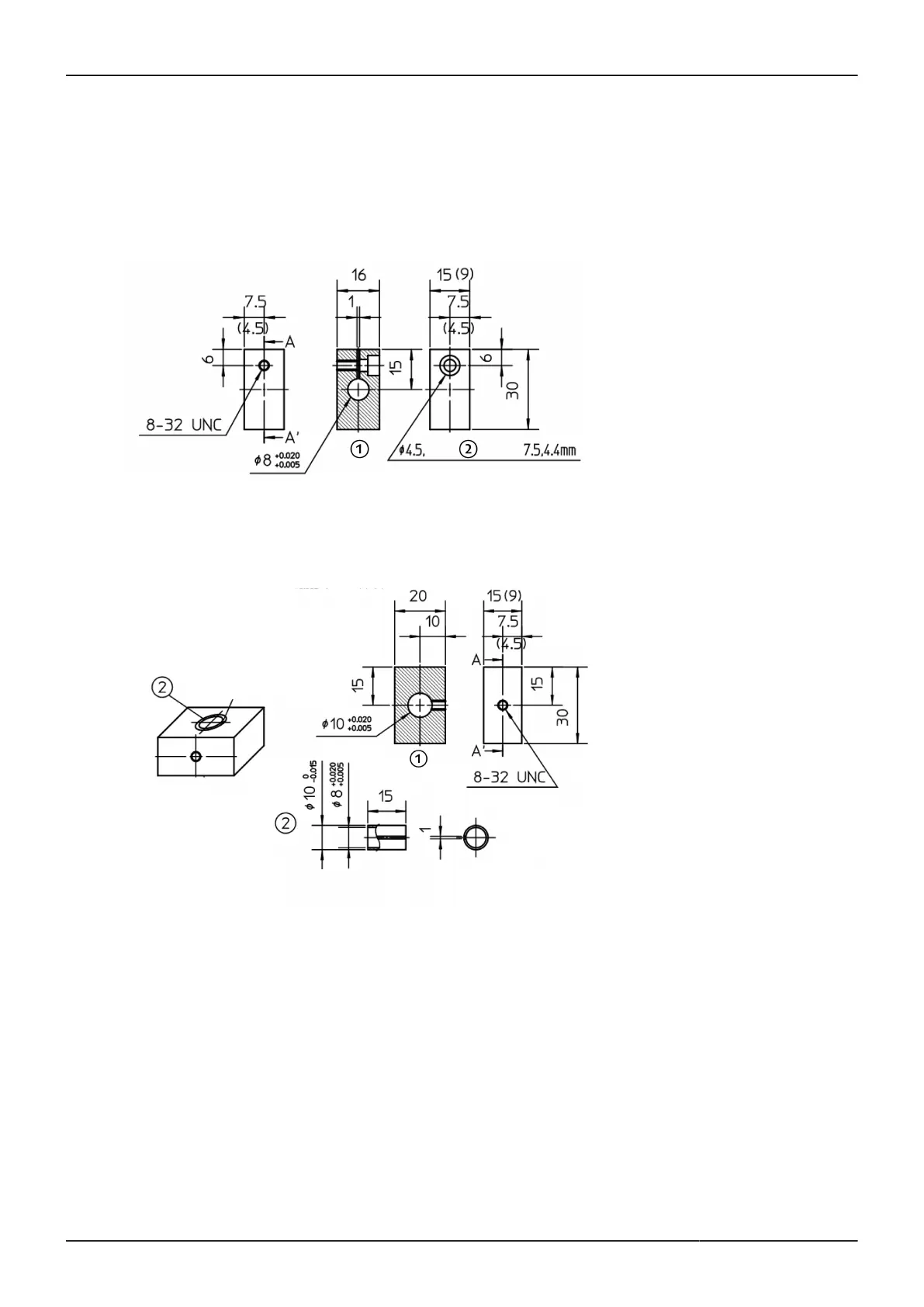

LINEAR GAGE MOUNT EXAMPLES
The recommended fastening torque is between 4.0kgf cm and 5.0kgf cm.
Example 1:
①
Section A-A
②
Countersunk
Example 2:
①
Section A-A
②
Use the supplied stem bush-
ing
The dimensions of the LGB-105L and LGB-0105L are shown in paren-
theses.
3
No.: 4685
