© MOBATIME 35 / 104 800870.05
6.5.11 NTP server
NTP can run as server or combined as server/client. To run NTP as source (NTP as
client), in the menu ’2. Configuration’ ’2. Time handling’ ’1. Time source setting'
’1. Source type' choose NTP and set at least one server. If NTP server is
configured, but NTP is not indicated as time source, NTP only runs as backup time
source (redundancy) to the actual time source.
The exact behavior of NTP time sources is described in chapter “8.5 Time acceptance
from NTP“.
Further two multicast or broadcast addresses can be configured.

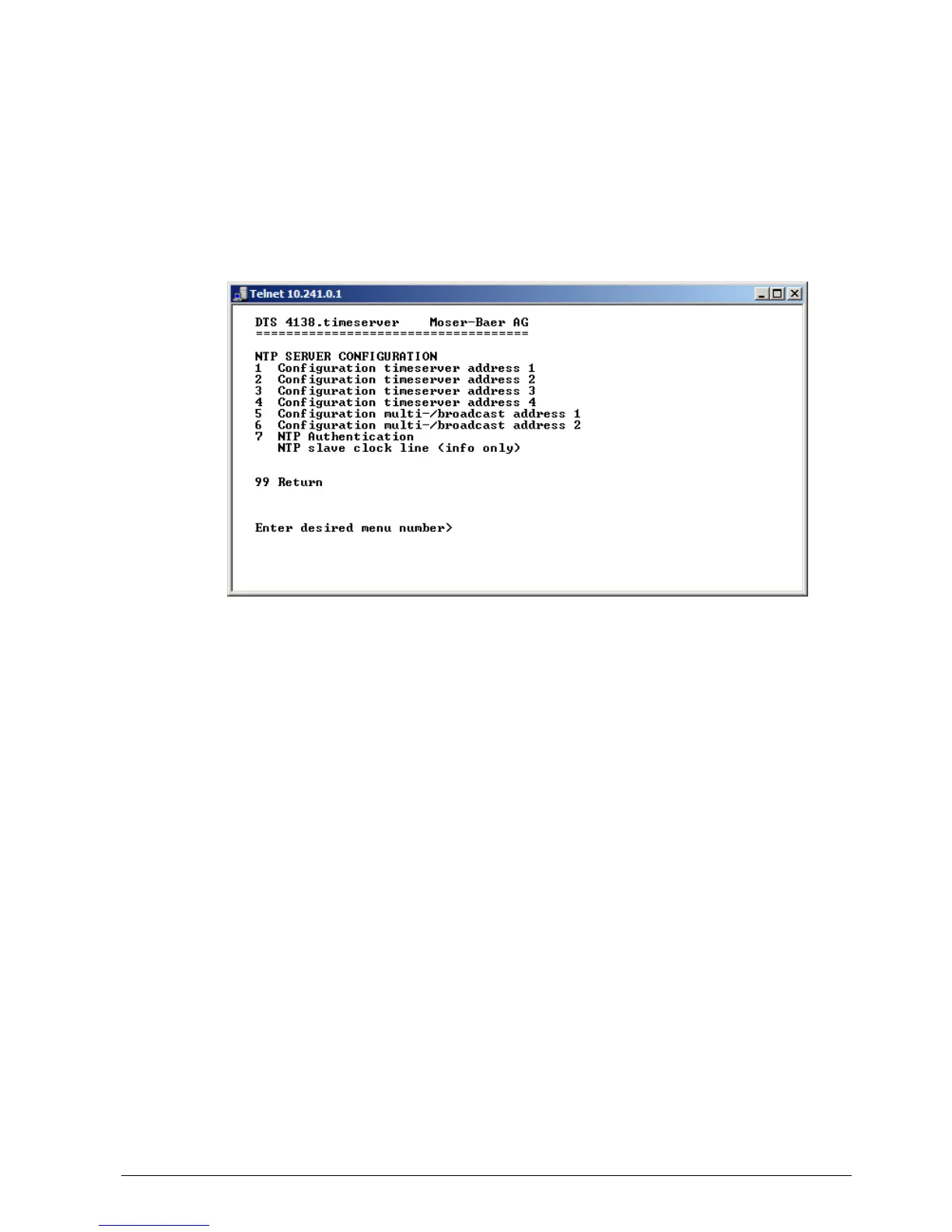

1.-4. Summary about configured NTP – time sources. Select to configure.
5.-6. Summary about configured NTP – broadcast addresses. Select to configure.
7. NTP Authentication: Changes to the menu “NTP AUTHENTICATION"
Information about a multicast – address, configured for NTP slave clocks.
