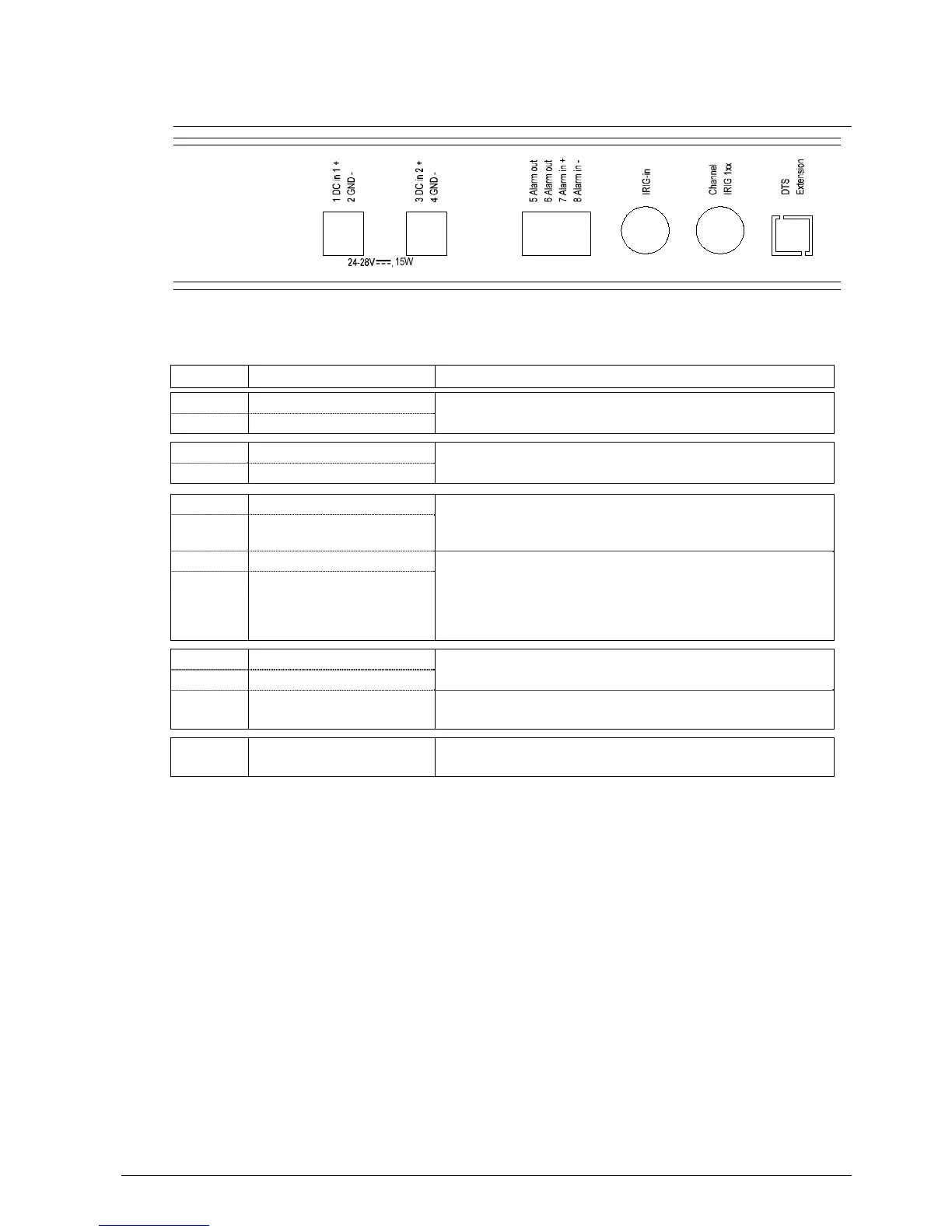

A.2 Connections (rear view)
DTS 4138 connections
For technical data, see appendix “H Technical data“.
Clamp Connection Description
1 DC in 1 power supply + Input for external DC supply
Ground
2 DC in 1 power supply GND
3 DC in 2 power supply + Input for external DC supply
Ground
4 DC in 2 power supply GND
5 Alarm relay Alarm contact, open when alarm is active
Max. load: 30 W (30 VDC or 1A)
or 60 VA (60 VAC or 1A)
6 Alarm relay
7 Alarm input + Alarm input:
18-36VDC, max. consumption 6mA DC, close contact.
Voltage level “high” (24V available) or external contact
closed  configurable: alarm or no alarm. Length of
connection max. 3m.
8 Alarm input -
IRIG-In BNC AFNOR-A/C, IRIG-B12x synchronization input
IRIG 12x
Channel 1
BNC: IRIG-B12x output
AFNOR-A/C, IRIG-B1xx and DCF-FSK output for IRIG line
1
DTS
extension
DTS extension DTS extension bus
