A Connection diagrams

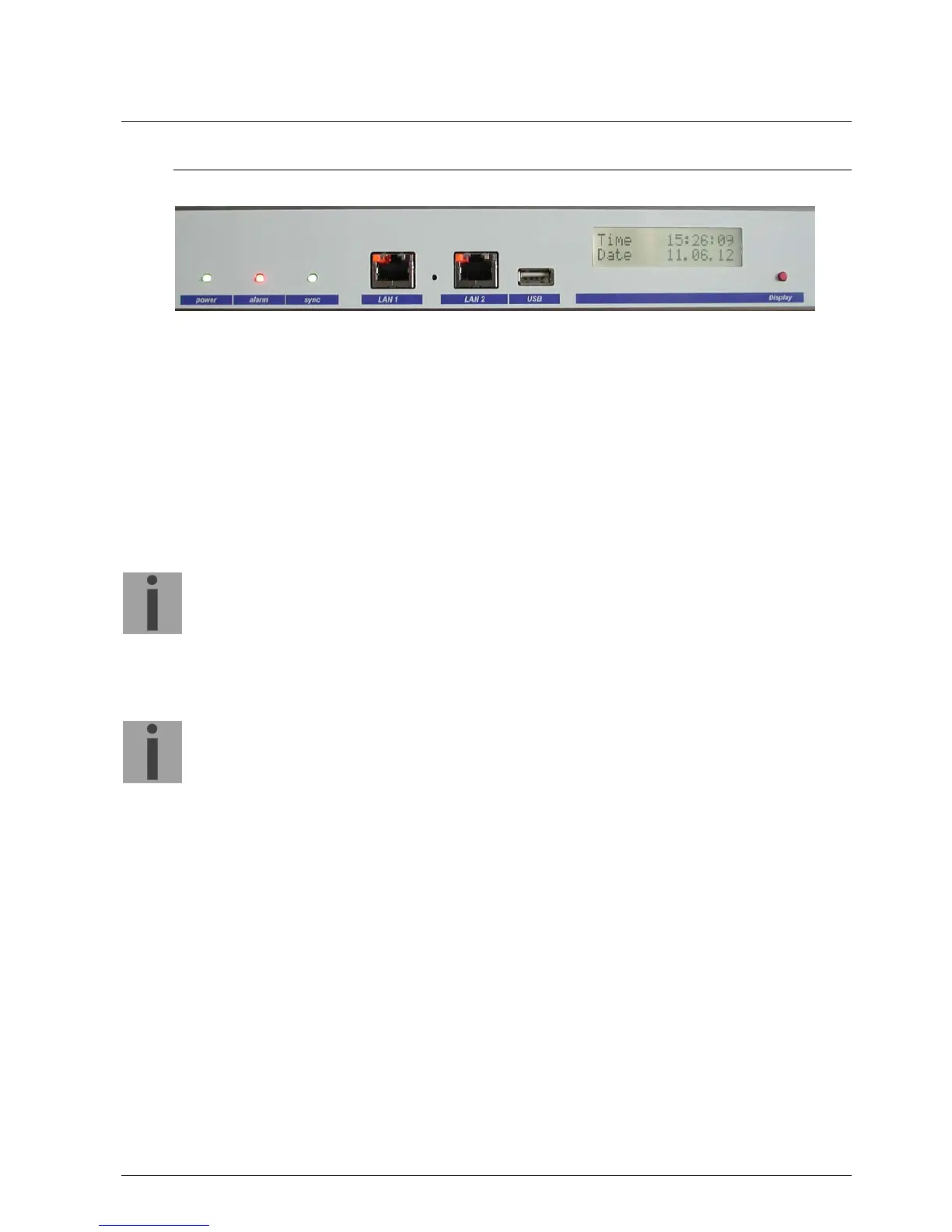

A.1 Front connections
LAN 1 connection:
Plug: RJ45
Interface: Ethernet, 10/100Mbit half- or full duplex
Use only shielded cables!
LAN 2 connection:
Plug: RJ45
Interface: Ethernet, 10/100Mbit half- or full duplex
Use only shielded cables!
Notice:
If only one LAN interface is used, it always has to be LAN 1!
USB connection:
Plug: USB host
Notice:
Only permitted for operations with a USB stick!
