Zeus200 Installation manual
V 1.0.7 - 12/10/2020 Page 22 of 28
2.6.3 Battery type selection

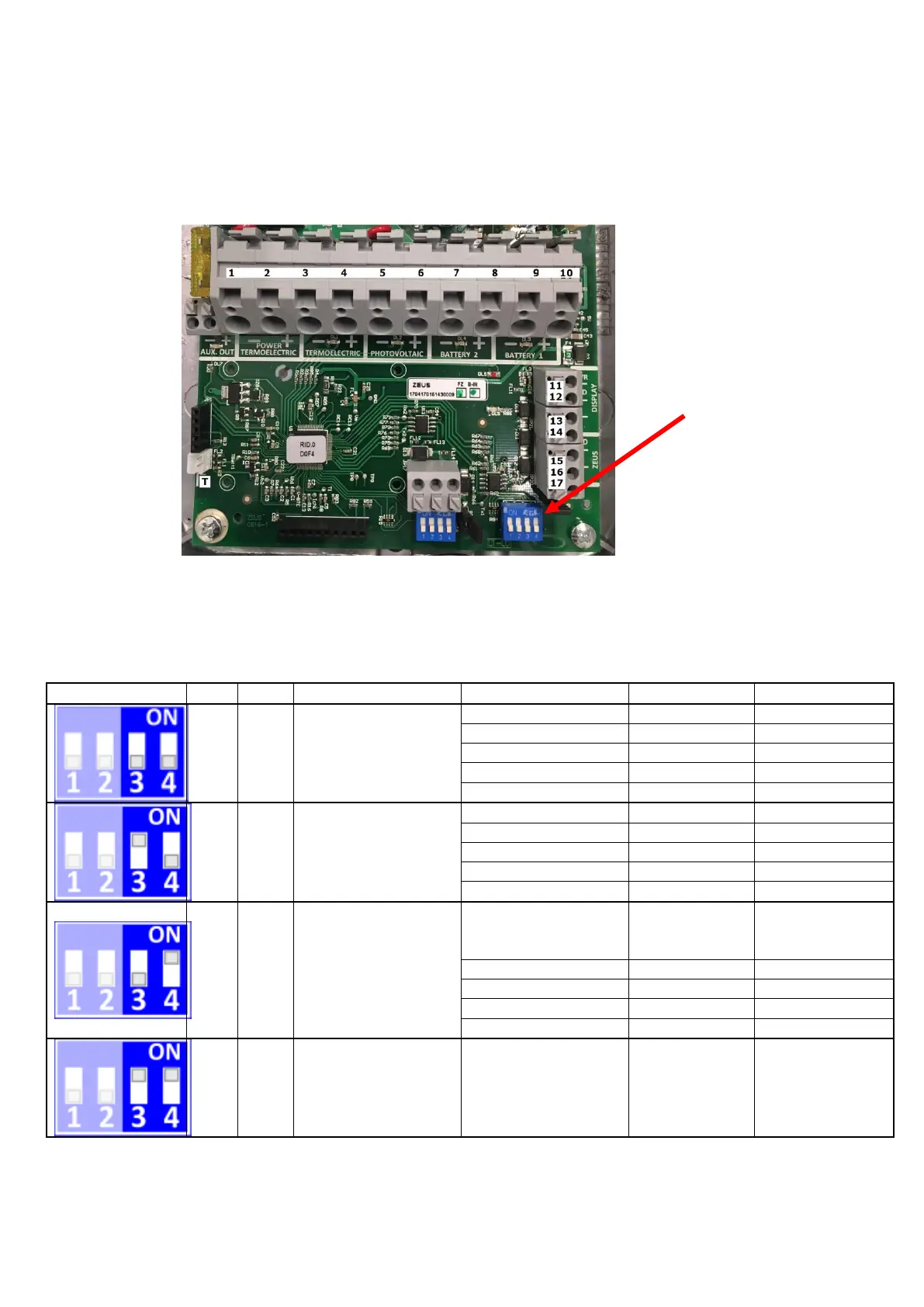

The battery type can be selected using the dip-switches in the power unit, as shown in the following
figure
The primary battery type (services) is set using the third and fourth switches, as shown in the
following table.
Position
3
4
Description
@12V
@24V
OFF
OFF
Lead
Hermetic/Agm/Gel
(SEAL) Primary
Battery
EE_VEoCBatt1=1
14,2V @25°C
28,4V@25°C
EE_VLB=7
12,2V
23,8V
EE_VELB=6
13,5V
13,5V
EE_Tabs=0
1h
1h
EE_VExitFloat=19
12.5V
25V
ON
OFF
Lead Acid Free
(FLOOD) Primary
battery
EE_VEoCBatt1=0
14,8V @25°C
29,6V@25°C
EE_VLB=7
12,2V
23,8V
EE_VELB=9
14,0V
28,0V
EE_Tabs=0
1h
1h
EE_VExitFloat=19
12.5V
25V
OFF
ON
LiFePO4 Primary
battery
EE_VEoCBatt1=6
14,2V –no
temperature
compensated
28,4V –no
temperature
compensated
EE_VLB=11
12,8V
25,1V
EE_VELB=6
13,5V
27,0V
EE_Tabs=0
1h
1h
EE_VExitFloat=23
12,9V
25,8V
ON
ON
Not allowed:
same settings as
SEAL battery
-
-
Battery type
selection
dip-switches
