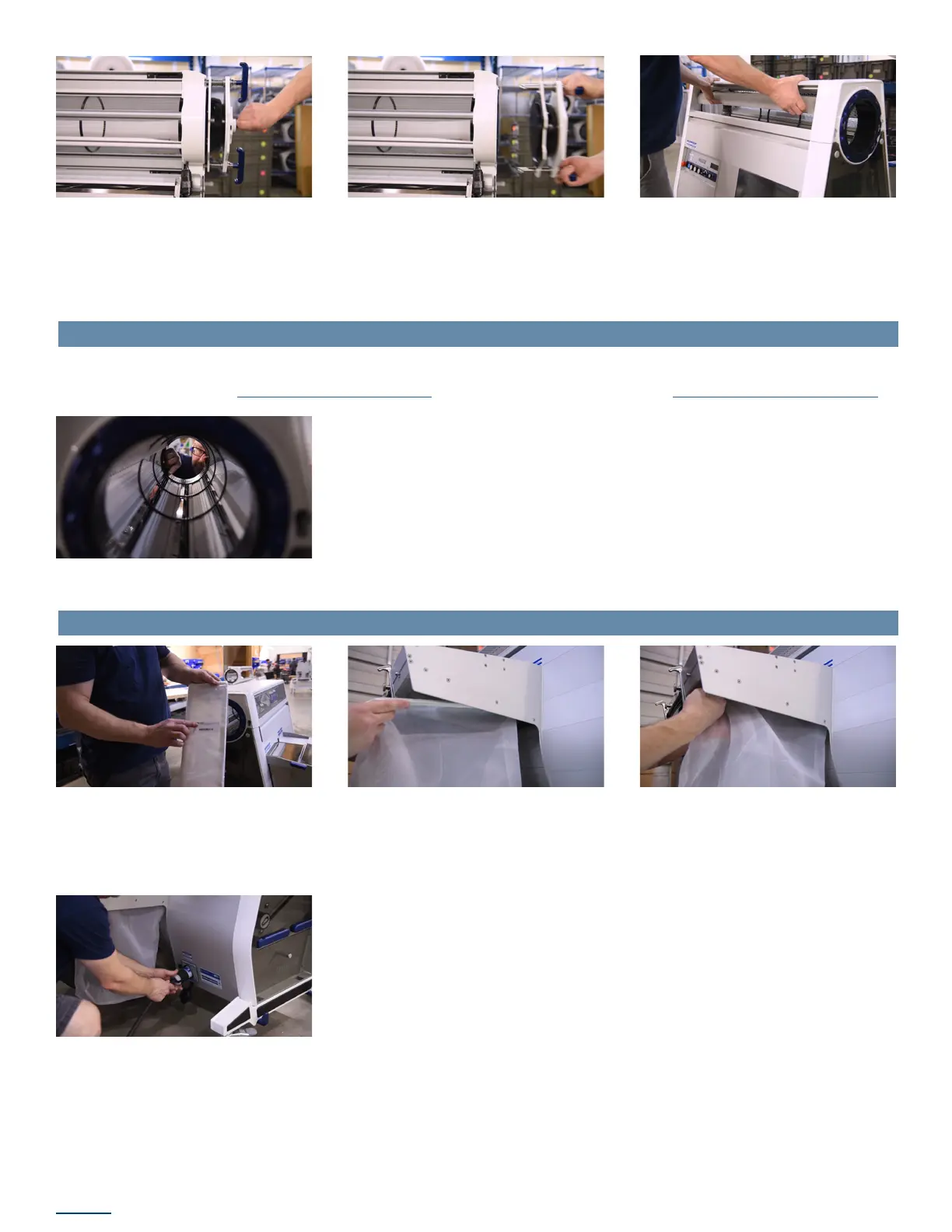

22. Turn the Spring Jack air-release valve
to the open position to release the air and
apply tension to the tumbler (cables of
the tumbler will pull tight)
25. Remove the Fan Housing Filter Bag
from its plastic sleeve.
Note: The top of the lter bag has a metal
retaining ring that ts into the fan housing
by sitting on a rail.
23. Rotate the Spring Jack handles
outwards to detach it from the lid. Inspect
the retaining rings to ensure they are in the
fully locked position. Inspect the tumbler to
ensure it is under tension and can rotate
freely and that the cables are straight.
Close the lid
26. Slide the retaining ring up into the
housing past the rail and allow it to fall
into place
24. Install the brush by pushing it into the
receptacles on either side of the lid (both
sides are identical to facilitate installation
in either orientation). Re-install the front
hex screen
27. Gently tug down on the lter bag to
ensure it is seated properly
PERFORM THE 6-POINT BLADE INSPECTION
• With the lid closed, check to ensure the gap between the tumbler wire and each
bed knife is the same
• To x a bed knife that is not properly aligned in its channel, open the lid, remove the
affected blade, and reinsert it ensuring it fully slides into place
• Close the lid and re inspect to ensure the gap between the tumbler wire and bed
knives is now consistent
The M108S is ready for safe operation when all blades are fully seated in their channel. The 6-Point Blade Inspection is conrming
proper alignment for the 3 blade cartridges on both sides of the machine. Improper alignment can cause damage to the tumbler
or blades during operation. View a video of this inspection, or follow along below. You can also download an inspection poster.
INSTALLING THE FAN HOUSING FILTER BAG
28. Pull out the rubber power receptacle cover. With the Quality Control decal on the
power cord facing up, push the plug into the receptacle on the machine and rotate
it clockwise to lock it in place
Note: When plugged in, the machine will power up and the display on the control
panel will indicate any errors detected. The lid will also glow red when there is an error.
