15
MOBIUSTRIMMER.COM
1. Place each helical blade into its housing
in the correct orientation (gear on blade
interlocks with gear on machine)
3. Place the lid hinge on the body hinge and slowly rotate the lid toward the front of the
machine in the closing motion As the lid closes, it will slide forward into the body hinge
Slowly rotate the lid toward the open position and the lid will lock in the rest of the way.
5. The fan housing ts into the body by resting on 2 pegs. Holes in the fan housing correspond to the pegs on the body. Align the holes
to the pegs and slide the fan housing into place. Ensure the housing sits ush against the body to allow the separator to t without
binding against it.
6. Note: The separator mates to the machine resting on a guide rail inside the frame. Grip the separator from the opening and the
rear (trim tote side) of the housing. Align the separator so it is above the rail on the machine and push it in along the rail. When the
weight of the separator is carried by the rail, let go of the opening and slide it the rest of the way into the machine.
4. Reconnect the lid wire to the M108S
body. Close the lid.
Note: Gloves should be worn when handling the helical blades and any sharp objects
Note: The helical blade must be placed in the machine in the correct orientation. One side of each helical blade has a gear that
corresponds to a gear on the outfeed side of the machine.

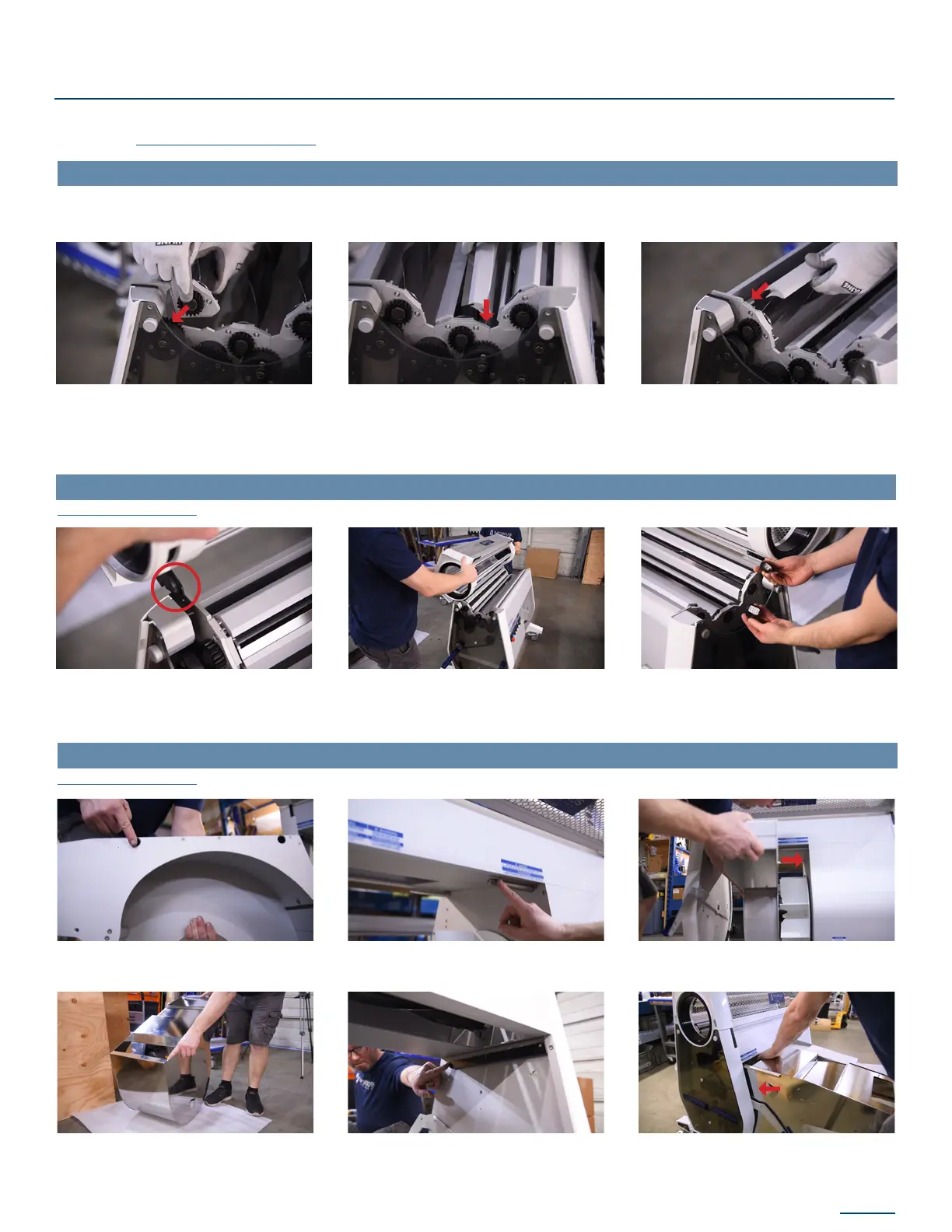

INSERTING THE BLADE CARTRIDGES
Once the machine has been removed from the base, you can start to reassemble it to get ready for
trimming. View the video online, or follow along below. Please do so in the following order:
REASSEMBLY
2. Note: The spacer bar sits on the far side of the helical blade, and the bed knife sits
on the near side. Spacer bars and bed knives must be placed into the machine in the
correct orientation. Each has a pin on one side that corresponds with the outfeed side
(gear side) of the machine. Slide each bed knife and spacer bar into place around
the helical blades
INSTALLING THE LID
INSTALLING THE FAN HOUSING AND SEPARATOR
View the video online, or follow along below. Please do so in the following order:
View the video online, or follow along below. Please do so in the following order:
