10. With the lid in the closed position,
remove the front screen by sliding the
left latch on the underside of the lid to
the right while pulling the left side of the
screen out
13. Lock the casters and open the lid.
Note: One side of the tumbler end cap has
a small black plastic ‘tab’ that corresponds
to a groove on the infeed side of the lid.
The other side is smooth.
16. Unpack the Spring Jack Tool and insert
the handlebars into the receptacles on
the infeed side of the lid
19. Attach an air hose to the Schrader
valve on the Spring Jack and pressurize
to 80 PSI.
Note 1: A hand-pump is supplied with
the Spring Jack, but compressed air
can also be used.
Note 2: Do not over inate the Spring
Jack. 100 PSI or more can damage the
unit
20. Lock on the outfeed tumbler
retaining ring on the opposite side of
the lid from the Spring Jack tool. The
recommended procedure is to grip the
inside of the tumbler with your ngers,
pull it forward, and rotate the retaining
ring with your thumbs. An improperly
installed tumbler retaining ring can result in
operator injury or damage to the tumbler.
21. Straighten the tumbler cables as much
as possible
11. Remove the brush by pulling it out of
its holders and set it aside
14. Insert the smooth side into the infeed
side of the lid. Slide the tumbler through
the lid making sure the plastic tab lines
up with the groove.
17. Leaning in with your weight, turn the
handles inward to lock the Spring Jack
in place
12. Remove the tumbler from the box and
take it out of the bag. Retain the bag for
storage if there will be long periods of time
between trim sessions)
15. On the infeed side of the machine,
attach the blue tumbler retaining ring
by sliding over the edge of the tumbler
endcap and twisting it counter clockwise
to the lock position. Note: If silver is visible
on the tabs of the tumbler retaining ring,
it is not in the locked position
18. Turn the air-release valve on the Spring
Jack to the closed position (the handles
and the air-release valve should be in a
straight line)
View a video of this installation, or follow along below:

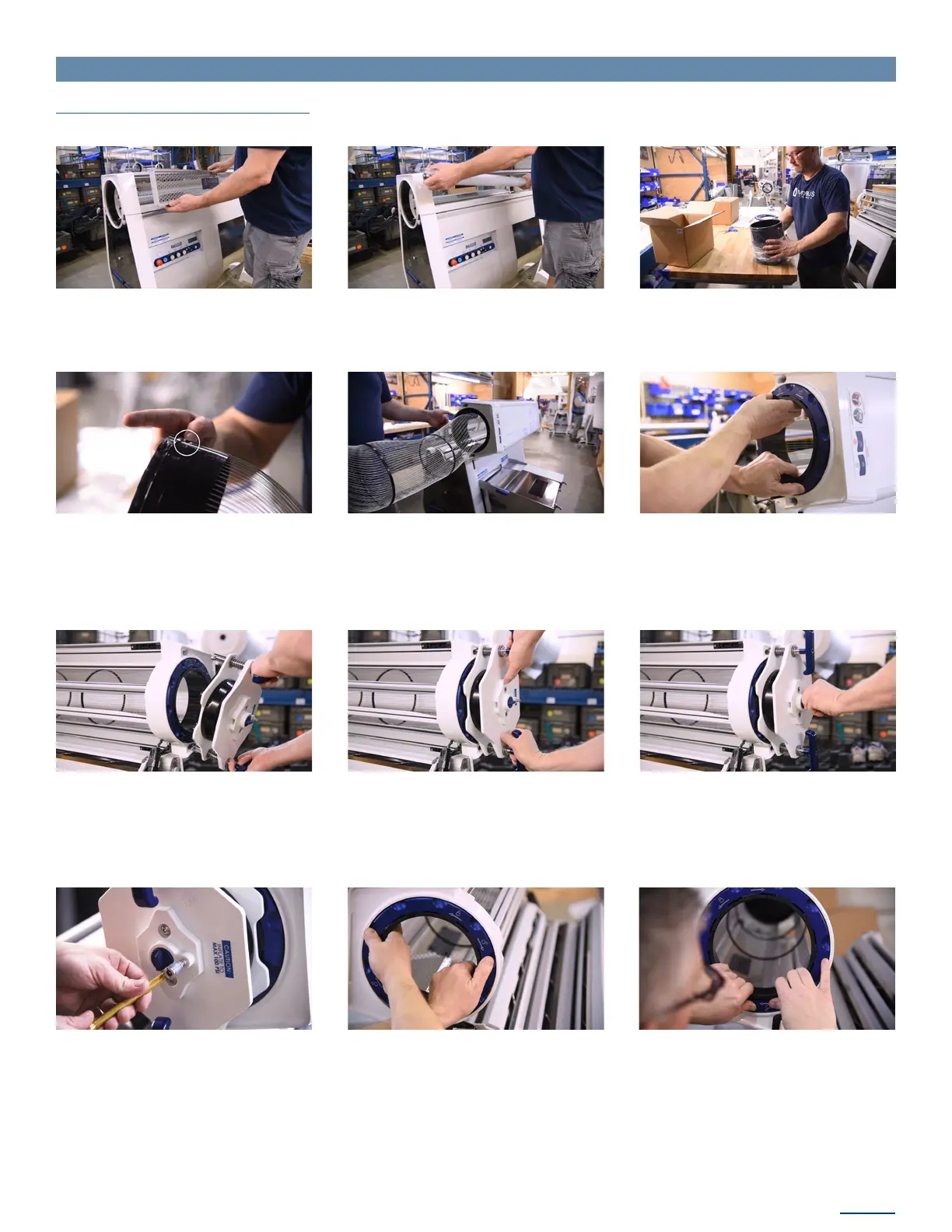

INSTALLING THE AIRTHREAD TENSION TUMBLER
