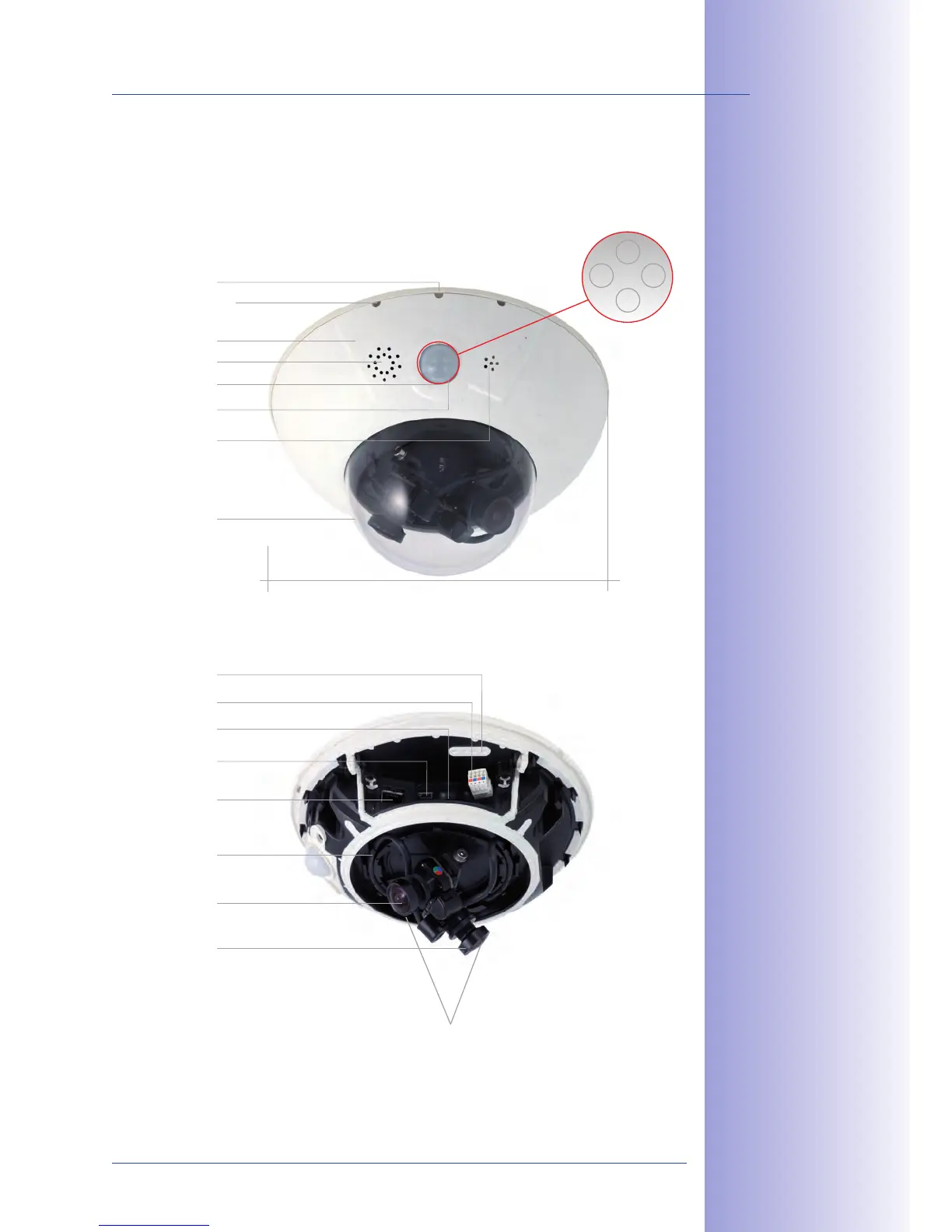

D14D Camera Housing And Connectors
The MOBOTIX D14D consists of three main components (camera housing, body shell and
dome). The D14D is also delivered with PIR sensor, microphone and speaker.
4 2
3
1
4 LEDs (behind
PIR cover)
Speaker
Dome
PIR sensor
Lens unit I
Lens unit II
Sensor cable
MicroSD card
MxBus
MxBus cabling
Mini USB
Ethernet
Washer
Water outlet
openings
Outer shell
Microphone
LED defaults:
1 Power (on), error (ashes)
2 Recording (ashes)
3 Off
4 Off
Two freely positionable camera modules
Ø 205 mm
108 mm
