Mobotix D14D - Delivered with the D14 D-Sec-Dnight-Fix

40/132
D14D Camera Manual: Product Overview
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
1.6.3 Delivered With The D14D-Sec-DNight-Fix

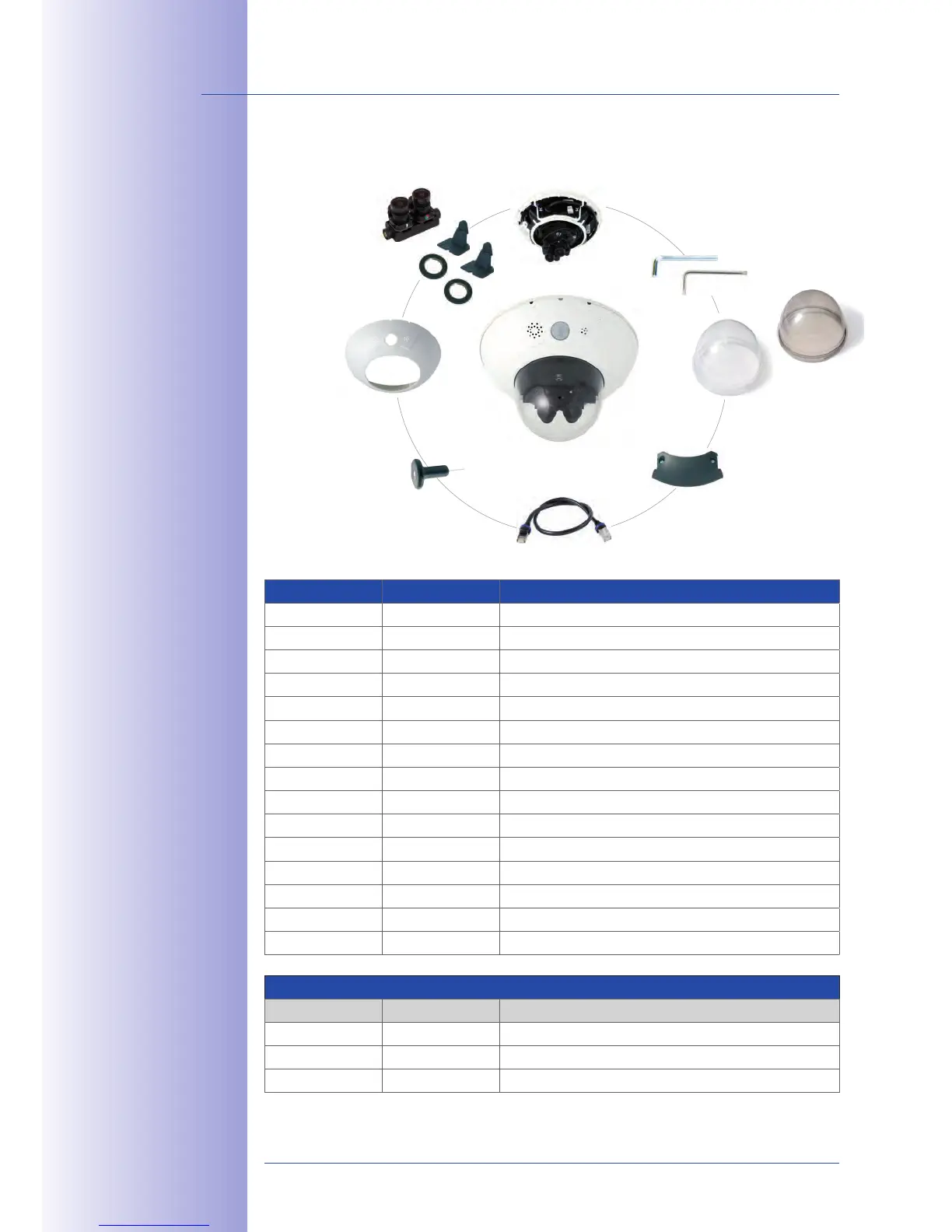

Item Number Part name
2.1 1 Camera housing
2.2 2 Lens (installed)
2.3 2 Lens mount (installed)
2.4 2 Lock ring (installed)
2.5 2 Sensor cable (integrated, not shown here)
2.6 1 Cable cover (installed)
2.7 2 XL Dome (1x transparent – integrated, 1x tinted)
2.8 1 Outer shell
2.9 1 Ethernet cable
2.10 1 Allen wrench 3 mm
2.11 1 TX20 Torx wrench
2.12 1 Custom tool with magnet
2.13 1 MxBus connector (inserted):
2.14 1 Lens bridge (installed)
2.15 1 MicroSD card, max. of 4 GB (inserted)
Installation accessories
Item Number Part name
M.2.1 3 Dowels 8 mm
M.2.2 3 Stainless steel washers Ø 5,3 mm
M.2.3 3 Stainless steel wood 4.5x60 mm screws with TX20 head
Custom tool
with magnet (item 2.12)
Outer shell (item 2.8)
3 mm Allen wrench (item 2.10)
TX20 Torx wrench (item 2.11)
Camera housing (item 2.1)
XL dome (item 2.7),
one transparent,
one tinted
Cable cover (item 2.6)
Ethernet cable (item 2.9)
2 lenses (item 2.2)
2 lens mounts (item 2.3)
1 lens bridge (item 2.14)
2 lock rings (item 2.4)
