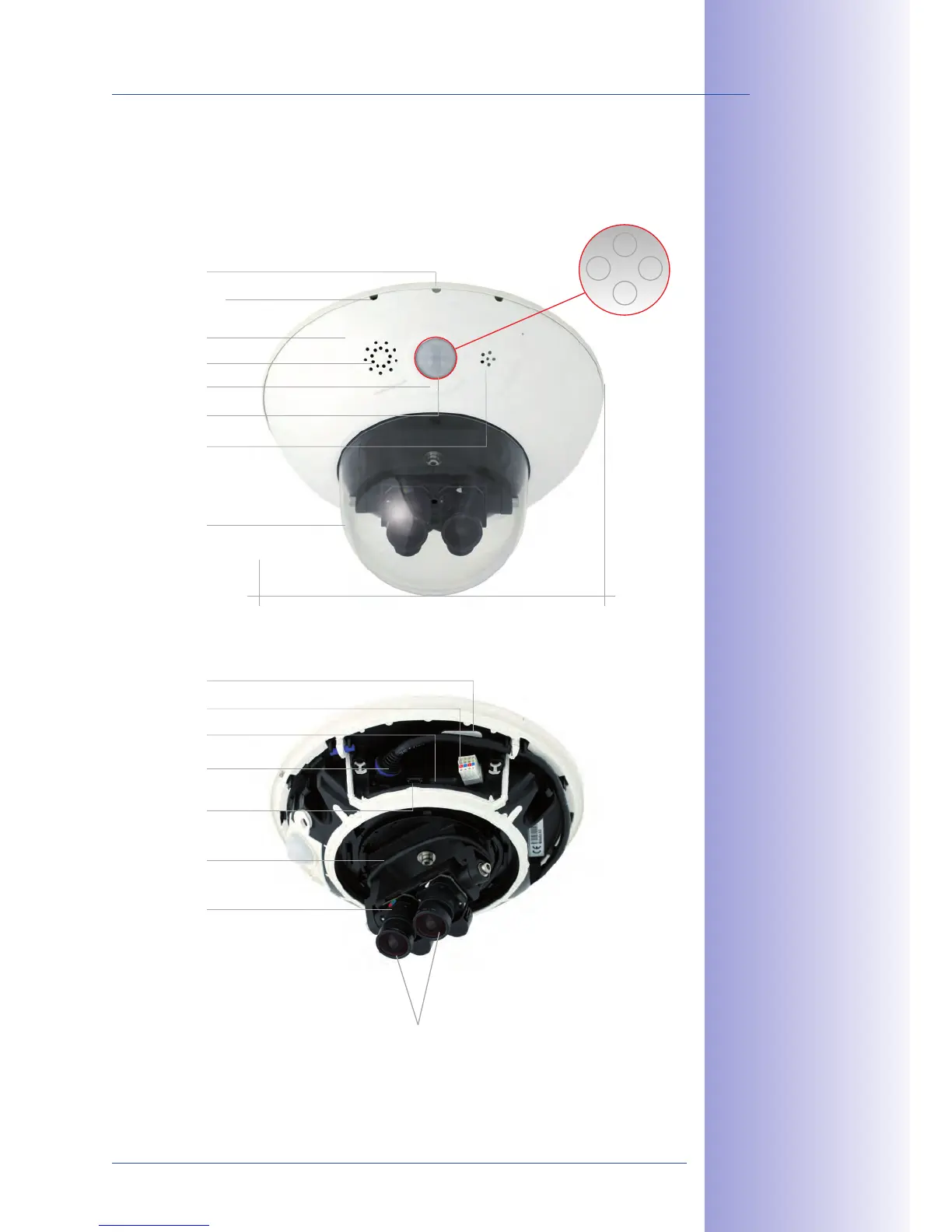

D14D-Sec-DNight-Fix – Camera Housing and Connectors
The MOBOTIX D14D-Sec-DNight-Fix consists of three main components (camera housing,
body shell and dome). The D14D is also delivered with PIR sensor, microphone and speaker.
4 2
3
1
4 LEDs
(behind PIR cover)
Speaker
XL dome
PIR-Sensor
Lens bridge
Sensor cable
MicroSD Card
MxBus
MxBus cabling
Mini USB
Ethernet
Washer
Water outlet
openings
Outer shell
Microphone
Two pre-installed lenses (L22 to 135)
Ø 205 mm
125 mm
LED defaults:
1 Power (on), error (ashes)
2 Recording (ashes)
3 Off
4 Off
