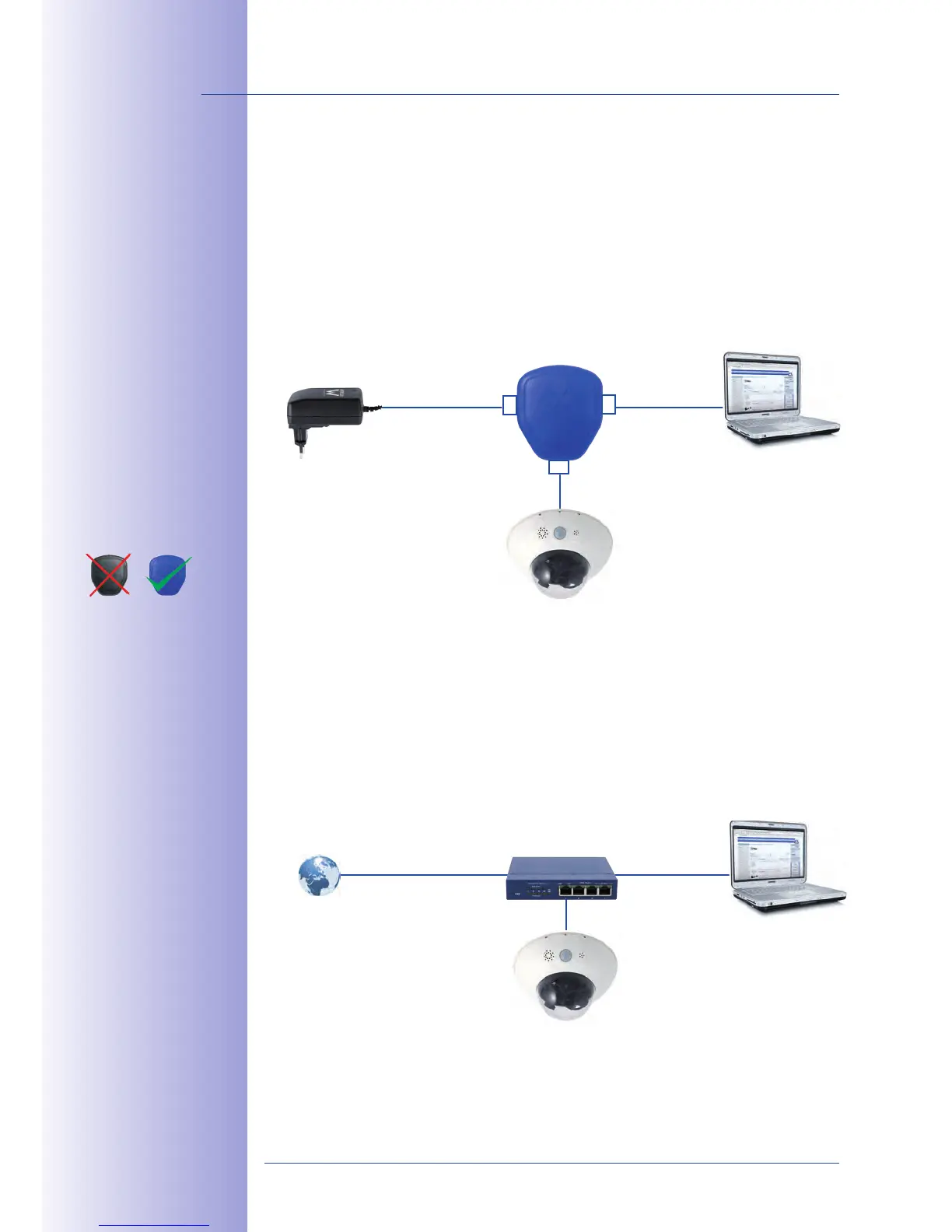

2.7.4 Power Supply When Connected Directly To A Computer
1. Connect the factory pre-installed cable of the camera to the Camera connector of
the PoE adapter.
2. Connect the PC/Power connector of the PoE adapter to the Ethernet port of the
computer.
3. Plug the RJ45 connector of the power supply unit into the LAN/Power connector
of the PoE adapter.
2.7.5 Power Supply With Power-Over-Ethernet Products
Connect the factory pre-installed cable of the camera to the Ethernet connector of the
PoE switch/router. The switch/router must support the PoE standards IEEE 802.3af or IEEE
802.3at.
For the D14D,
you should use the blue
MX-NPA-PoE Set –
previous MOBOTIX
network power
accessories such as the
NPA Set, Power Box,
and Power Rack
(MX-NPA-Set,
MX-NPR-4 and
MX-NPR8/20) are
not suitable for use
with the D14D
The IP addresses in
the diagram are shown
only as an example
PoE Adapter
(MX-NPA-PoE)
Power supply
PC
(10.8.0.11/255.0.0.0)
Camera
(10.8.0.99)
LAN/Power
PC/Power
Camera
RJ45
RJ45
RJ45
PC
(10.8.0.11/255.0.0.0)
Camera
(10.8.0.99)
PoE/PoE+
switch/router
LAN/www
The IP addresses in
the diagram are shown
only as an example
