Standard delivery
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Ø 205 mm
125 mm

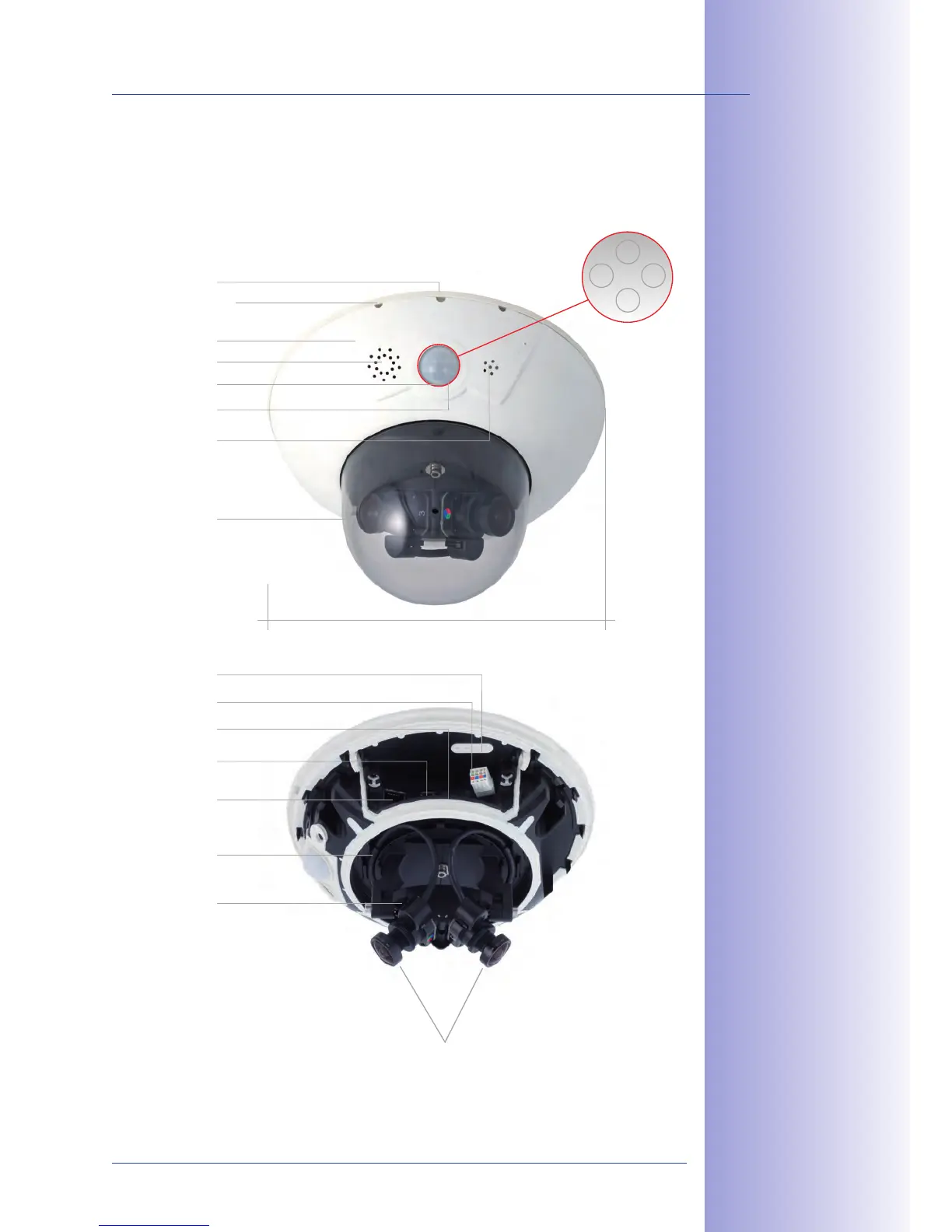

D14D-180° – Camera Housing And Connectors
The MOBOTIX D14D-180° consists of three main components (camera housing, body shell
and dome). The D14D is also delivered with PIR sensor, microphone and speaker.
4 2
3
1
4 LEDs
(behind PIR cover)
Speaker
Dome
PIR sensor
Lens bridge
Sensor cable
MicroSD card
MxBus
MxBus cabling
Mini USB
Ethernet
Washer
Water outlet
openings
Outer shell
Microphone
LED defaults:
1 Power (on), error (ashes)
2 Recording (ashes)
3 Off
4 Off
125 mm
Two fixed 90° lenses (180°)
