2.2 Camera Housing and Connectors
The MOBOTIX M12 camera housing is made of fiber-reinforced plastic (PBT-30GF,
Polybutyleneterephtalate with 30% fiberglass). This material is used heavily in
the automotive industry and is sturdy, resistant against high temperatures, environ-
mental influences, chemicals, etc.
2.2.1 External Sensors
• PIR sensor
• Microphone
• IR remote control
2.2.2 Connectors
• NET/10BaseT (Ethernet network) / power supply
• In/Out / RS232 / MX Interface Connector D Sub 15 HD
•ISDN
• Slot for SD card
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
25/92
M12 Camera Manual Part 1
Ultraviolet resistant: No
yellowing of housing even
after years of outdoor
use

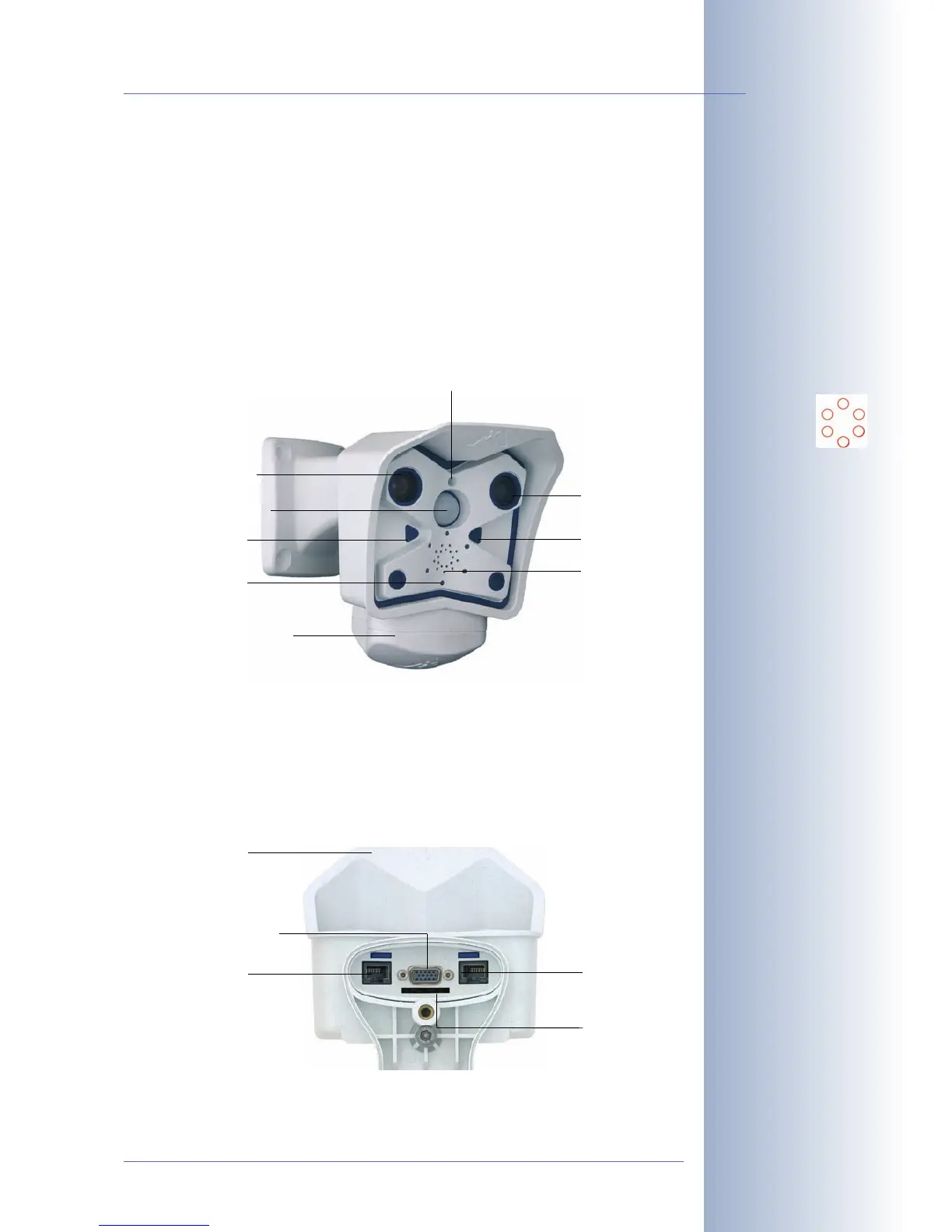

MX Interface Connector
for attaching Cam-IO or
external sensors, audio
amplifiers, etc.
"Right" lens
"Left" lens
Passive IR
motion detector
"R" key
6 LEDs
"L" key
Speaker
Microphone
Rain and sun
protection
ISDN
MX Interface Con-
nector D Sub 15 HD
Ethernet (LAN)/
power supply
SD card slot
SecureFlex wall mount
Signals of the
camera LEDs:
0 On
1 Camera
2 Ethernet
3 Operating Mode
4 ISDN/VoIP
5 Camera
1
2
0
5
3
4
