1.2 Technical Specifications
1.2.1 M15 Lens Options
Since MOBOTIX cameras are backlight-proof, none of these lenses requires a mechanical
auto iris, thus making the camera extremely robust and maintenance-free.
The M15 can take one or two optical sensor modules as required. The sensor modules
are available with 6MP or 5MP image sensors, resulting in dierences in the lenses’
angles of view:
Designation of Sensor Modules
Since the angles of view for the same lens change depending on the image sensor used
(6MP or 5MP, see above), the lenses have dierent focal lengths (35mm equiv.) and thus
two designations. For example, a Super-Wide-Angle lens with a nominal focal length of
3.6mm has these 35mm focal lengths and designations:
• With
6MP image sensor: 20mm focal length (35mm equiv.) ➝ L20
• With 5MP image sensor: 23mm focal length (35mm equiv.) ➝ L23
When showing the dierent types of sensor modules, these designations are combined:
L20-L23 (see below).

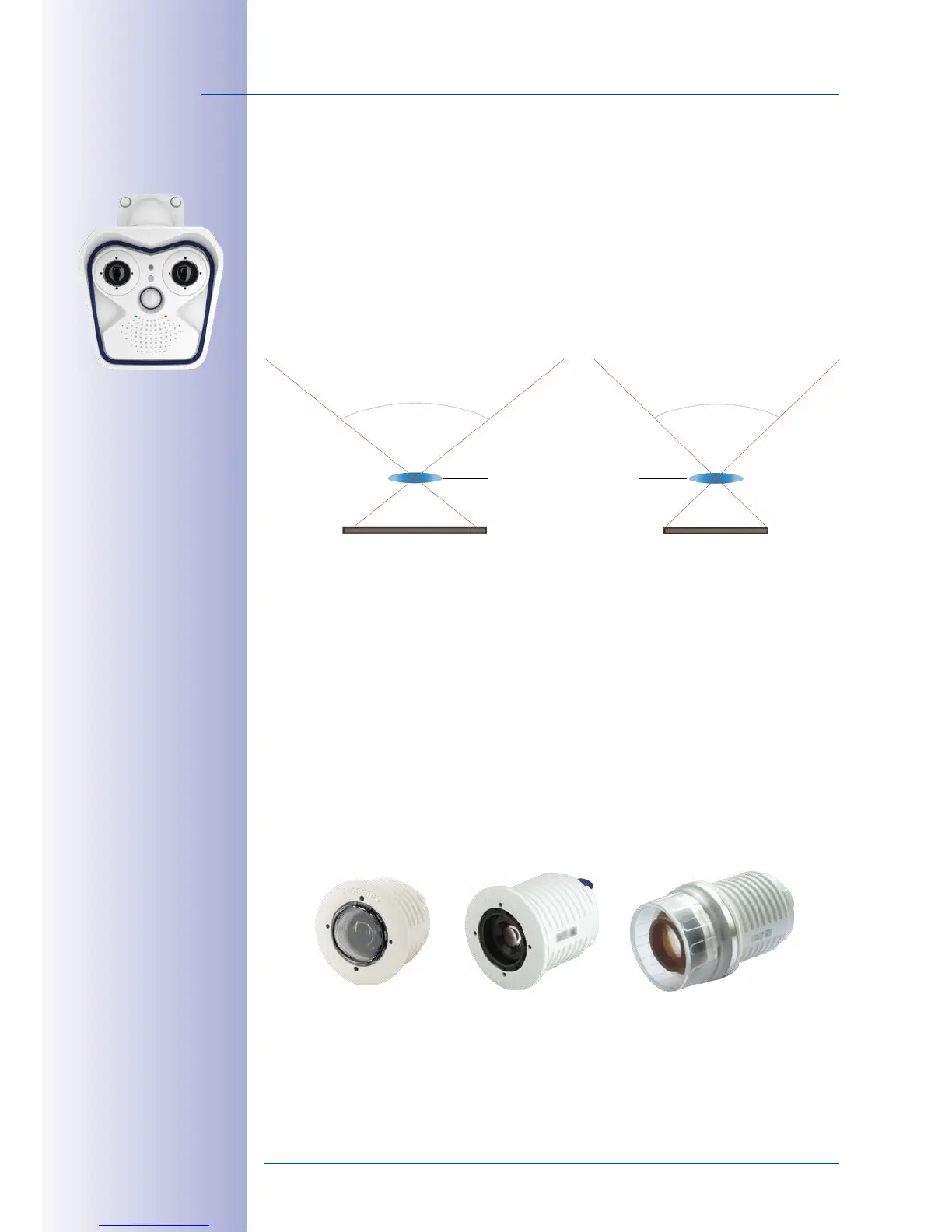

Types of Optical Sensor Modules
6MP image sensor (1/1,8")
Lens L20, image format 4:3
105° 92°
5MP image sensor (1/2.5")
Lens L23, image format 4:3
MOBOTIX Lens L20-L23
Sensor module
L10-L12
Sensor module
L20-L23 to L135-L160
Sensor module
L270-L320
