M15 Camera Manual: Product Overview
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
1.3.4 Sensor Modules L20-L23, L22-L25, L32-L38, L43-L51, L65-L76,
L135-L160*
Item Number Part Name
3.1 1 Sensor module with axed washer
3.2 1 MOBOTIX lens L20-L23/L22-L25/L32-L38/L43-L51/L65-L76/
L135-L160 (installed)
3.3 1 Protective glass insert with coated glass (installed)
3.4 1 Cable retainer with bayonet catch (installed)
3.5 1 Sealing plug, blue, small (installed)
3.6 1 Nut (plastic)
*For an explanation of
the sensor module desig-
nations (e.g., L10‑L12),
please read
Section 1.2.1,
«M15 Lens Options»

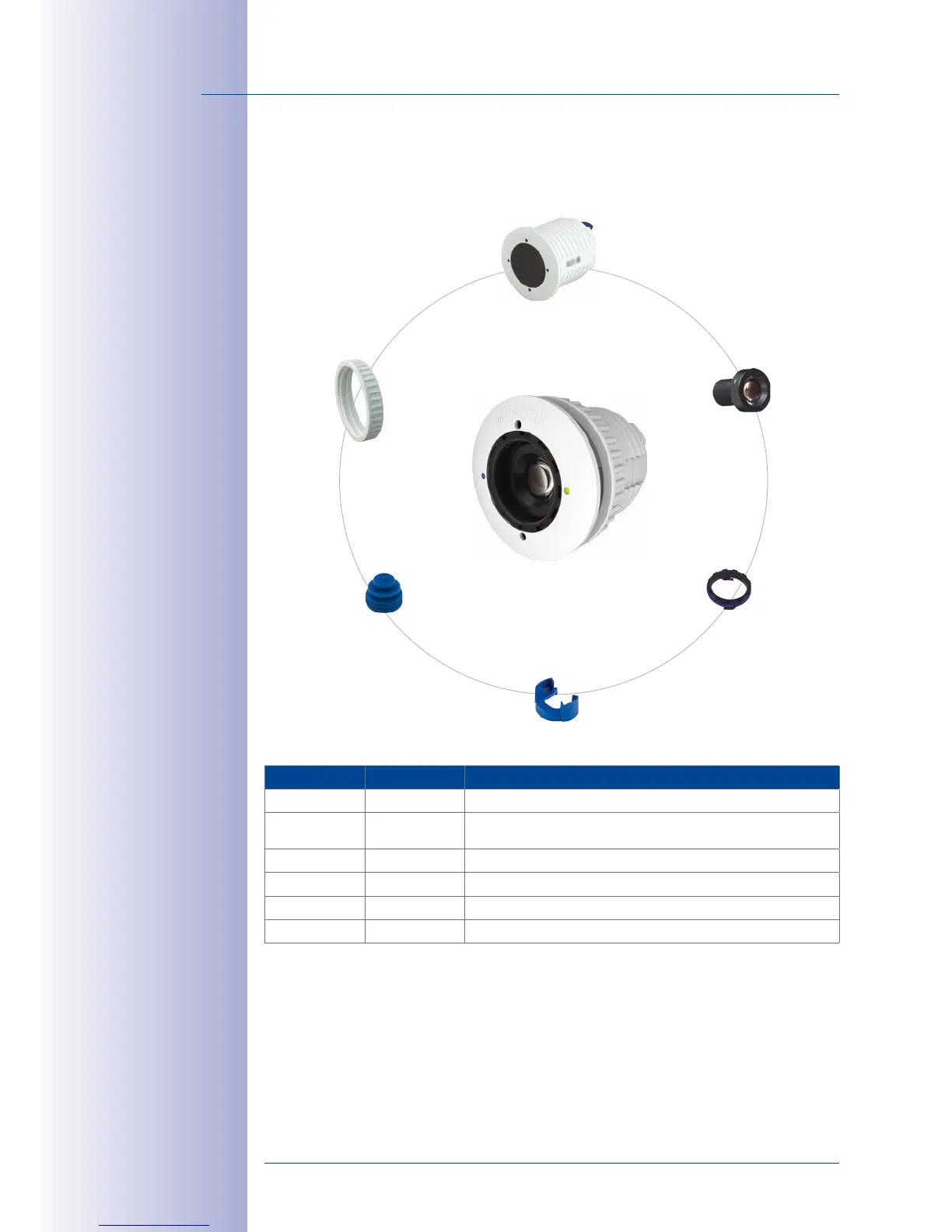

Sensor module
including status LEDs
and microphone
3.1
3.4
3.5
3.2
3.6
3.3
