Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

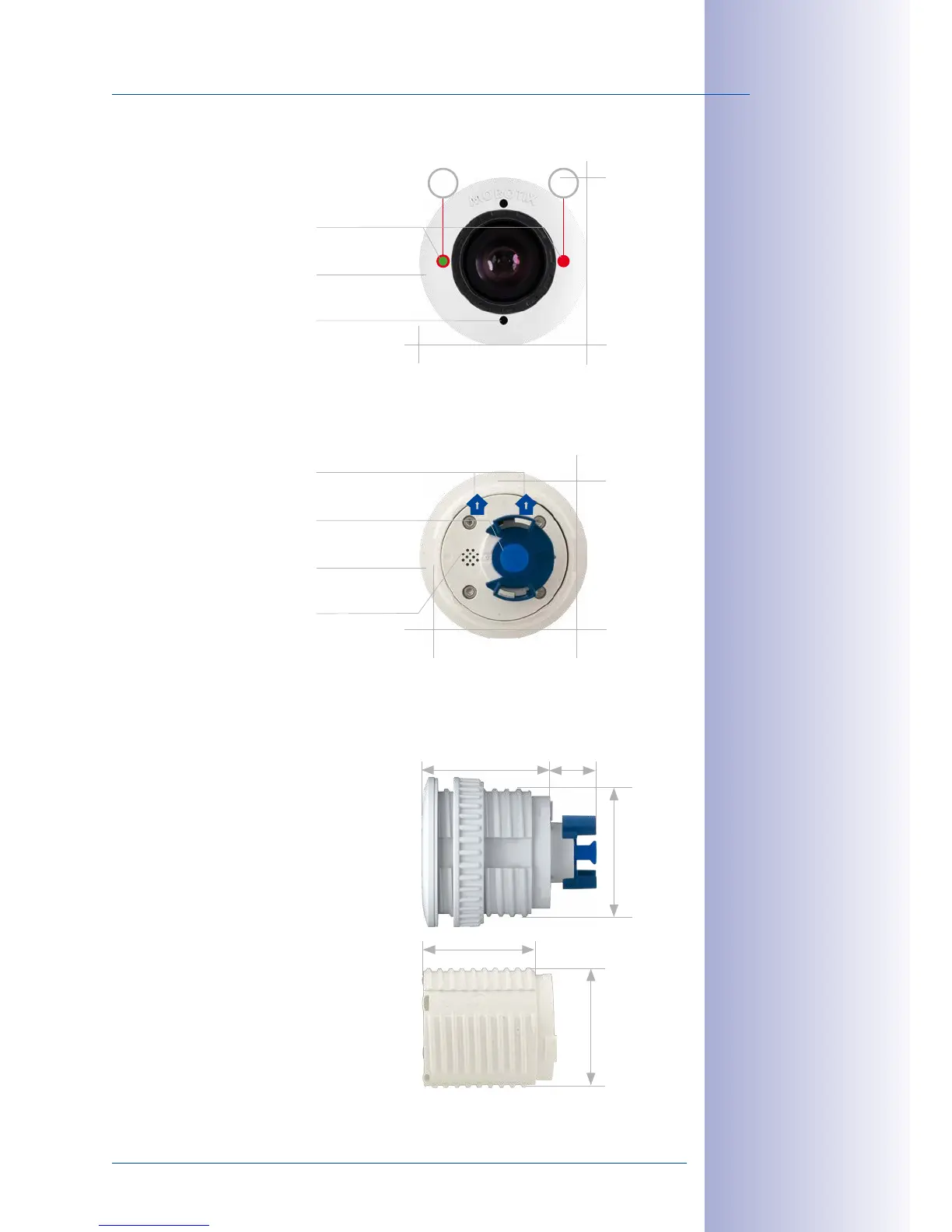

Front View
Rear View
Side View
Top = top border of
image (North)
Diam. 50mm/2in
Diam. 50mm/2in
Sensor module
housing
LEDs
Microphone
1 2
LED default settings:
1Power(on),Error(ashes)
2Recording(ashes)
Diam. 43mm/1.7in
Diam. 43mm/1.7in
Sensor module
housing
Markers for top
Sensor cable con-
nection
Pressure compen-
sation
48mm/1.89in
Diam. 43mm/1.7in
15mm/0.6in
Diam. 43mm/1.7in
40mm/1.6in
Sensor module
weight without lock ring: 122g
weight with lock ring: 128g
Extension
