2.7.3 Power Supply When Connected Directly to a Computer
1. Connect the factory pre-installed cable of the camera to the camera connector of
the PoE adapter.
2. Connect the PC/Power connector of the PoE adapter to the Ethernet port of the
computer.
3. Plug the RJ45 connector of the power supply unit into the LAN/Power connector
of the PoE adapter.
2.7.4 Power Supply with Power-Over-Ethernet Products
Connect the factory pre-installed cable of the camera to a PoE port of the PoE switch/
router. The switch/router must support the PoE standards IEEE 802.3af or IEEE 802.3at.

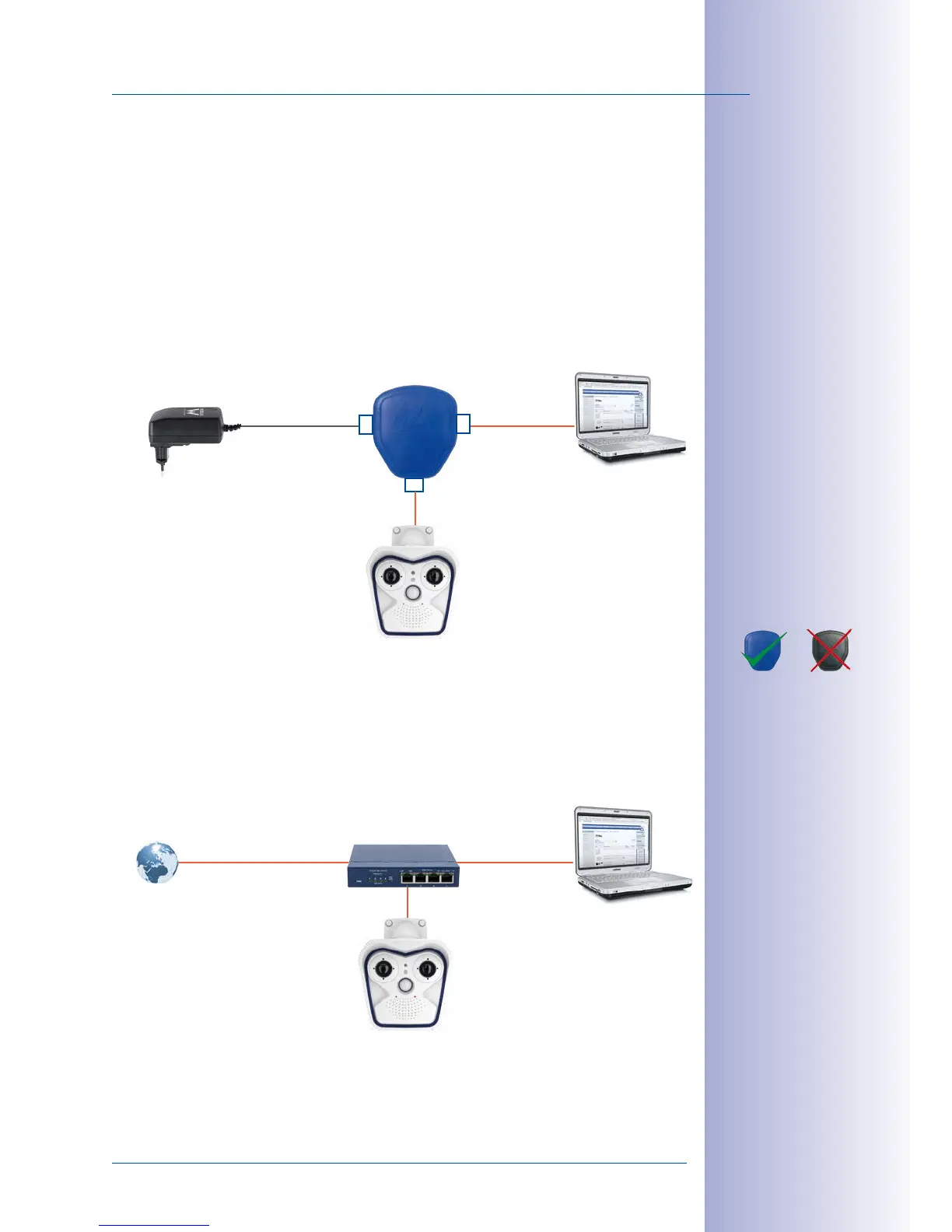

IP addresses in the
diagram are shown
only as an example
PoE adapter
(MX-NPA-PoE)
Power supply
PC
(10.8.0.11/255.0.0.0)
LAN/Power
PC/Power
Camera
RJ45
RJ45
RJ45
Camera
(10.8.0.99)
The PoE adapter replaces
the crossover cable
when directly connect-
ing to a computer
For the M15 you should
use the blue MX-NPA-
PoE-Set or the MX-NPA-
Box – previous MOBOTIX
network power acces-
sories, such as the
NPA-Set, Power-Box and
Power-Rack (MX-NPA-
Set, MX-NPR-4 and
MX-NPR8/20) are
not suitable for use
with the M15!
Camera
(10.8.0.99)
PC
(10.8.0.11/255.0.0.0)
PoE/PoE+ switch/
router
LAN/www
IP addresses in the
diagram are shown
only as an example
