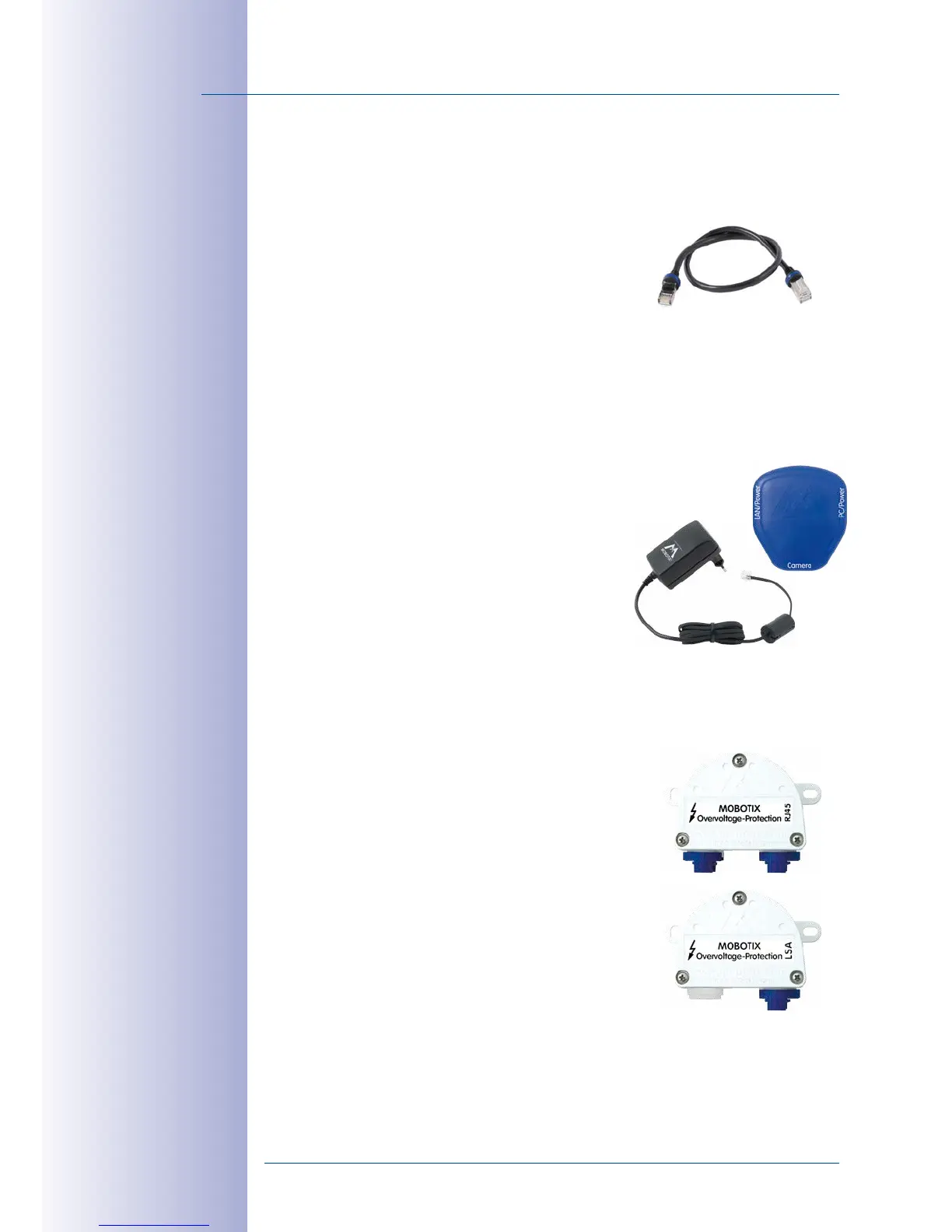

1.4.5 Ethernet Patch Cable for Bayonet Catch
Order no.: MX-OPT-CBL-LAN-1/2/5/10
(length: 1m/2m/5m/10m)
The MOBOTIX-developed special cable can be installed
in a waterproof manner and has an integrated sealing
gasket. Every M15 ships with a 0.5-m-long cable as
standard, which can be exchanged for a patch cable
up to 10m in length.
1.4.6 NPA-PoE-Set
Order no.: MX-NPA-PoE-EU and MX-NPA-PoE-INT (Version EU and Version INT)
Order no.: MX-CBL-NPA-BAT-2 (battery cable for mobile voltage sources)
This is a multi-functional PoE injector according to the IEEE
802.3af standard –with three connectors (for network,
camera/PoE device, PC), universal power supply unit with
interchangeable adapter plugs and crossover function.
The NPA-PoE-Set connects and remotely supplies a M15
with power via an Ethernet cable up to 100m/328ft
in length. The blue adapter can also be connected to
mobile voltage sources from 12 to 57V DC by means
of an additionally available battery cable. The “EU” ver
-
sion of the NPA-PoE-Set is supplied as standard with
a European adapter, while the “INT” version includes
four adapters (EU, USA, UK, AUS).
1.4.7 MX-Overvoltage-Protection-Box
Order no.: MX-Overvoltage-Protection-Box-RJ45
Order no.: MX-Overvoltage-Protection-Box-LSA
Weatherproof network connector (protection class IP65,
–30 to +60 °C/–22 to 140 °F)
with surge protection of up
to 4kV for MOBOTIX IP cameras
, ideal for replacing the
MX-Patch-Box.
At the same time, the MX-Overvoltage-Protection-Box
provides a weatherproof connection of a camera’s patch
cable to a network patch cable ( -RJ45 variant) or a network
installation cable ( -LSA variant).
