Connections of the MOBOTIX M15
The MOBOTIX M15 has the following connections that are accessible once the housing
has been opened (see
Section 2.2.2, «Opening the Camera Housing»
):
Only use the corresponding MOBOTIX cables with sealing ring when using the connec
-
tions of the M15 shown above:
• Ethernet patch cable: MX-OPT-CBL-LAN-1/2/5/10
• MiniUSB (straight/angled): MX-CBL-MU-EN-STR-05/2/5
• MiniUSB to USB-A (angled to USB socket): MX-CBL-MU-EN-AB-05/2/5

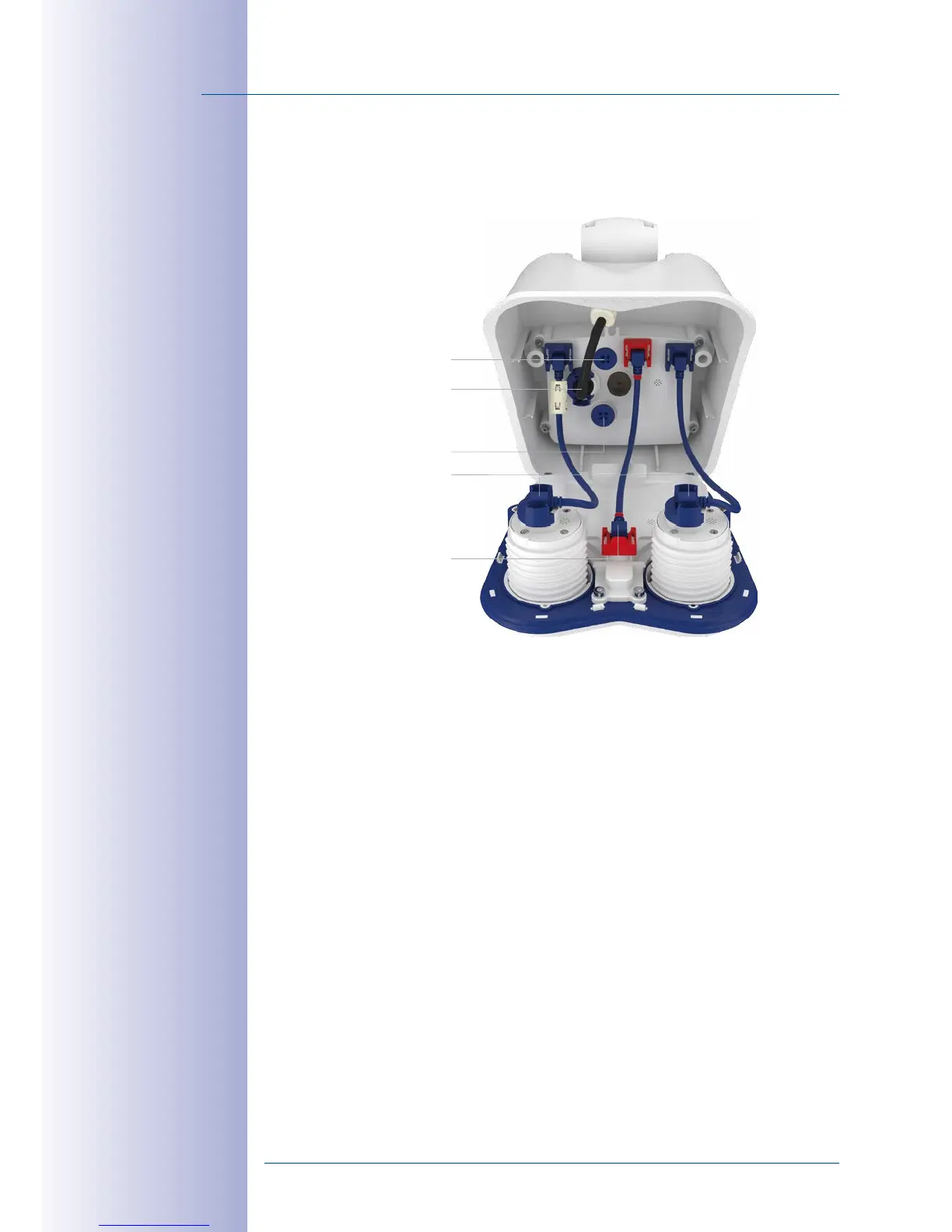

Sensor module
cable
MiniUSB
MxBus
Ethernet patch cable
I/O cable to front
element (red clips
and seals)
Only use cables with
angled plugs inside
the housing of the
M15 (exceptions:
patch cables, MxBus
connection wires)!
