Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Internally-Accessible Connections on the S15D

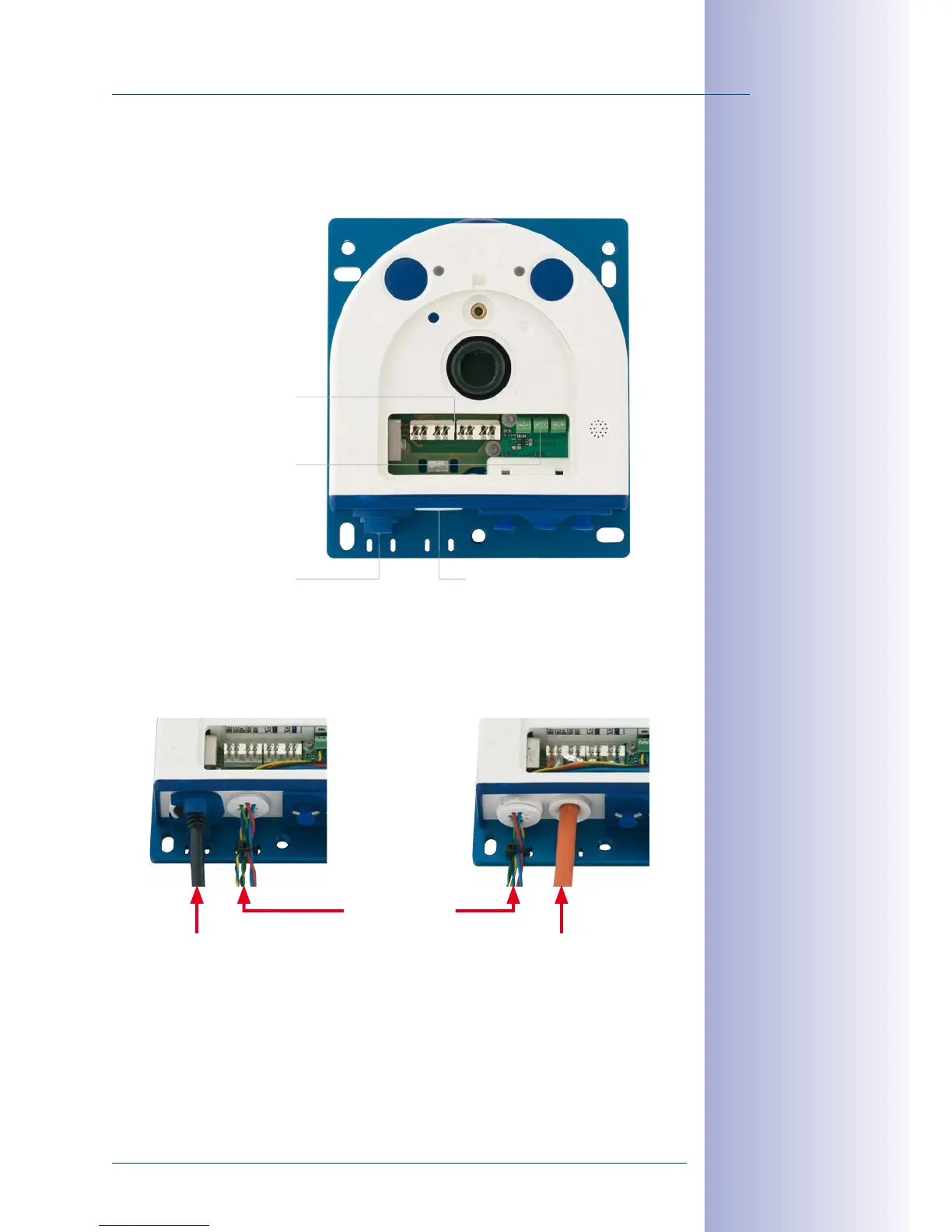

The MOBOTIX S15D provides the following internal connections that can be accessed once
the cover plugs and housing cover are removed:
Before laying the Ethernet installation cable, remove the bayonet catch and replace the
Ethernet patch cable plug with either one of the additional plugs (M.4/5) or the single wire
plug (1.8), depending on the cable used.
Ethernet installation cable
or
MxBus, microphone,
speaker
MOBOTIX-RJ45
or
MxBus, microphone,
speaker
LSA+ terminal
Ethernet Installation
cable
Screw terminals
MxBus, microphone,
speaker
To Next Page
