S15 Camera Manual: Product Overview
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

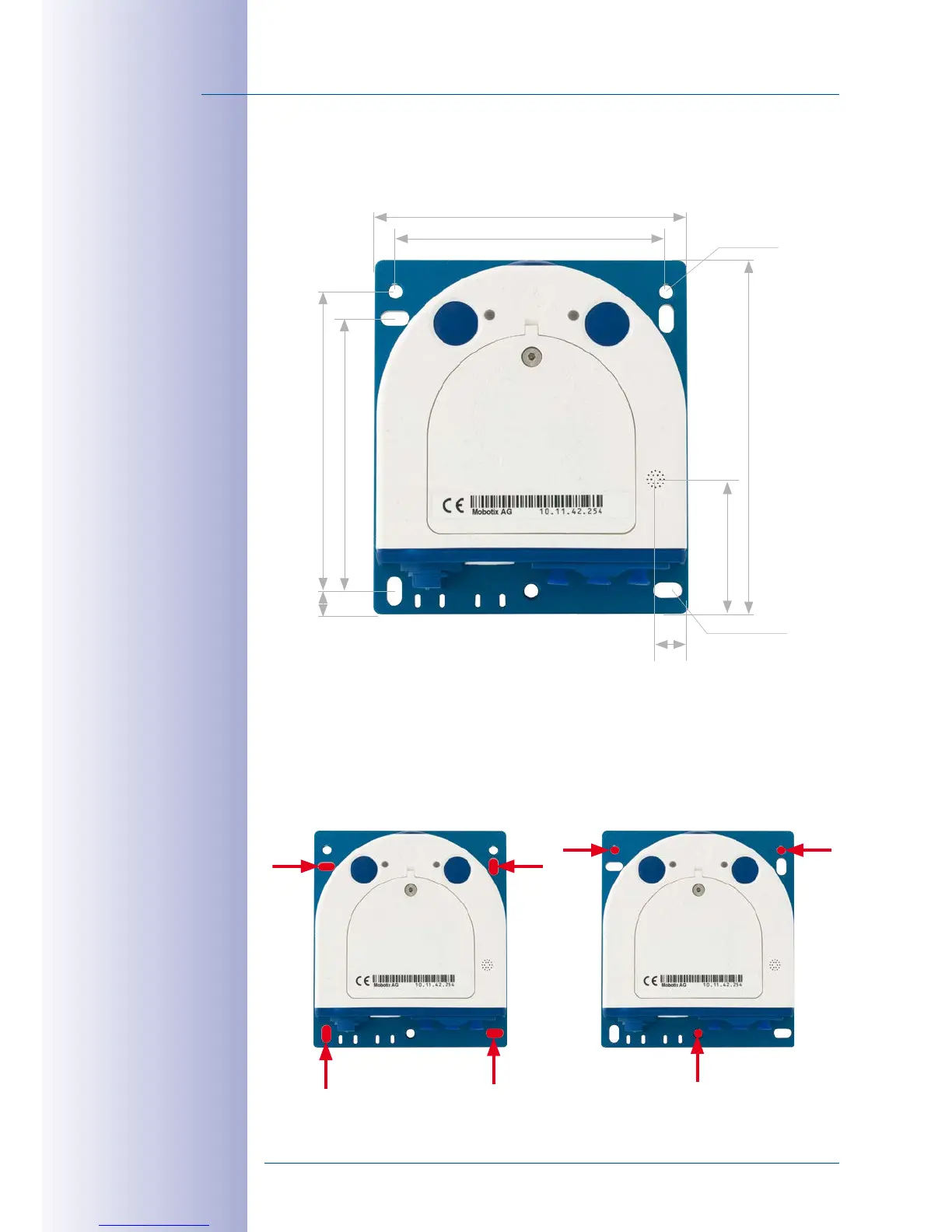

S15D Core (Base Module) Dimensions
Attaching the Base Module
The drilling templates
can be found at the
end of the manual
Always print or copy
drilling template in
their original size
115mm/4.53in
100mm/3.94in
M6
Diam. 5.5mm/
0.22in
130mm/5.12in
47.5mm/1.87in
100mm/3.94in
110mm/4.33in
8.5mm/0.33in
13.5mm/0.53in
M6 tap holes
Slots
