3
Flip cot back over. Slide the remaining side panel into place and attach
using 6x long screws (B) and bolt nuts (C) repeating the process in step
1. You may need to turn cot over to insert all screws and nuts. Tighten
all screws using the allen key (D).
B
B
B
B
B
B
C
B
x6
C
C
4
5

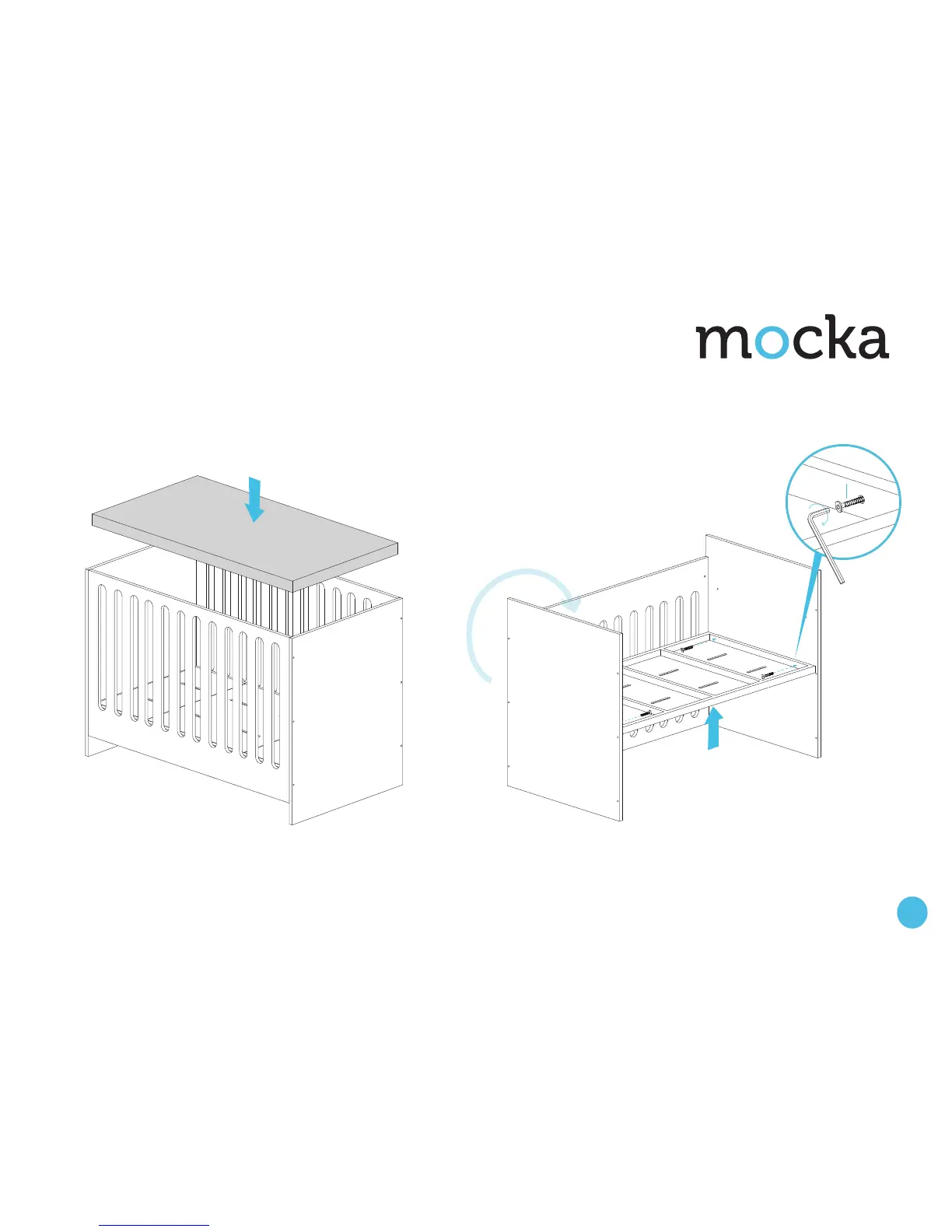

All done! Regularly check all screws are suitably tightened. Place the
correct size mattress into the cot before use. To clean use a damp
cloth, avoiding the use of detergents or abrasives . Once assembled lift
furniture into place, do not drag.
OPTIONAL: To adjust mattress base setting, repeat steps 2 and 3 by
removing the side panel, unscrewing screws (A), (B) & (E), and move the base
to the corresponding holes. Securely fasten again in the adjusted position and
replace the screws, using the spare holes you took the base from.
x4
A
D
A
A
A
Mocka Amal Cot
Assembly Instructions
