Mocka Savannah Buffet - Step 15: Construct Drawer Boxes; Step 16: Fit Drawer Hardware

Savannah Buffet
Assembly Instructions
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
9
2
4
2
3
3
P
P
O
2
3
4
P
P
O
15 x3

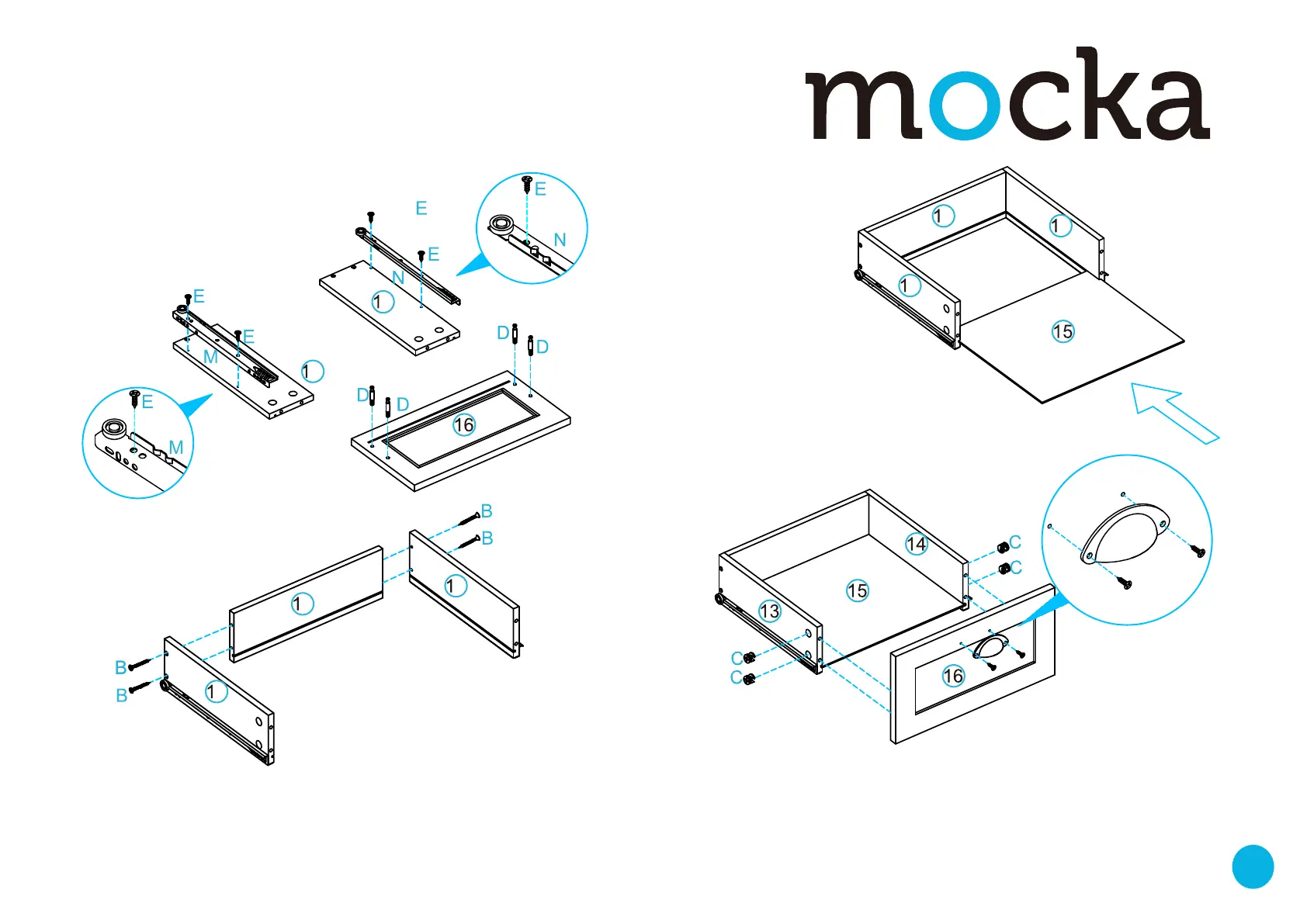

Attach 1 x rail (M) and 1 x rail (N) to panels [12] and [13] and secure
with 4 x screws (E). Attach 4 x bolts (D) to panel [16]. Attach panels [12]
and [13] to panel [14] and secure with 4 x screws (B). Tighten with a
screwdriver.
Slide panel [15] into position as shown. Attach 1 x handle (O) to panel
[16] and secure with 2 x screws (P). Attach panel [16] to assembled
frame and secure with 4 x locking nuts (C). Tighten with a screwdriver.
16 x3
