Warnings
Don't expose the MOD Duo to liquids, although it has been manufactured to prevent death-by-beer,
■
it's generally a good idea not to submerge electronics in liquids.
When inserting the USB-B cable into the MOD Duo, make sure that you are not accidentally
■
plugging it into the Control Chain socket, this can cause a short-circuit.
Don't connect the MOD Duo's Control Chain port to a regular Ethernet port, it uses a very different
■
protocol, and may damage your MOD Duo.
To power up the MOD Duo, only use a 12V-DC, center-positive adapter. Using a reverse polarity
■
adapter (like the average guitar pedal adapter) may destroy the circuitry of the MOD Duo. When in
doubt, only use the provided power supply.
When connecting output 1/2 to unbalanced equipment, only do this using mono cables. When you
■
use stereo cables, the MOD Duo works in balanced mode, which may or may not be harmful for
your equipment.
Overview

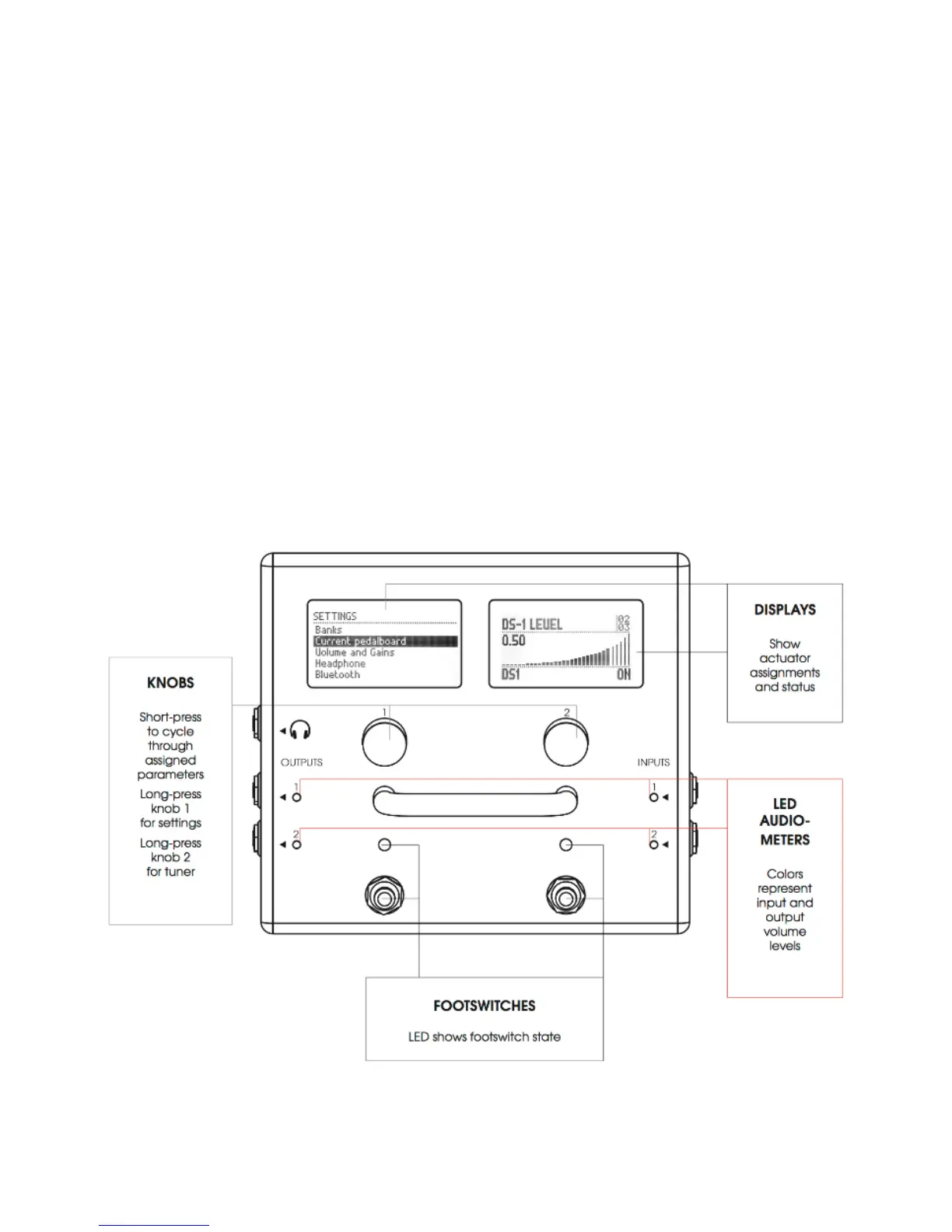

The wireframe images below expose the controls and inputs/outputs that the MOD Duo has.
