Device features
The following sub-sections give information about the different physical device features: the inputs,
outputs, actuators, displays and finally the dimensions of the device.

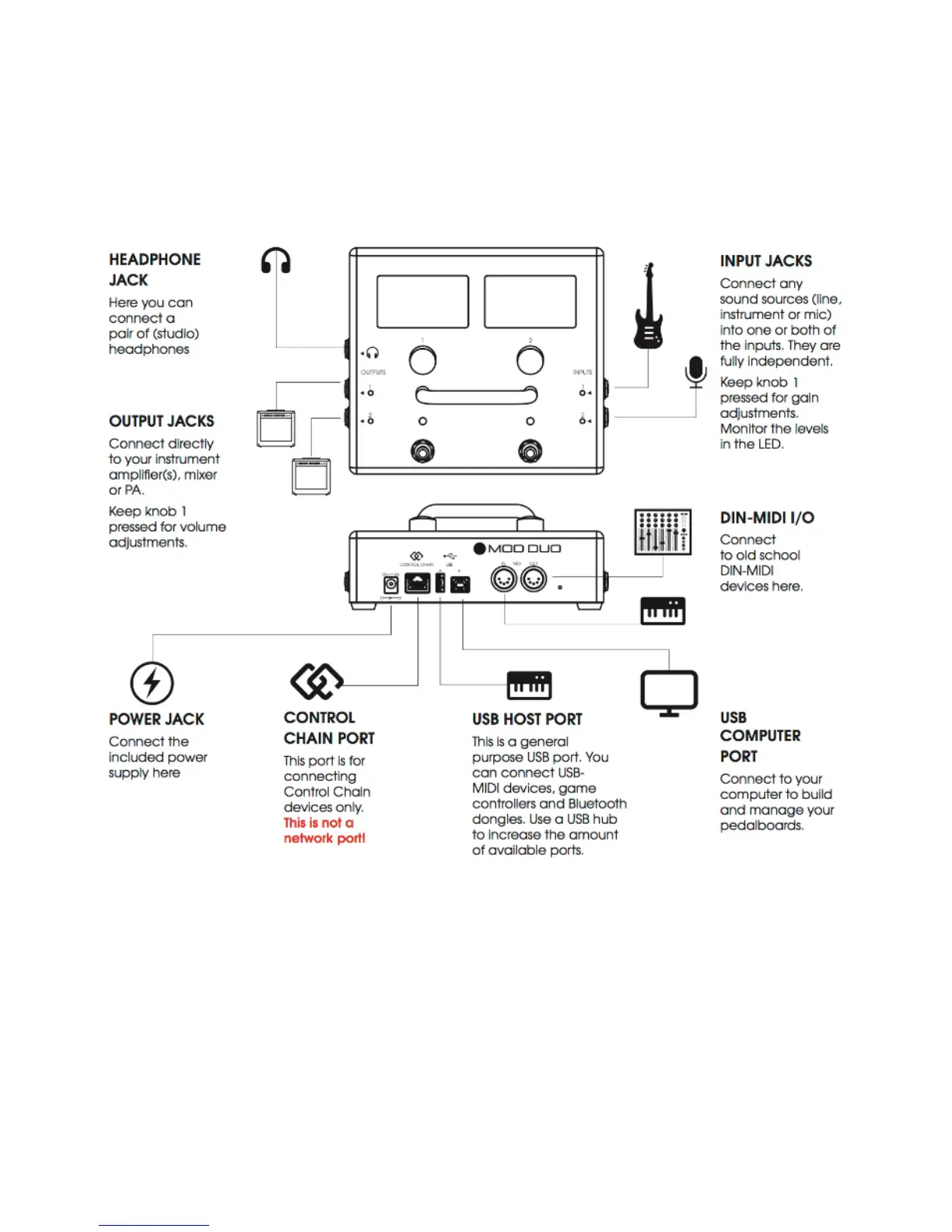

Inputs and outputs
To ensure a safe connection, follow the steps below.
Turn down the volume of your amp and connect it to the OUTPUT jack(s)1.
Connect your instrument(s) to the INPUT jack(s)2.
Turn on the MOD Duo by plugging in its power adapter3.
Wait until the MOD Duo boots up4.
Inputs jacks
The MOD Duo has two independant audio inputs, with configurable input gain for each input. You
can set up the input gain through the device menu.
