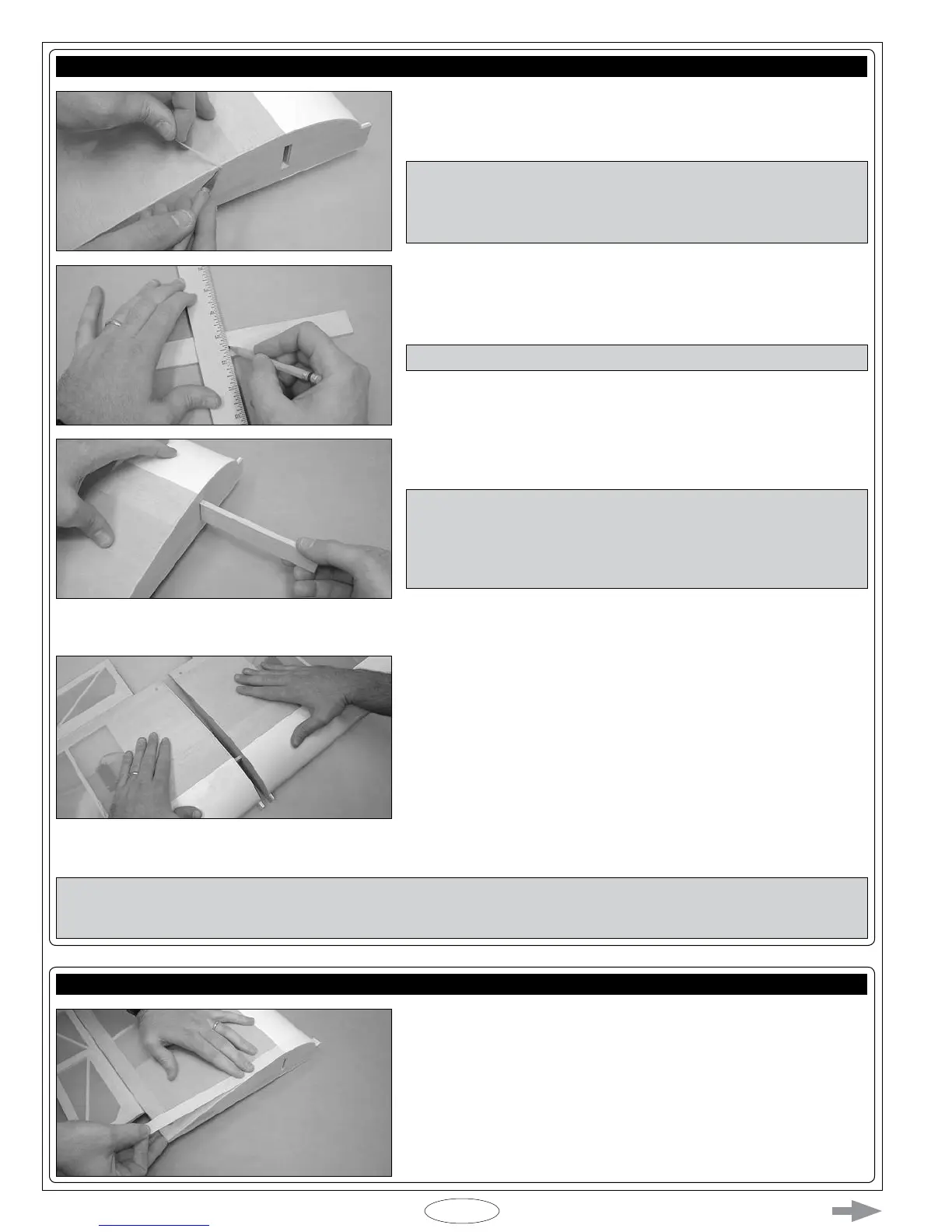

STEP 3: ALIGNING THE WING PANELS
q Cut away the excess covering material that overlaps onto the root ribs
of each wing panel, leaving about 1/16" (1.6mm) overlapped so it does not
pull away.
IMPORTANT It's very important to the integrity of the wing center-
section joint that you remove as much covering material from the root ribs
as possible. Do not omit this procedure or the wing center-section joint
may fail during ight.
q Locate and draw a vertical centerline on one side of the wing joiner.
IMPORTANT The wing joiner is straight. There is no top or bottom.
q Test-t the wing joiner into each wing panel. It should slide easily into
each wing panel, up to the centerline you drew.
IMPORTANT When the wing joiner is installed, it should not t tightly
into the wing panels. It should actually be slightly loose. This will ensure
that when you glue the wing joiner into place, epoxy can get into the joints
between the wing joiner and the wing joiner mounting box. This will ensure
the strongest joint possible.
+
If the wing joiner does not t properly, use 220 grit sandpaper with a sanding block to lightly sand the wing joiner until you are
satised with the t.
q Carefully slide both wing panels together with the wing joiner temporarily
installed (without using glue).
q While holding the two wing panels together rmly, make sure that the wing panels are lined up at both the leading and trailing
edges, then look carefully at the center-section joint: the wing panels should t together tightly with few or no gaps in the joint.
IMPORTANT If the wing panels do not t together properly, remove the wing joiner and use 220 grit sandpaper with a sanding
block to lightly sand the edges and tips of the wing joiner until you are satised with the t. Remember, when the wing panels are
pushed together, there should be few or no gaps in the center-section joint.
STEP 4: JOINING THE WING PANELS
q When satised with the t and alignment, pull the wing panels apart and
remove the wing joiner.
q
Apply a strip of masking tape to the top and bottom edges of the root rib
on each wing panel.
+
The masking tape will prevent excess epoxy from getting onto the wing
panels when you join them.
