PERFORMANCE AND DIMENSIONAL DATA - MODEL IHR
8
Table 7.1 - Performance and Dimensional Data
➀ See Table 8.1 for allowable mounting angles.
➁ See Figure 7.1.
➂ Single stage controls are direct spark ignition with 100% safety shutoff and are available as either 115V or 24V
④ Millivolt thermostat and 35 feet of wire.

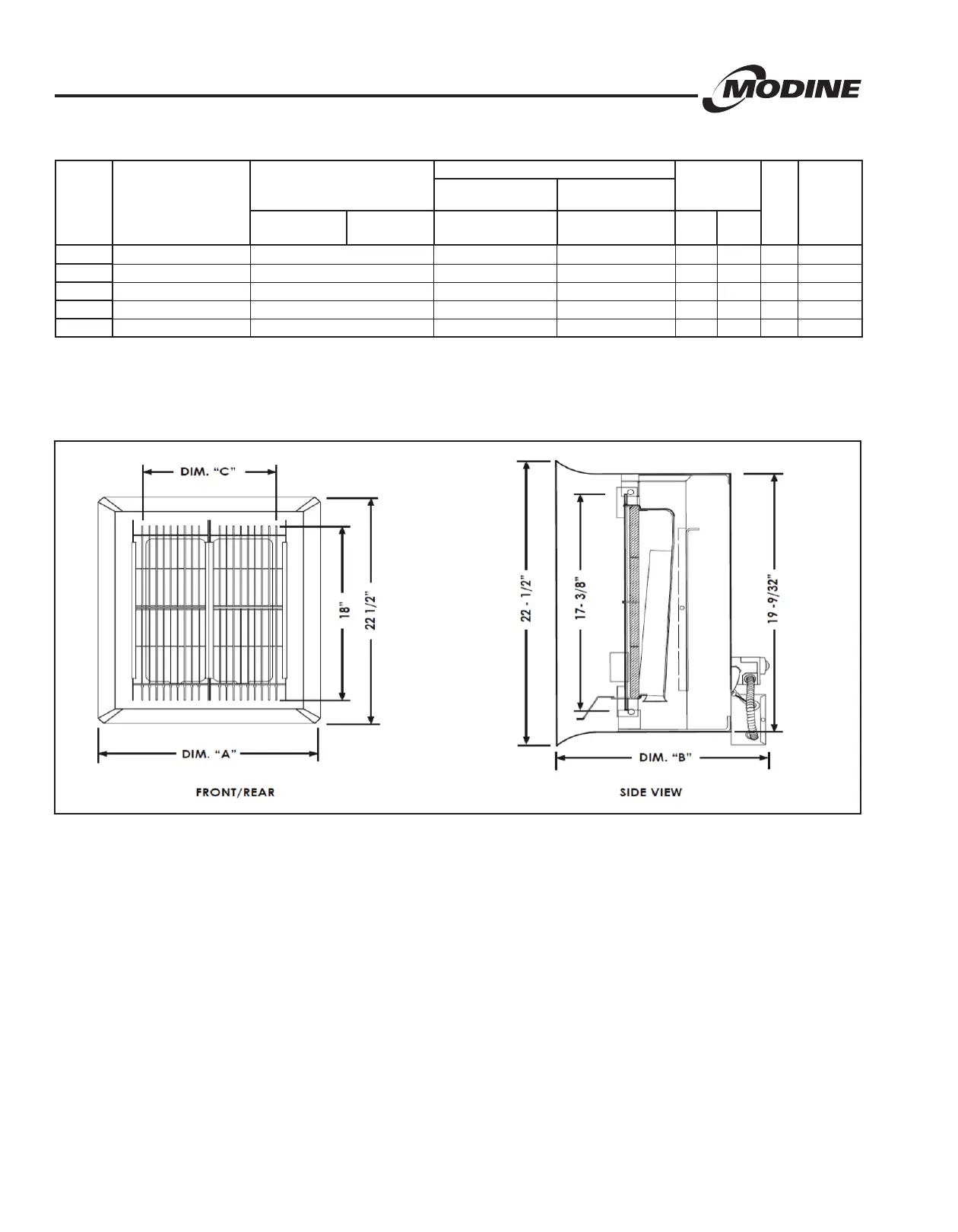

Figure 7.1 - Unit Dimensional Drawing
Model
Gas Controls
➂ ➃
Input Rating (Btu/hr)
Recommended Mounting Height (ft.) ➀
Dimensions
(in) ➁
Ship
Wt.
(lbs)
Radiating
Area
(sq. in.)
Standard
Reflector
Parabolic
Reflector
Natural Propane
30°
Angle
30°
Angle
A B
IHR 30 Single Stage or Millivolt 30,000 12 - 14 12 - 15 12 3/4 14 1/4 44 85
IHR 60 Single Stage or Millivolt 60,000 14 - 16 18 - 21 19 1/8 15 1/4 60 170
IHR 90 Single Stage or Millivolt 90,000 16 - 18 21 - 25 26 5/8 15 1/4 81 255
IHR 130 Single Stage or Millivolt 130,000 21 - 24 26 - 32 32 15 1/4 55 340
IHR 160 Single Stage or Millivolt 160,000 24 - 28 29 - 35 38 1/2 15 1/4 65 425
