28
6-189.18
Propeller Units - Model PTP

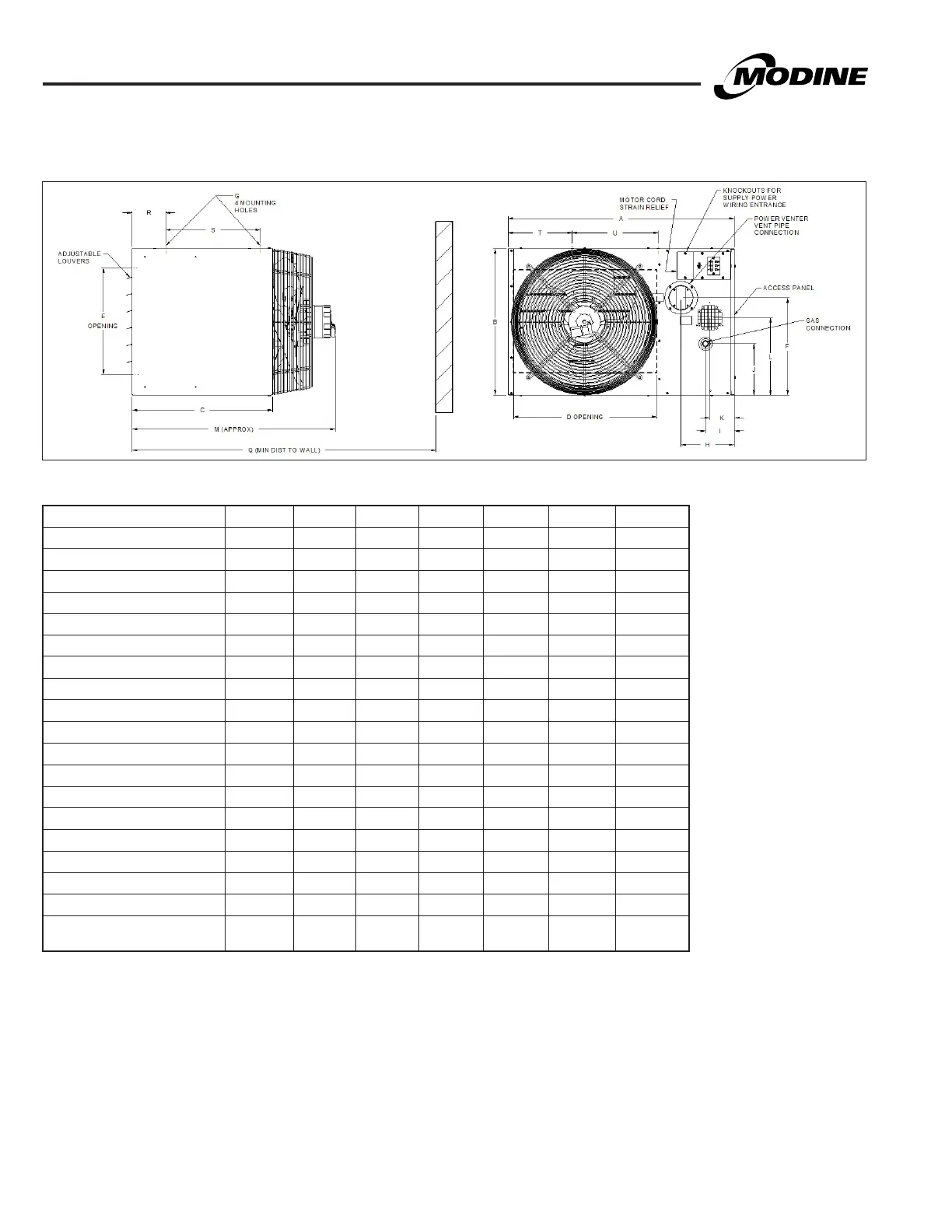

Figure 28.1 - Dimensional Drawings
j Do not use propeller units with duct work.
k Listed is the hole diameter and threads per inch to accept threaded rod.
l Dimension equals overall plus 12".
Table 28.1 - Dimensions (inches) - PTP j
Models PTP150 PTP175 PTP200 PTP250 PTP300 PTP350 PTP400
A 35.53 42.53 42.53 42.53 42.53 42.53 42.53
B 23.06 25.81 25.81 31.31 31.31 39.56 39.56
C 22.05 22.05 22.05 22.05 22.05 22.05 22.05
D 22.52 29.52 29.52 29.52 29.52 29.52 29.52
E 16.20 18.95 18.95 29.43 29.43 32.17 32.17
F 15.33 16.70 16.70 19.45 19.45 23.58 23.58
G (Mounting Hole) k
3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16
H 8.37 8.37 8.37 8.37 8.37 8.37 8.37
I 4.50 4.50 4.50 4.50 4.50 4.50 4.50
M 31.79 32.83 34.43 33.83 33.83 34.83 34.83
Q l
43.79 44.83 46.43 45.83 45.83 46.83 46.83
R 3.56 3.56 3.56 3.56 3.56 3.56 3.56
S 14.90 14.90 14.90 14.90 14.90 14.90 14.90
T 10.00 10.00 10.00 10.00 10.00 10.00 10.00
U 13.54 20.53 20.53 20.53 20.53 20.53 20.53
Gas Connection 1/2 1/2 1/2 3/4 3/4 3/4 3/4
Vent Connector Size 4" 4" 4" 6" 6" 6" 6"
Fan Diameter 20.00 22.00 22.00 22.00 22.00 24.00 26.00
Approx. Shipping Weight
(lbs.)
163 163 215 256 261 313 329
DIMENSIONAL DATA - MODEL PTP
