Modine Manufacturing HD - Safety Labels and Their Locations

SAMPLE
MODINE MANUFACTURING COMPANY
1500 DEKOVEN AVENUE - RACINE, WI 53403
UNVENTED GAS-FIRED RADIANT HEATER
High-Intensity Infrared Heater
1.800.828.4325 (HEAT) www.modinehvac.com
FOR COMMERCIAL AND INDUSTRIAL USE ONLY
NOT FOR RESIDENTIAL USE
MADE IN USA
Class IIIA Permanent Label
1866280
DESIGN COMPLIES WITH:
ANSI Z83.19-2017/CSA 2.35-2017 Gas-Fired High Intensity Infrared Heater
FOR OPERATION AT ELEVATIONS FROM 2000 TO 6000 FT. DERATE THE APPLIANCE 4% PER THOUSAND
FEET OVER SEA LEVEL. CONSULT MANUFACTURER FOR INSTALLATIONS ABOVE 6000 FT.
MIN. MOUNTING ANGLE:
DEGREES
20
MAX. MOUNTING ANGLE:
DEGREES
35
SERIAL NUMBER:
2011MODIXXXXXX 0001
VOLTAGE:
120 VAC
MODEL NUMBER:
IHR 60S 47
VERSION:
05/97
INPUT BTU/H UP
TO 2000 FT.
60,000
FREQUENCY:
Hz
60
STARTING AMPS:
0.1
RUNNING AMPS:
0.1
FOR USE WITH:
Natural Gas
HEATER TYPE:
C1
MIN. INLET PRESSURE FOR PURPOSE
OF INPUT ADJUSTMENT:
INCHES W.C.
11.0
INCHES W.C.
10.0
INCHES W.C.
14.0
MANIFOLD PRESSURE:
MAX. INLET PRESSURE:
IHR Series Manual
8
Clearances to combustibles must be maintained at
all times in order to prevent the ignition of
combustible materials. In locations used for the
storage of combustible materials, signs must be
posted to specify the maximum permissible stacking height to
maintain the required clearances from the heater to the
combustibles. Signs must either be posted adjacent to the
heater’s thermostats or, in the absence of such thermostats, in a
conspicuous location. Clearances are provided on the heater’s
safety label and in the heater’s Installation, Operation, and
Maintenance manual. Product installation and operation must
comply with applicable standards, codes, and regulations. Post
this tag adjacent to the heater’s thermostat or controls before
operating the heater.
- INSTALLER: READ AND POST THIS NOTICE -
LL001-XM-07/18 (CDS)
This product can
expose you to
chemicals including
lead and carbon
monoxide, which are known to the
State of California to cause birth
defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.
WARNING
!
Avoid Serious Injury, Death, or Property Damage.
Maintain Clearances to Combustible to Prevent the Risk of Fire.
California Proposition 65
Safety Labels and Their Locations
It is important to provide warnings to alert individuals to potential hazards and safety actions. ANSI Z83.19
and the National Fuel Gas Code require you to post a sign “specifying the maximum permissible stacking
height to maintain the required clearances from the heater to the combustibles” near the heater’s
thermostat or, in absence of such thermostats, in a conspicuous location. Signs should state the hazards
for the particular application and be legible to the building occupants. Consult the factory or a factory
representative for additional information on signage compliance.

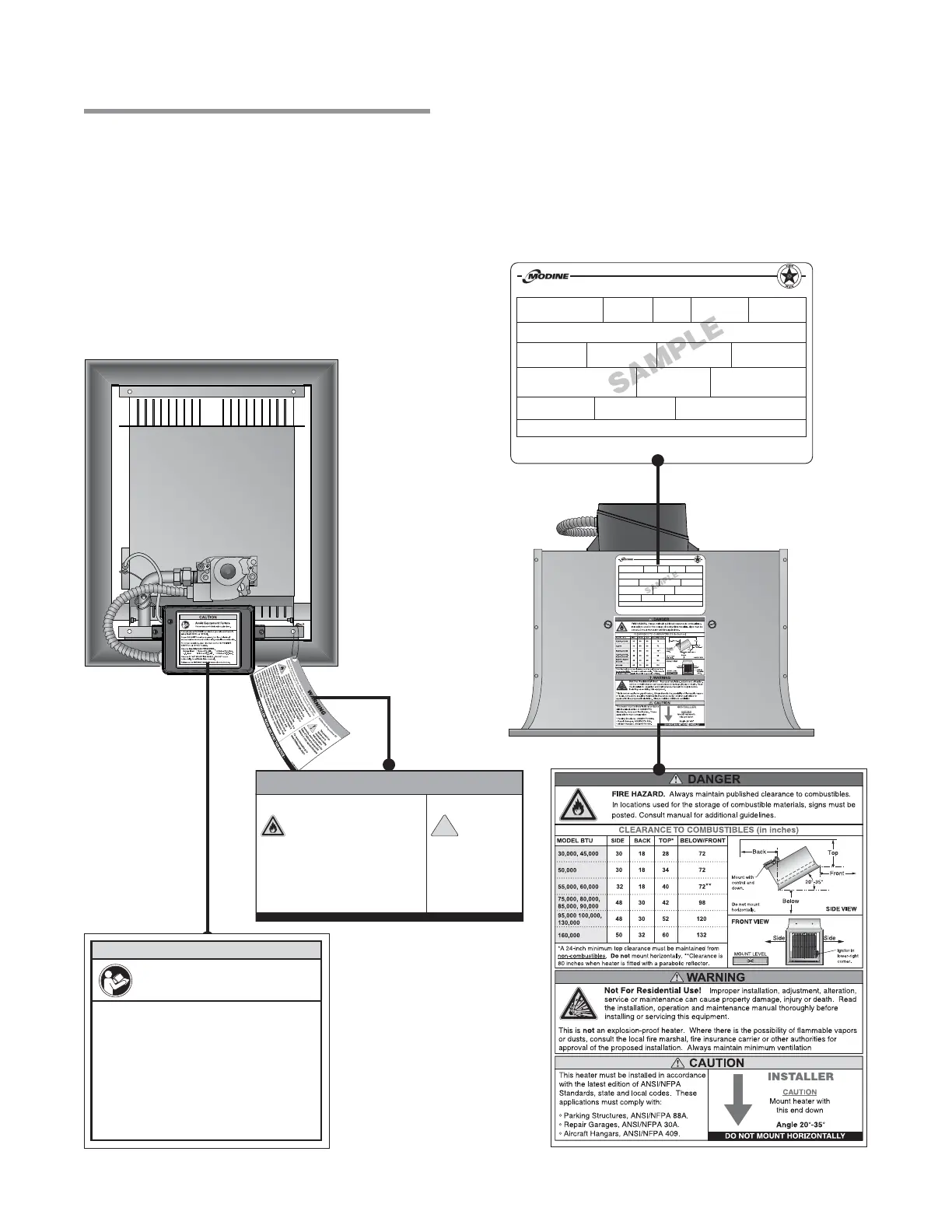

Safety warning labels must be maintained on the
infrared heater. Illustrations of the safety labels,
and their locations, are pictured below.
1.0 Safety • Safety Labels and Their Locations
Back View
Bottom View
F/N: LLDCL002
Clearances to Combustibles Label
SAMPLE
MODINE MANUFACTURING COMPANY
1500 DEKOVEN AVENUE - RACINE, WI 53403
UNVENTED GAS-FIRED RADIANT HEATER
High-Intensity Infrared Heater
1.800.828.4325 (HEAT) www.modinehvac.com
FOR COMMERCIAL AND INDUSTRIAL USE ONLY
NOT FOR RESIDENTIAL USE
MADE IN USA
Class IIIA Permanent Label
1866280
DESIGN COMPLIES WITH:
ANSI Z83.19-2017/CSA 2.35-2017 Gas-Fired High Intensity Infrared Heater
FOR OPERATION AT ELEVATIONS FROM 2000 TO 6000 FT. DERATE THE APPLIANCE 4% PER THOUSAND
FEET OVER SEA LEVEL. CONSULT MANUFACTURER FOR INSTALLATIONS ABOVE 6000 FT.
MIN. MOUNTING ANGLE:
DEGREES
20
MAX. MOUNTING ANGLE:
DEGREES
35
SERIAL NUMBER:
2011MODIXXXXXX 0001
VOLTAGE:
120 VAC
MODEL NUMBER:
IHR 60S 47
VERSION:
05/97
INPUT BTU/H UP
TO 2000 FT.
60,000
FREQUENCY:
Hz
60
STARTING AMPS:
0.1
RUNNING AMPS:
0.1
FOR USE WITH:
Natural Gas
HEATER TYPE:
C1
MIN. INLET PRESSURE FOR PURPOSE
OF INPUT ADJUSTMENT:
INCHES W.C.
11.0
INCHES W.C.
10.0
INCHES W.C.
14.0
MANIFOLD PRESSURE:
MAX. INLET PRESSURE:
Rating Plate
F/N: LLDR002
F/N: LL001 - Clearance
Safety Tag
(Affix adjacent to
heater’s thermostat)
CAUTION
Avoid Equipment Failure
Consult manual for installation guidelines.
Connect proper VOLTAGE as noted on gas valve and heater’s
rating label (25VAC or 120VAC).
Proper POLARITY must be observed. Hot line of electrical
source must be connected to black wire; neutral line to white wire.
For proper operation, green line must connect to POSITIVE
EARTH on all 120VAC heaters.
Observe listed inlet GAS PRESSURES.
Natural Gas: 7 Inches W.C. Min. 14 Inches W.C. Max.
L.P. Gas: 11 Inches W.C. Min. 14 Inches W.C. Max.
Observe 20°-35° MOUNTING ANGLE. DO NOT mount
horizontally. Consult installation manual.
Reference the WIRING DIAGRAM located inside this box.
