Modine Manufacturing HD - Heater Placement; Chart 2.1 • Recommended Mounting Heights and Distances for “Total Area” Heating

IHR Series Manual
10
2.0 Installation • Heater Placement
Model No.
Mounting Heights Dim. A
Distance
Between
Heaters
Dim. B (ft.)
Distance
Between
Heater Rows
Dim. C (ft.)
Distance
Between
Heater
and Wall (ft.)
30° Angle
Standard
Reflector (ft.)
30° Angle
Parabolic
Reflector (ft.)
IHR 30 12-14 12-15 8-24 15-40 4-8
IHR 60 14-16 18-21 12-36 15-55 6-12
IHR 90 16-18 21-25 16-48 20-70 6-12
IHR 130 21-24 26-32 20-60 25-85 8-14
IHR 160 24-28 29-35 24-65 30-100 8-14
Chart 2.1 • Recommended Mounting Heights and Distances for “Total Area” Heating
Key
Infrared heater
Exhauster
Thermostat
Air intake louver
A
B
Perimeter mounting
Perimeter and center row mounting
A
B
Factory recommended mounting heights are listed as a guideline. If infrared heaters are mounted too low or
too high, they may result in discomfort or lack of heat. Modine Manufacturing Company generally recommends
observing the recommended mounting heights to optimize comfort conditions. However, certain applications
such as spot heating, freeze protection, outdoor patio heating, or very high ceilings may result in the heaters
being mounted outside of the recommended mounting heights.

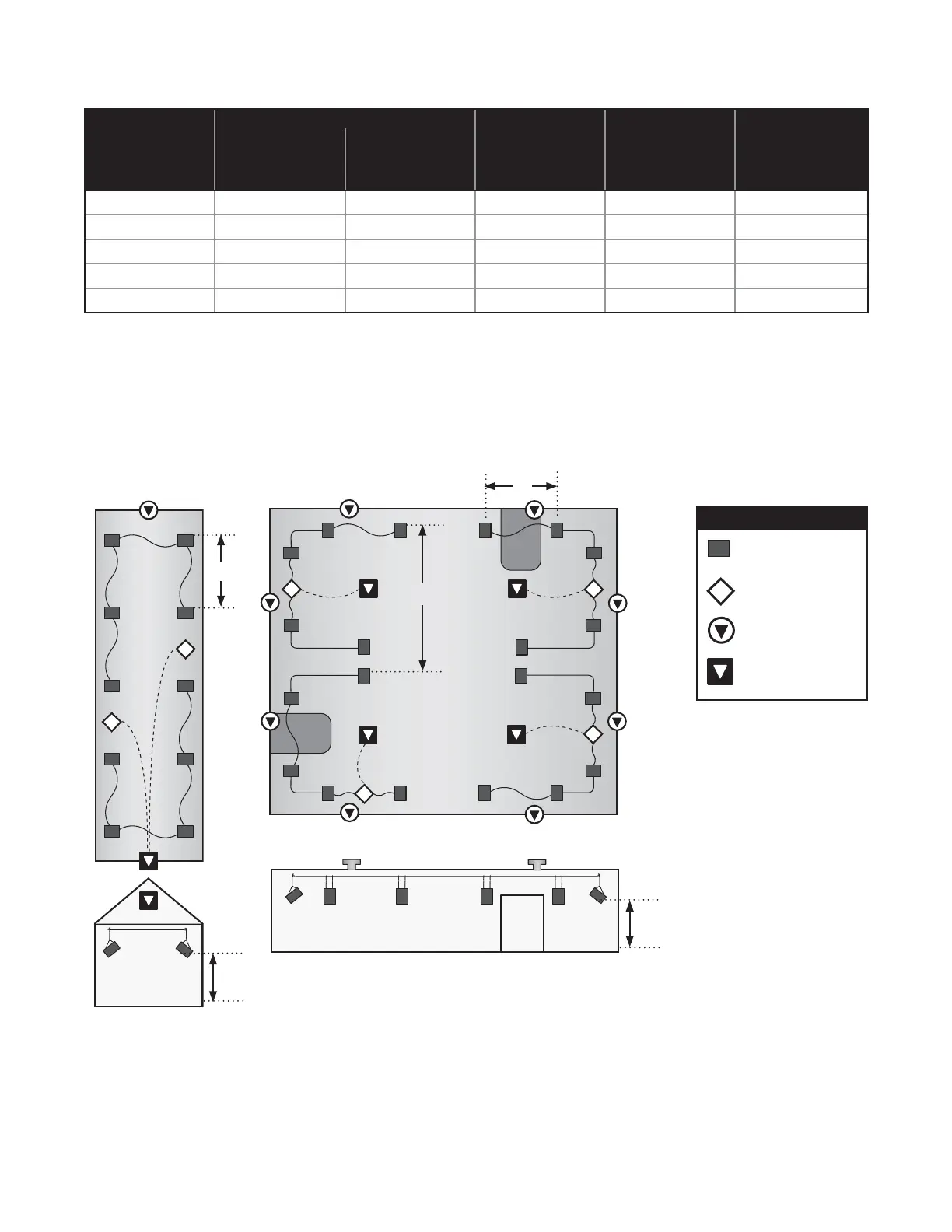

Figure 2.1 • Total Area Heating Sample Layout
C
