Modine Manufacturing PD - Nozzle Performance Data; Nozzle Types and Dimensions; Mounting Height and Heat Spread

22

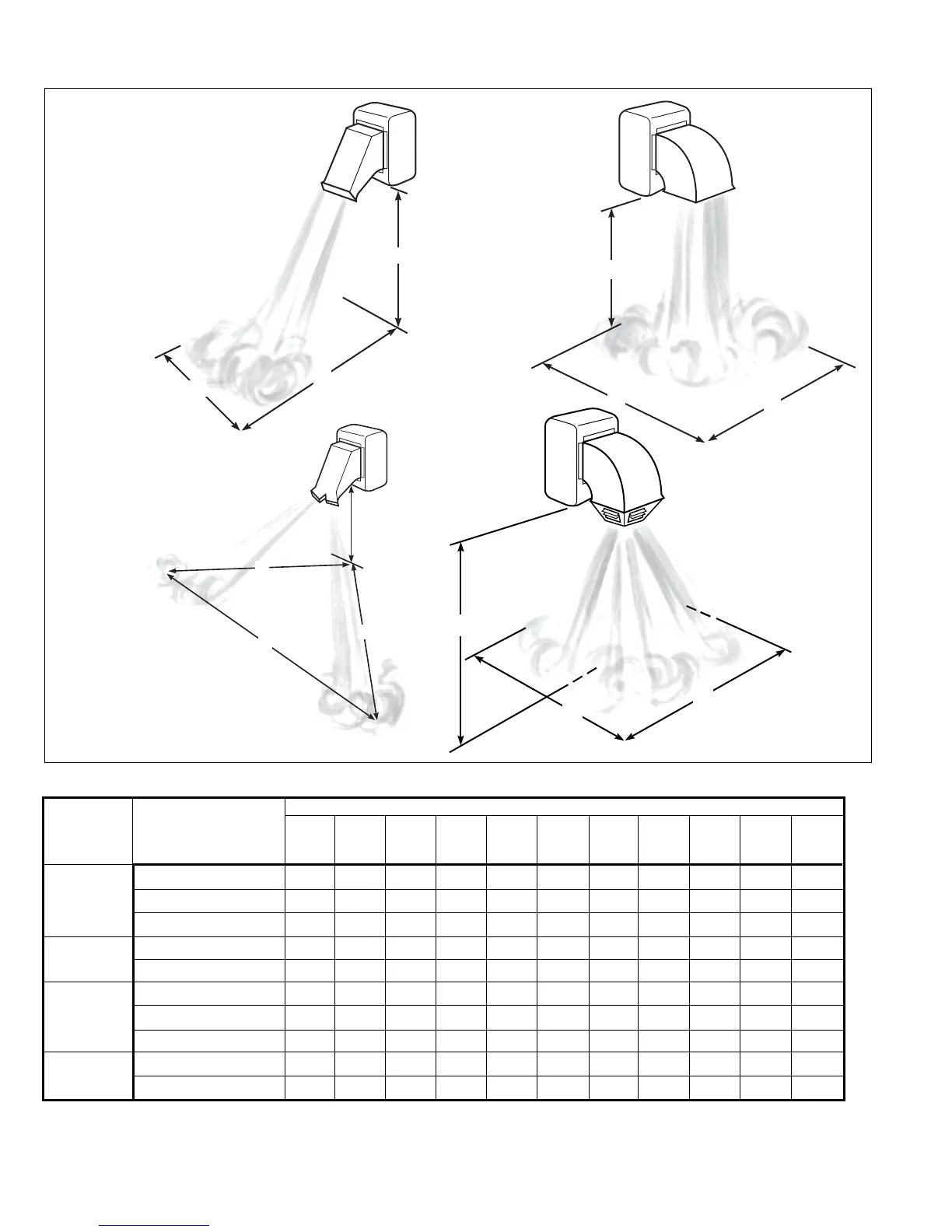

PERFORMANCE DATA – NOZZLES
Mounting Height, Heat Throw, Heat Spread (in feet)
S
S
H
S
T
T
H
S
S
40° DOWNWARD
NOZZLE
40° SPLITTER
NOZZLE
90° VERTICAL
NOZZLE
5-WAY
NOZZLES
Max. Mounting Ht. (ft.) H 16 20 21 24 26 25 27 29 31 32 32
Heat Throw (ft.) T 48 61 64 71 79 76 81 86 94 96 96
Heat Spread (ft.) S 16 20 21 24 26 25 27 29 31 32 32
Max. Mounting Ht. (ft.) H 14 22 23 24 26 26 24 29 31 32 32
Heat Spread (ft.) S 14 22 23 24 26 26 24 29 31 32 32
Max. Mounting Ht. (ft.) H – – – 23 24 24 23 25 28 30 32
Heat Throw (ft.) T – – – 56 60 59 59 62 70 75 80
Heat Spread (ft.) S – – – 113 120 118 117 124 140 151 160
Max. Mounting Ht. (ft.) H – 18 18 23 22 21 20 25 26 23 26
Heat Spread (ft.) S – 25 26 32 31 29 28 35 36 32 36
BD 50 BD 75 BD 100 BD 125 BD 150 BD 175 BD 200 BD 250 BD 300 BD 350 BD 400
Model Number
40°
Downward
Nozzle
90° Vertical
Nozzle
40° Splitter
Nozzle
5-Way
Nozzle
Nozzle
Type
The above table is based on an inlet air temperature of 70°F and an air temperature rise of 55°F. Air deflectors on, 40° and 90° discharge nozzles set perpendicular to the
face of the air discharge opening. On 5-way nozzles all air deflectors set perpendicular to floor. Static pressure measured at 0.1" W.C. for 90° nozzle, 0.2" W.C. for 40°
downward and 5-way nozzle, and 0.3" W.C. for 40° splitter nozzle. Outlet velocities are approximately 1750 FPM for the 40° nozzles, 1000 FPM for the 90° nozzle and 1300
FPM for 5-way. For motor size, drive and blower rpm refer to pages 18 and 19. Mounting height measured from bottom of unit.
S
T
H
