Modine Manufacturing PD - Unit Identification and Parts; Serial and Model Number Breakdown; Rating Plate Information

31

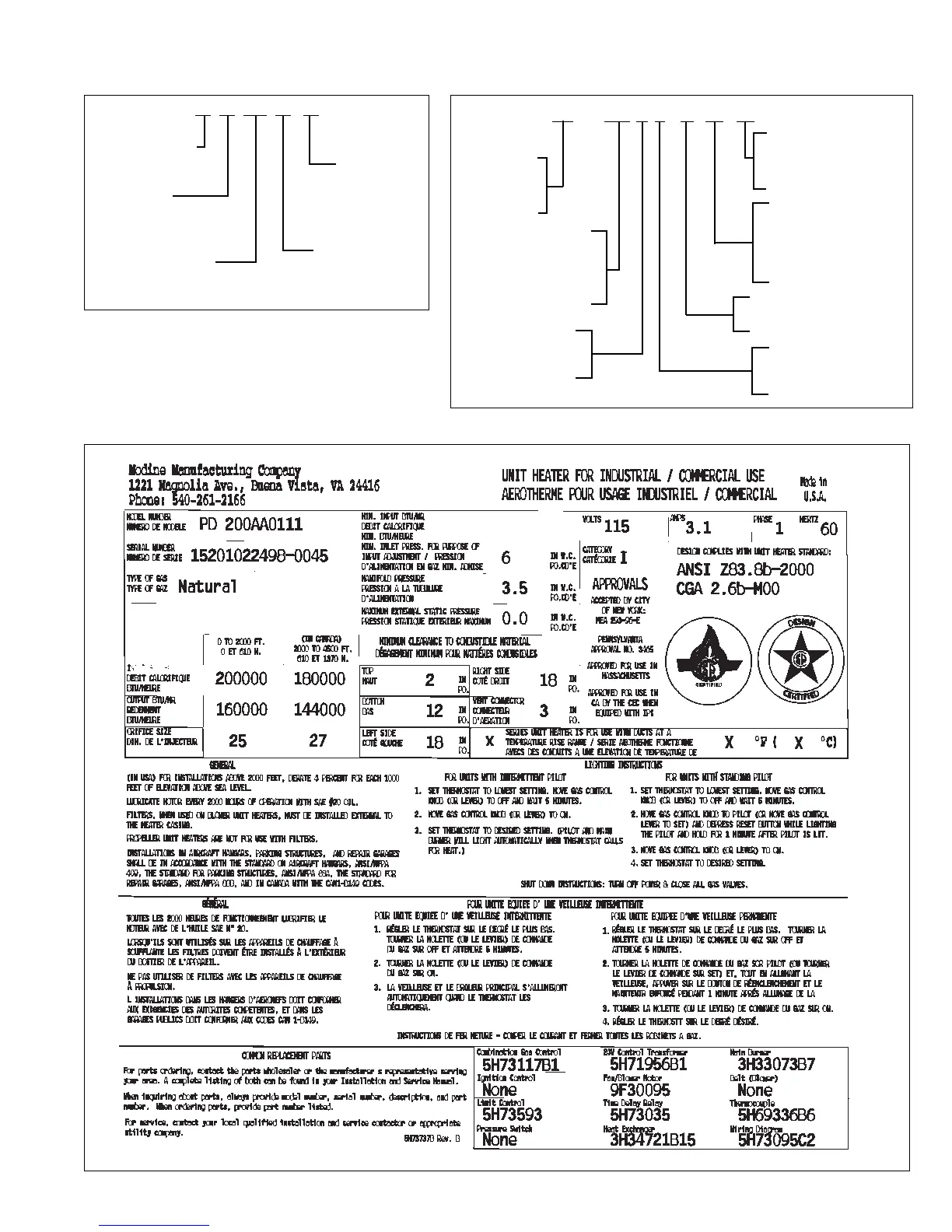

RATING PLATE IDENTIFICATION
Figure 31.2 - Model Number Designations
PD 150 A E M 01 30
PD - Propeller
Unit
BD - Blower
Unit
Input
150 - 150,000 Btu/hr input
175 - 175,000 Btu/hr input
250 - 250,000 Btu/hr input
etc.
Control Code
30 - Complete Control Code
descriptions are shown on
page 27
Power Code
01 - Complete Power Code
descriptions
02 - are shown on page 25
etc.
Ignition Type
A – Standing Pilot
E – Intermittent Pilot
M - Unit is equipped with 2-stage
or mechanical modulation
Heat Exchanger
A - Aluminized
S - Stainless Steel
Figure 31.1 - Serial Number Designations
01 12 101 10 97
MOTOR SUPPLIER CODE
01 - Century
05 - Universal
etc.
SERIES IDENTITY NUMBER
Identifies which series of controls
were furnished on the unit.
FAN OR BLOWER
SUPPLIER CODE
01 - Revcor
08 - Brookside
etc.
YEAR OF
MANUFACTURE
97 - 1997
98 - 1998
etc.
WEEK OF
MANUFACTURE
10 - 10
th
week of 1997
25 - 25
th
week of 1997
etc.
Figure 31.3 Serial Plate
