DIMENSIONAL DATA
W
X
F
C
M (APPROX.)
N
S
K
EE
P
FILTER RACK
(OPTIONAL)
BLOWER
ENCLOSURE
(OPTIONAL)
A
H
D (OPENING)
BB
E
AA
B
K
G
J VENT PIPE
4-5/8''
L (MIN. DISTANCE TO WALL) L (MIN. DISTANCE TO WALL)
RxT
QxV
O
Dimensions (inches) — BD
Dimension
Model Number
Symbol
BD 50 BD 75 BD 100 BD 125 BD 150 BD 175 BD 200 BD 250 BD 300 BD 350 BD 400
A 17-1/4 17-1/4 19-1/4 19-1/4 21 23-1/2 25-5/8 25-5/8 28-5/8 33-5/8 40
B 24-1/4 28-3/4 28-3/4 35-1/4 35-1/4 35-1/4 40-1/4 40-1/4 40-1/4 40-1/4 40-1/4
C 14-3/4 20 20 22 22 22 25 25 25 25 25
D 14-13/16 14-13/16 16-13/16 16-13/16 18-9/16 21-1/16 23-3/16 23-3/16 26-3/16 31-3/16 37-1/2
E 13 16 16 20 20 20 24 24 24 24 24
F 9-1/4 11 11 12 12 12 13-1/2 13-1/2 14 – –
G 2 2-3/4 2-3/4 3-5/8 3-5/8 3-5/8 4-3/8 4-3/8 4-3/8 4-1/4 4-1/4
H 13-5/8 13-5/8 15-5/8 15-5/8 17-3/8 19-7/8 22 22 25 30 36-3/8
J ➀ 45667778 91010
K Mounting Holes ➁ 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16 3/8-16
L w/ Blwr Encl & Filt Rk 47-5/8 52-5/8 55-5/8 51-5/8 62-5/8 62-5/8 69-5/8 69-5/8 69-5/8 69-5/8 69-5/8
L w/o Blwr Encl & Filt Rk 38 43-1/8 45-3/4 49-7/8 53-1/8 53-1/8 61 61 61 61 65
M ➂ 32 37-1/8 39-3/4 43-7/8 47-1/8 47-1/8 55 55 55 55 59
N ➃ 11-3/4 14-7/8 17-5/8 18-5/8 21-1/2 21-1/2 25-7/16 25-7/16 24-15/16 17-15/16 22
O 4-1/2 5-3/4 5-3/4 7-1/2 7-1/4 7-1/4 8-1/2 8-1/2 8-1/2 8-1/2 8-1/2
P 22 22 25 25 30 30 34 34 34 34 34
Q Blower Encl Ht 14-1/8 17-1/8 17-1/8 21-3/8 21-3/8 21-3/8 25-1/8 25-1/8 25-1/8 25-1/8 25-1/8
R Inlet Duct Height 15-3/4 15-3/4 15-3/4 20 20 20 23-3/4 23-3/4 23-3/4 23-3/4 23-3/4
S Center to Center 10-15/16 13-15/16 18-7/16 18-7/16 17-5/16 17-3/8 20-3/8 20-3/8 20-3/8 20-3/8 20-3/8
Blower Mtg. Holes
T Inlet Duct Width 16 16 19-3/4 19-3/4 27-1/2 27-1/2 32-3/4 32-3/4 32-3/4 42-7/8 42-7/8
V Blower Encl Width 17-1/2 17-1/2 21-1/4 21-1/4 29 29 34-1/4 34-1/4 34-1/4 44-3/8 44-3/8
W –––––––– –55
X –––––––– –1616
AA 5 6-1/4 6-1/4 8 8 8 9 9 9 9 9
BB 6-1/4 6-1/2 6-1/2 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4 7-1/4
EE 41-3/8 46-5/8 49-5/8 56-5/8 56-5/8 56-5/8 63-5/8 63-5/8 63-5/8 63-5/8 63-5/8
Gas Connections ➄ 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4
Std. Mtr. Sheave Dia. 33333333 334-1/2
Std. Blower Sheave Dia. 8 10 8 7 11 7 14 10 7 6 10
Blower Wheel Diameter 8 8 9 9 13 13 15 15 15 15 15
Approx. Weight 116# 146# 158# 205# 215# 231# 307# 307# 331# 420# 490#
➀
Diameter of round vent pipe to fit oval opening.
➁
BD 50 thru BD 300 — 4 holes (2 on blower and 2 on unit). BD 350 and BD 400 — 6 holes (2 on blower and 4 on unit). (Listed is the hole diameter and threads per inch to accept
threaded rod).
➂
This is an approximate dimension for standard motors, allow 3" for sheave and optional motors.
➃
Distance between mounting hole in unit casing and mounting hole on blower. On the BD 350 and BD 400, the distance is from rear mounting hole in casing to the mounting hole on blower.
➄
For natural gas; may vary depending on control availability.
Table 26.1
Blower Units - Model BD

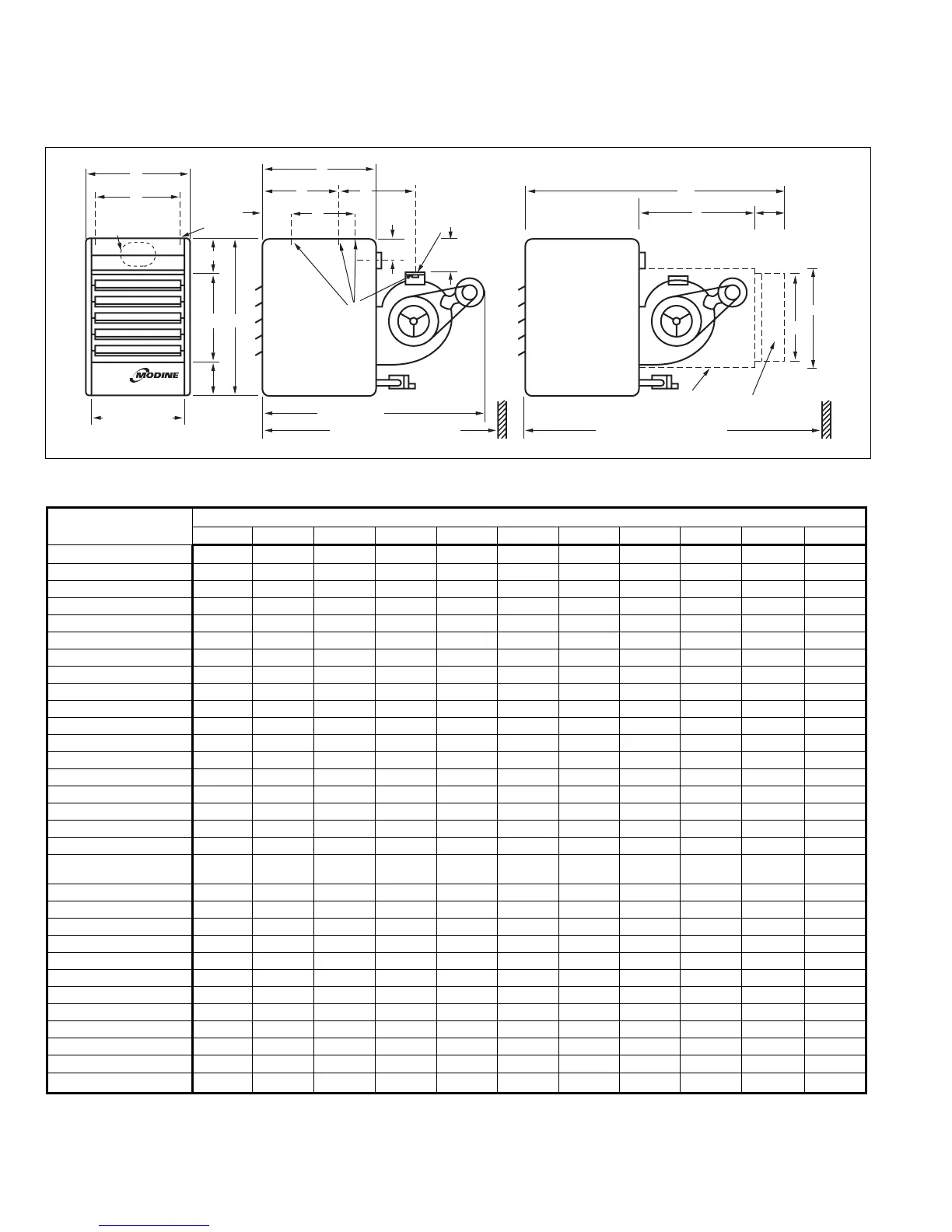

Figure 26.1
Dimensional Drawings
