Connecting the programming device (PC)
왘 Connect the PC to the PRG interface of the
PS4-200 (left-hand socket) using the
programming cable ZB4-303-KB1.

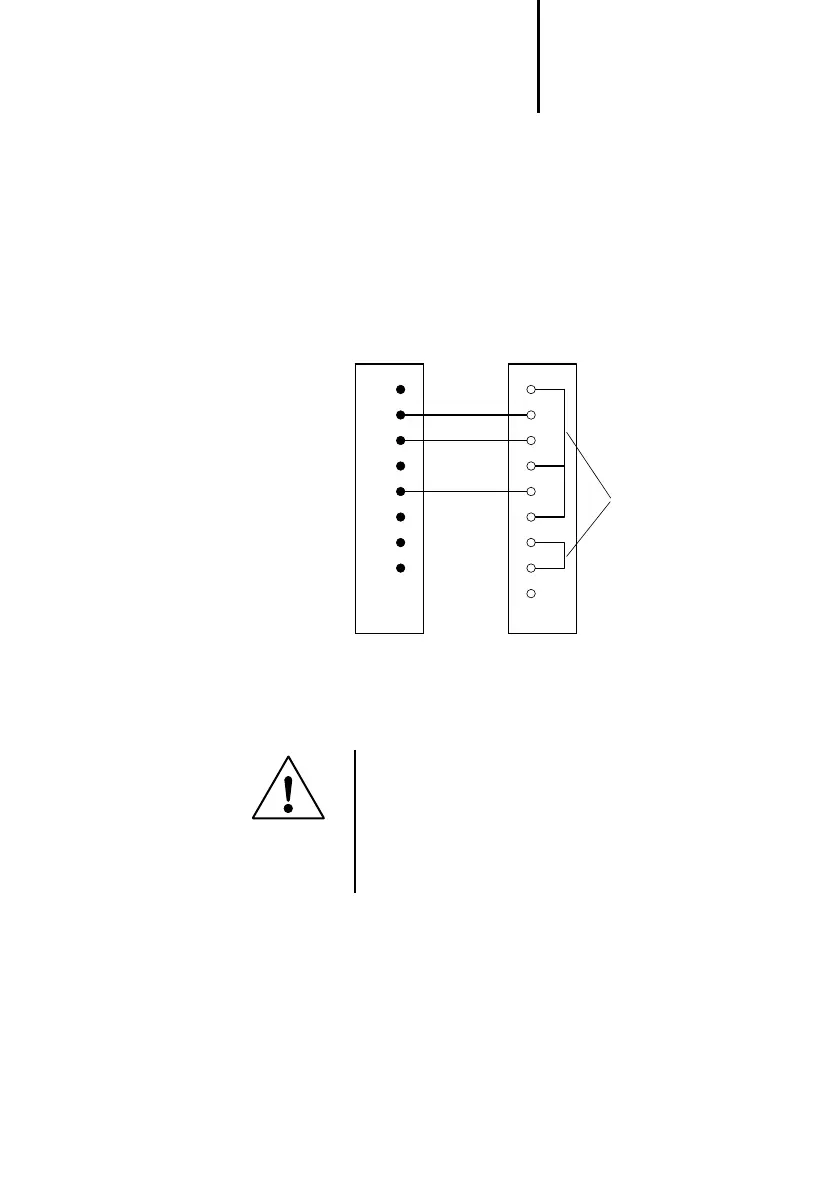

Figure 7: Pin assignment of the ZB4-303-KB1
programming cable
Jumpers
If identical ground potentials cannot be achieved,
either connect the PC to the mains supply via an
isolating transformer or use a laptop powered by an
internal battery.
PS4-201-MM1:
PRG interface
(8-pole. DIN pin
connector)
PC:
COM interface
(9-pole. socket)
5
2
3
1
2
3
4
5
6
7
8
9
햲
Warning!
In order to avoid potential equalization currents
between the PLC and the PC, devices attached
to the PRG and Suconet K interfaces must have
the same ground potential. If the ground
potentials differ, the interfaces can be destroyed.
