33
04/99 AWB 27-1184 GB
3 Mounting
Mounting on a top-hat
rail
Proceed as follows to mount the PLC on a top-hat
rail:
왘 Place the module on the top-hat rail so that the
top edge of the rail latches into the groove.
왘 Insert a screwdriver
into the slot of the sliding
clip and lever the clip down
.
왘 Press the module onto the top-hat rail
.
왘 Release the sliding clip. It will then snap into
position behind the top-hat rail.
왘 Check that the module is seated firmly.

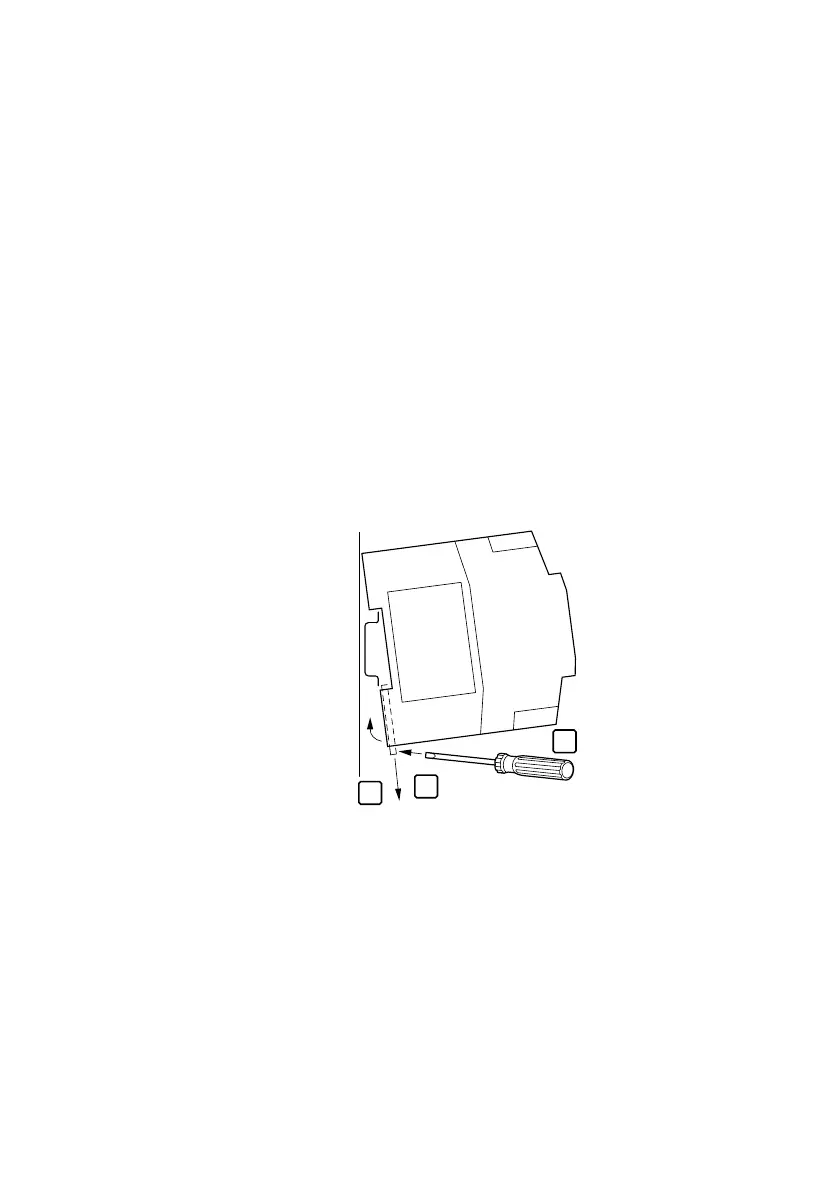

Figure 14: Mounting on a top-hat rail
1
2
3
