Configuration example with
local expansions
43
04/99 AWB 27-1184 GB
Defining input and output data
왘 First of all you must decide how many bytes an
intelligent slave should send to the master and
specify this number with the “Input data”
parameter in the master’s configuration. When
you later specify the slave’s own configuration,
you must specify the same number with the
“Output data” parameter.
왘 Now decide how many bytes the master is to
send to the intelligent slave and specify this
number as the “Output data” parameter in the
master's configuration. When you later define the
slave’s own configuration, you must specify the
same number with the “Input data” parameter.

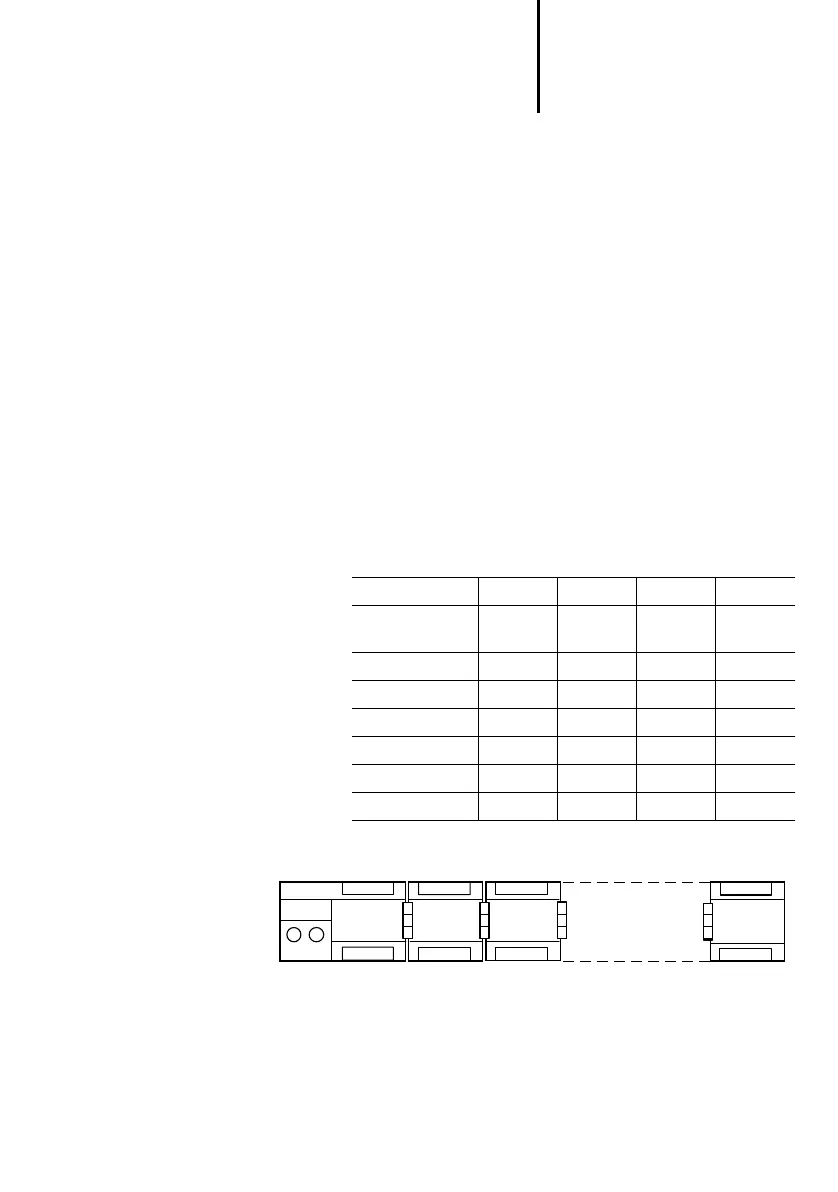

Configuration example
with local expansions
Table 5: Configuration with local expansion modules
Type Line Station Module Parameter
PS4-200 000Bus status:
master
1st LE4 001–
2nd LE4 002–
3rd LE4 003–
4th LE4 004–
5th LE4 005–
6th LE4 006–
PS 4-201-
MM1
6th LE2nd LE1st LE
