Software Configuration
38
04/99 AWB 27-1184 GB

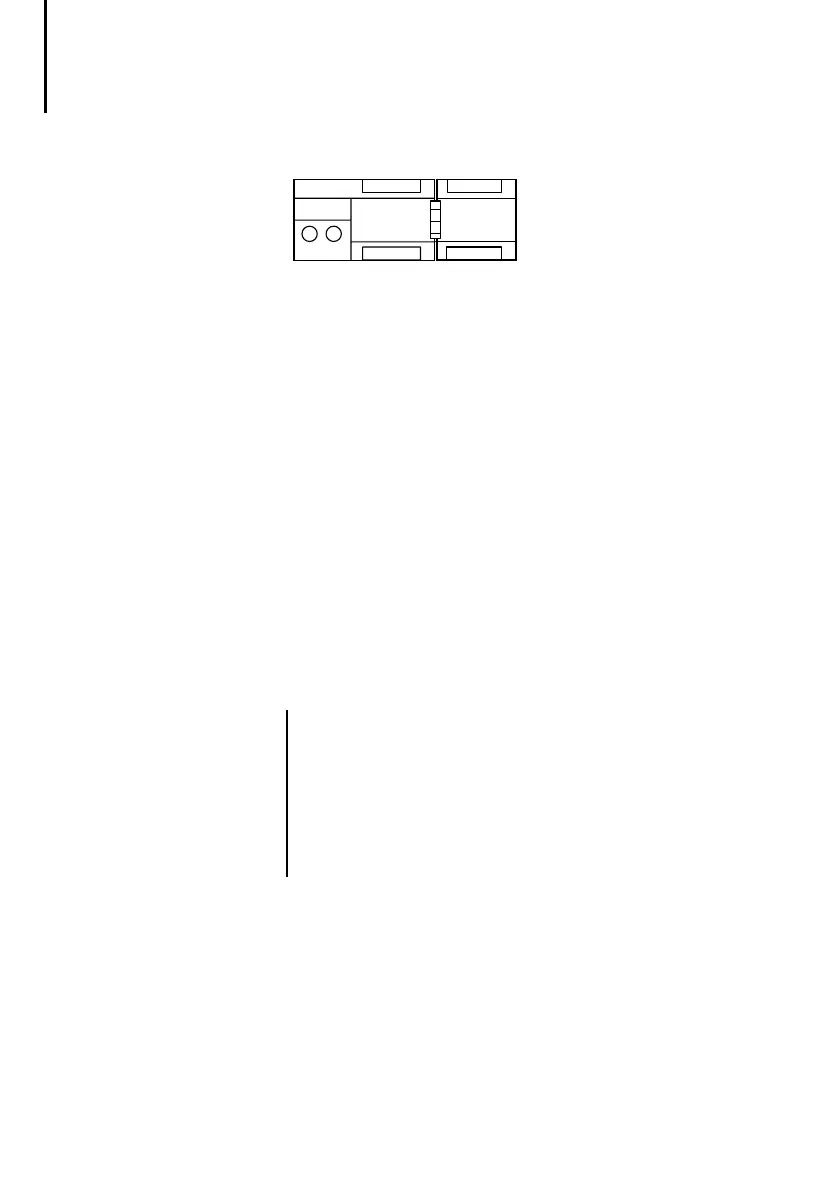

Figure 18: Slave configuration
Configuration of slaves for expanding the remote
inputs/outputs
Slaves for expanding the remote inputs/outputs are
configured in the master’s configuration file.
Configuring and setting
parameters
The configuration steps for the PS4-200 PLCs
described here differ according to the functions the
stations must perform:
Master
Intelligent slave
SCO (from PLC firmware version 05)
The table below shows how the various types of
station can be configured depending on their
functions. The fields which are not self-explanatory
are subsequently described in more detail.
LE 4-...
e.g. PS 4-201-MM1
Line
0
Station 0
Module 0
Module 1
“SCO” stands for serial communication. This
function allows the PS4-200 to exchange serial
data with a partner device via its Suconet K
interface (see also “Function block SCO” in the
manual “Language Elements of the
PS4-150/-200/-300 and PS416” in
AWB2700-1306GB, chapter 6).
