Topology configuration
procedure
37
04/99 AWB 27-1184 GB

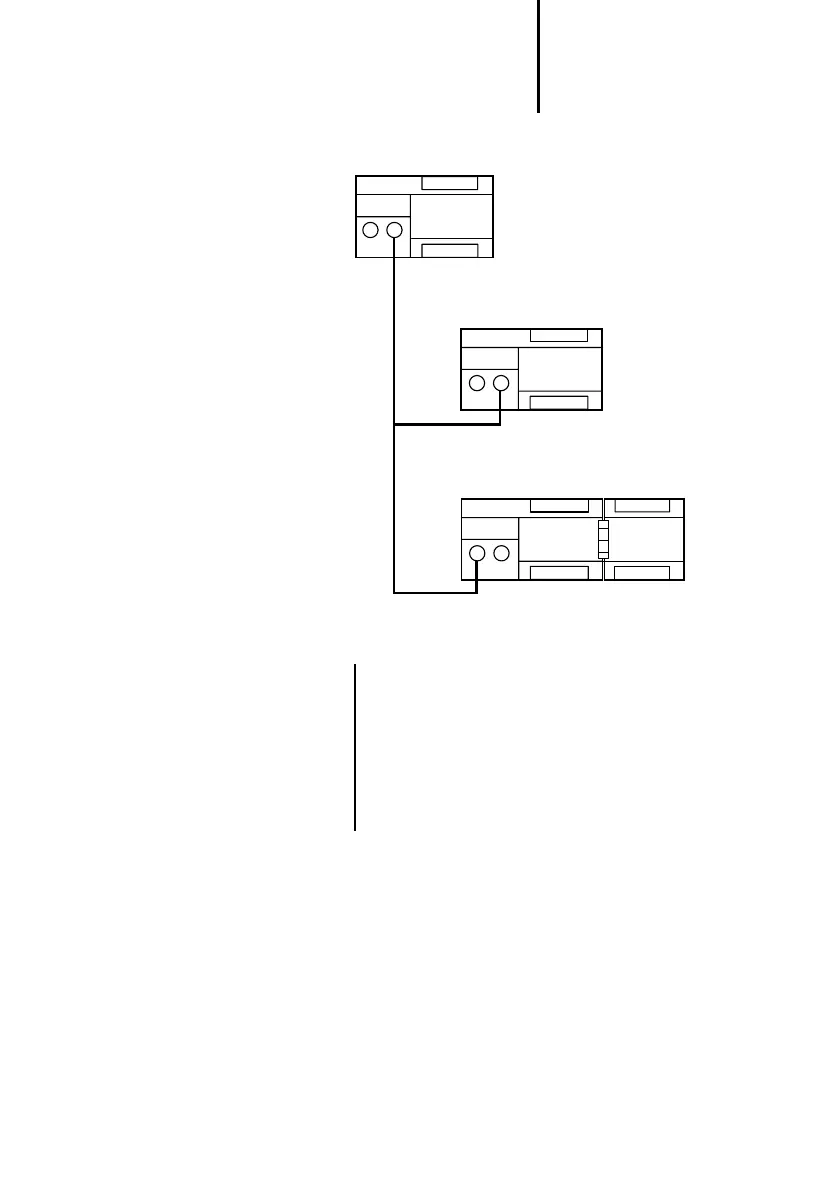

Figure 17: Master configuration
Configuration of intelligent slaves
All the local components of intelligent slaves are
configured in the slave’s configuration file. Their line
and station numbers are always 0. The modules are
numbered consecutively.
LE 4-...
e.g.
PS 4-201-MM1
e.g. PS 4-201-MM1
e.g.
EM 4-201-DX2
Station
1
Station
2
Line
0
Station 0
Module 0
Module 0
Module 1
Line 1
If intelligent Suconet K stations have local
expansion modules, you only specify the base
module (module 0) as a “network station” in the
master’s configuration. The local expansion
modules are specified in the intelligent slave’s
configuration but not in the master’s
configuration.
