Software Configuration
46
04/99 AWB 27-1184 GB
Table 6: Configuration of device A
Configuration of device B

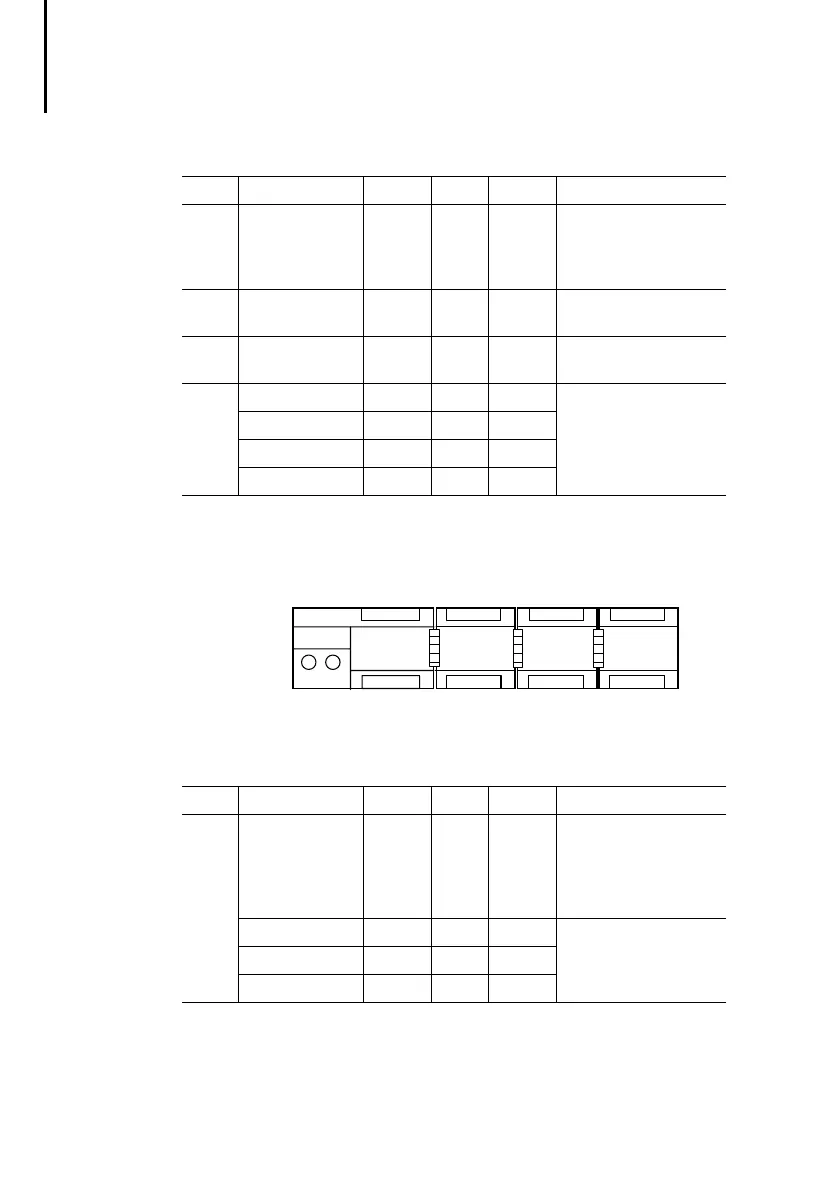

Figure 21: Configuration of device B
Table 7: Configuration of device B
Device Type Line Station Module Parameter
APS4-201-MM1000Bus status: master
Baud rate: 375 kBaud
CRC status for slaves
1to 3: OFF
B PS4-201-MM1 1 1 0 Input data: 20
Output data: 10
C PS4-151-MM1 1 2 0 Input data: 40
Output data: 38
D EM4-201-DX2 1 3 0 –
1st LE4 1 3 1
2nd LE4 1 3 2
3rd LE4 1 3 3
PS 4-201-MM1 LE 4-... LE 4-... LE 4-...
Device Type Line Station Module Parameter
BPS4-201-MM1000Bus status: slave
Slave address: 2
Input data: 10
Output data: 20
Remote control: OFF
1st LE4 0 0 1 –
2nd LE4 0 0 2
3rd LE4 0 0 3
