Slave Addressing
50
04/99 AWB 27-1184 GB
The general syntax rule is as follows:
Operand-data type-line-station-module-byte-bit
Example
You wish to scan the inputs of slaves 1 and 2 marked
in the diagram below.

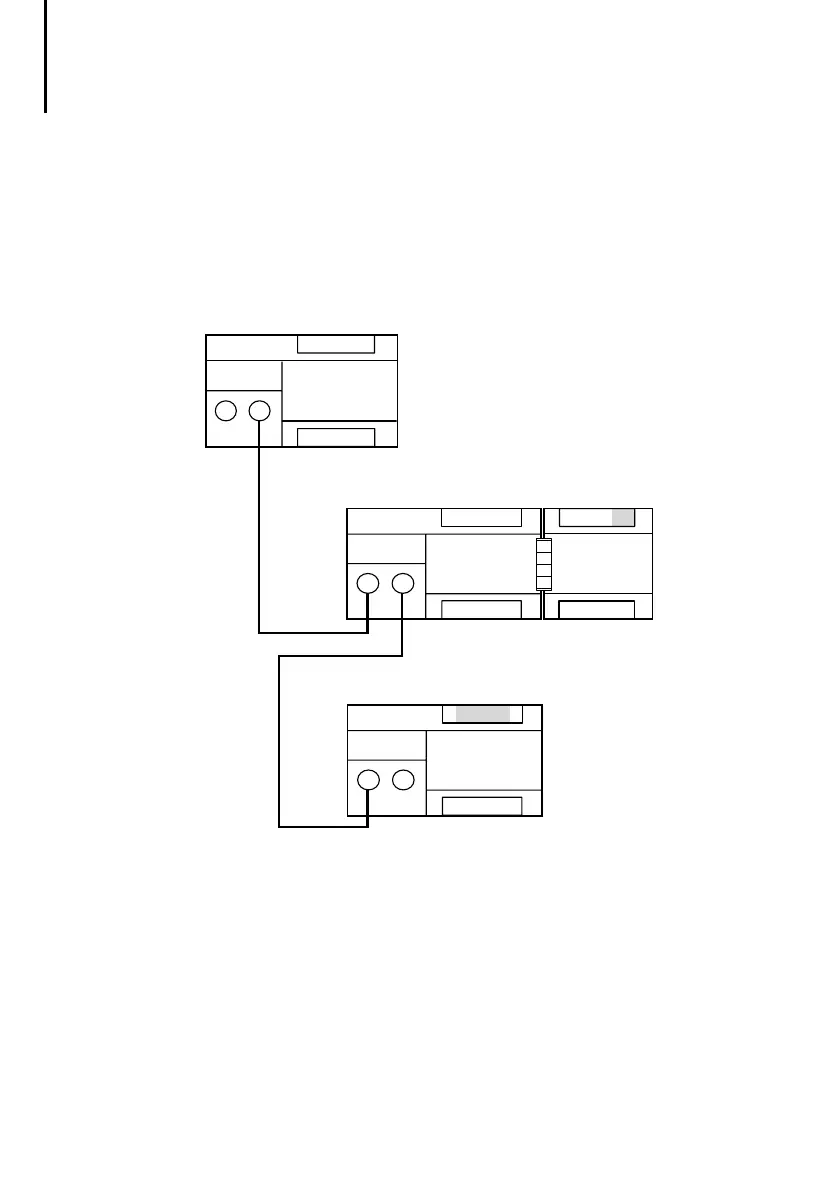

Figure 23: Configuration example for scanning the inputs
of remote slaves
You can derive the syntax for scanning the inputs
from the configuration:
EM 4-201-DX2
.7
EM 4-201-DX2
.0 ... .7
PS 4-201-MM1
LE 4-116-DX1
Line 1
Master
Slave 1
Slave 2
Line 1
