Moen M-CORE 4 Series How To Adjust

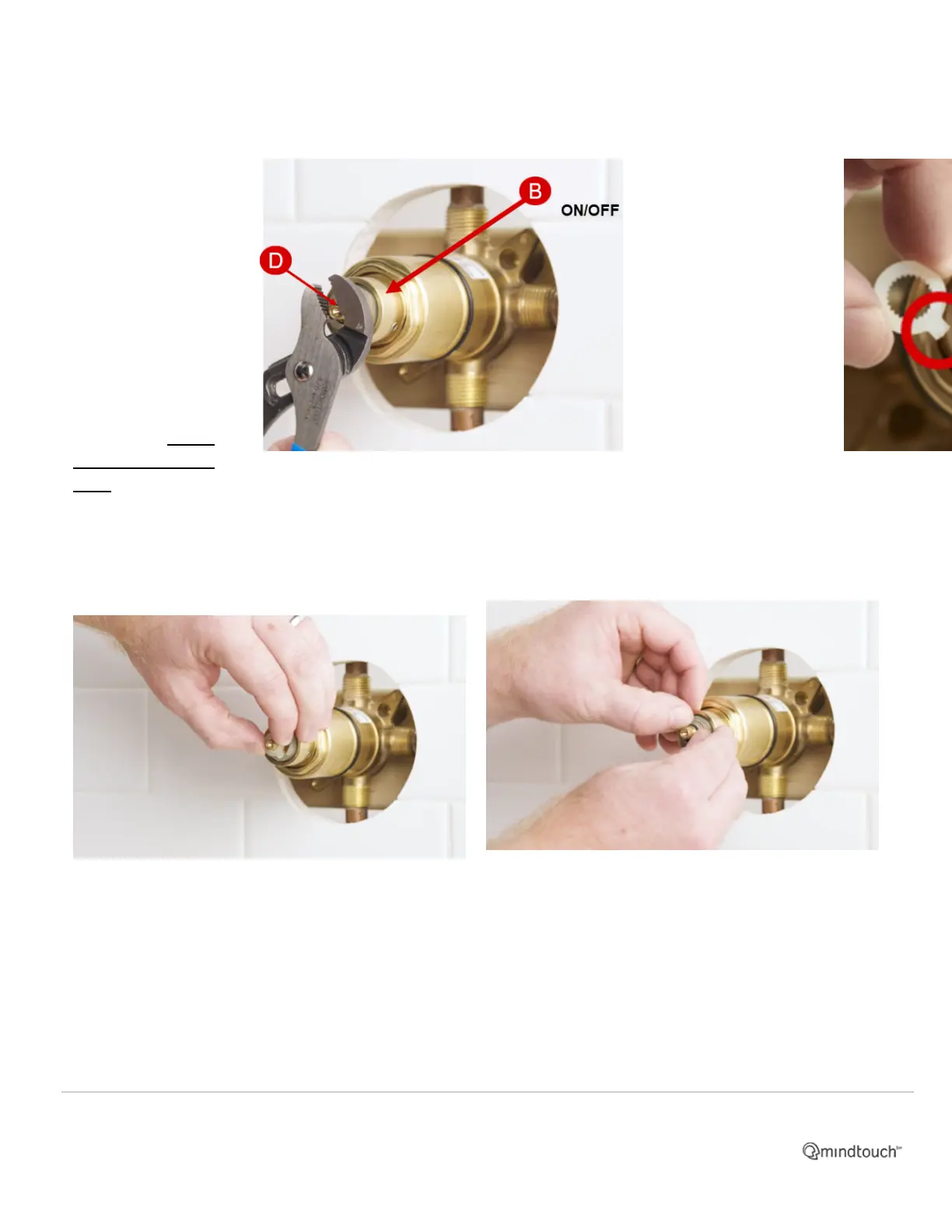

Rotate the Cartridge
Stem (D) until you
reach your desired
highest output
temperature.
• Rotate
Counterclockwise
for a warmer
water temperature
• Rotate Clockwise
for a cooler water
temperature
Once you reach this
temperature do not
move the Cartridge
Stem (D).
side of
the corresponding tab
on the Cartridge, and
slide the Temperature
Limit Stop on to
the Cartridge Stem
(C)-See images for
more details
Be careful not to
move the stem or you
will need to repeat
Step 3
5. Reinstall the Temperature Limit Stop at the desired
temperature.
6. Reinstall the Retainer Ring.
7. Rotate the Cartridge Ring (B) clockwise until it
stops.
8. Rotate the Cartridge Stem (C) clockwise until it
stops.
9. Slide the Lever on the assembly as far back as it will
go, and tighten the two Set Screws under the
Handle until secure.
