Moen M-CORE 4 Series How To Adjust

• Water is to hot- Move to Step 3
• Water is to cold-Move to Step 3
• Water is fine-
◦ Turn the Cartridge Stem (C) and Cartridge Ring
(B) clockwise until they stop.
◦ Slide the lever handle back on as far as it will
go.
◦ Tighten the two Set Screws under the handle to
secure it in place.

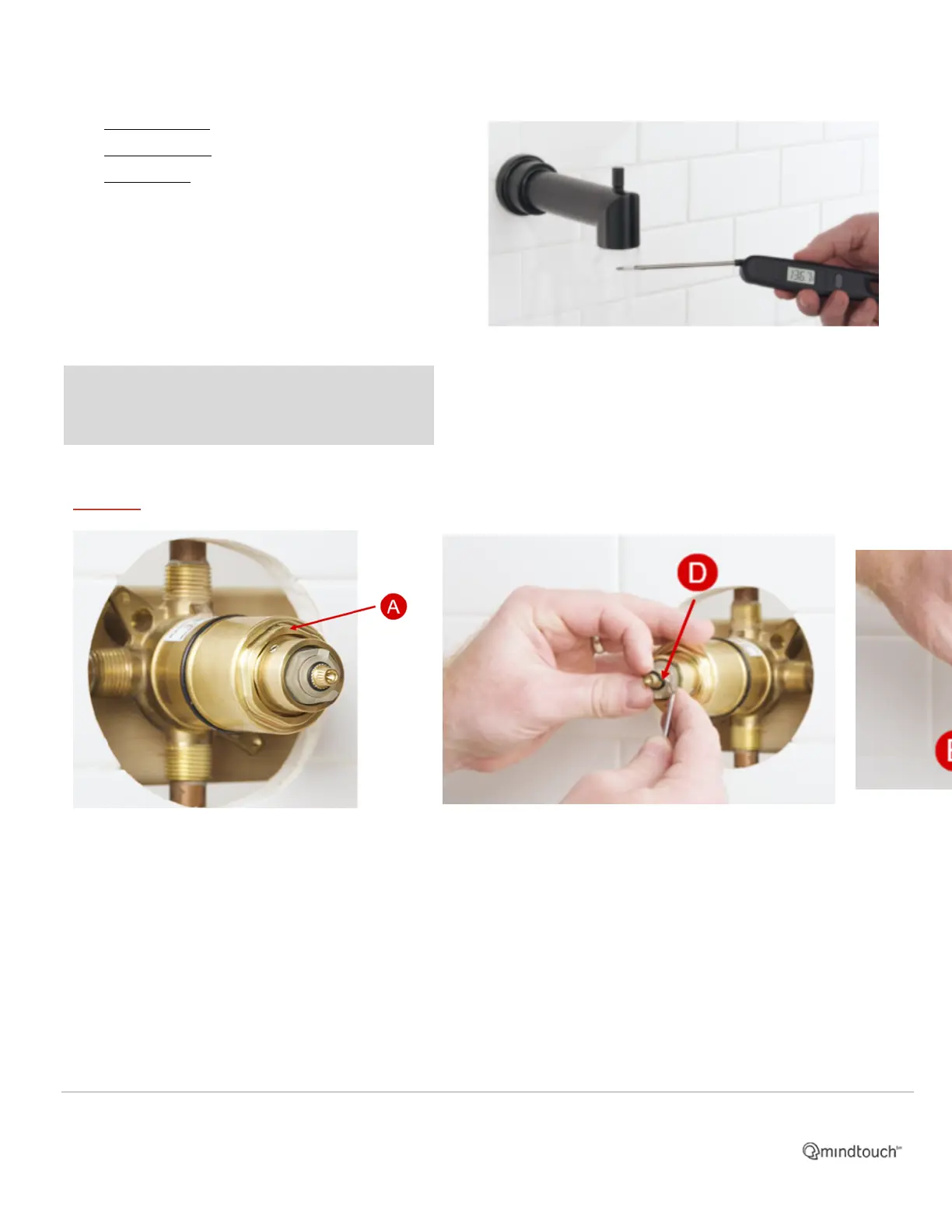

Step 3: Adjusting the Temperature Limit Stop
Caution: Do not loosen the Cartridge Nut (A).
1. Remove the Retainer Ring (D).
2. Remove the Temperature Limit Stop (
3. Modifying the
Water Temperature:
Turn the flow of water
on by rotating the
Cartridge Ring (B)
counter clockwise.
Find your
optimum temperature:
4. Now that you have
moved the Cartridge
Stem (C) to the
desired water
temperature (less
than 120°F/49°C). You
can align the tab on
the Temperature
Limit Stop to the left
https://solutions.moen.com/Article_Library/How_to_Adjust_the_M-Core_4_Series_Temperature_Limit_Stop
Updated: Fri, 28 Jun 2024 08:16:22 GMT
Powered by
4
